Description

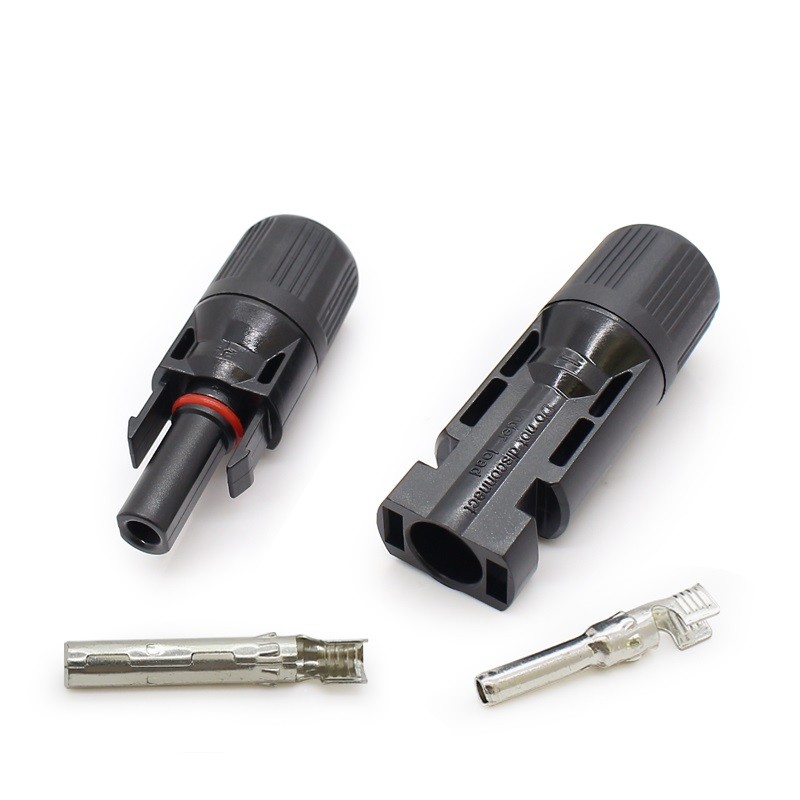

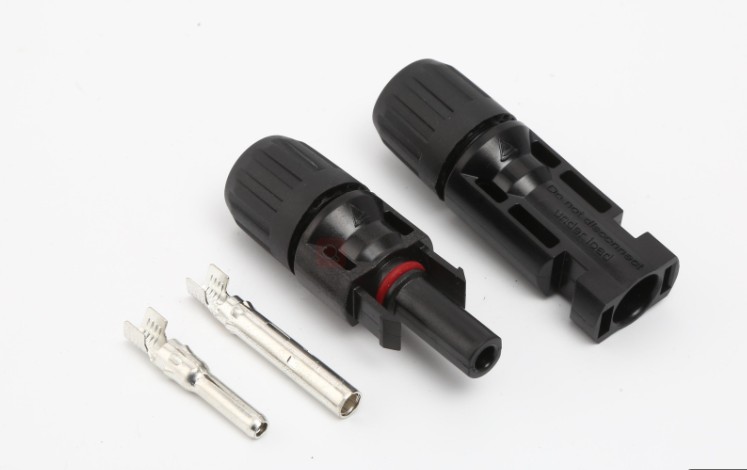

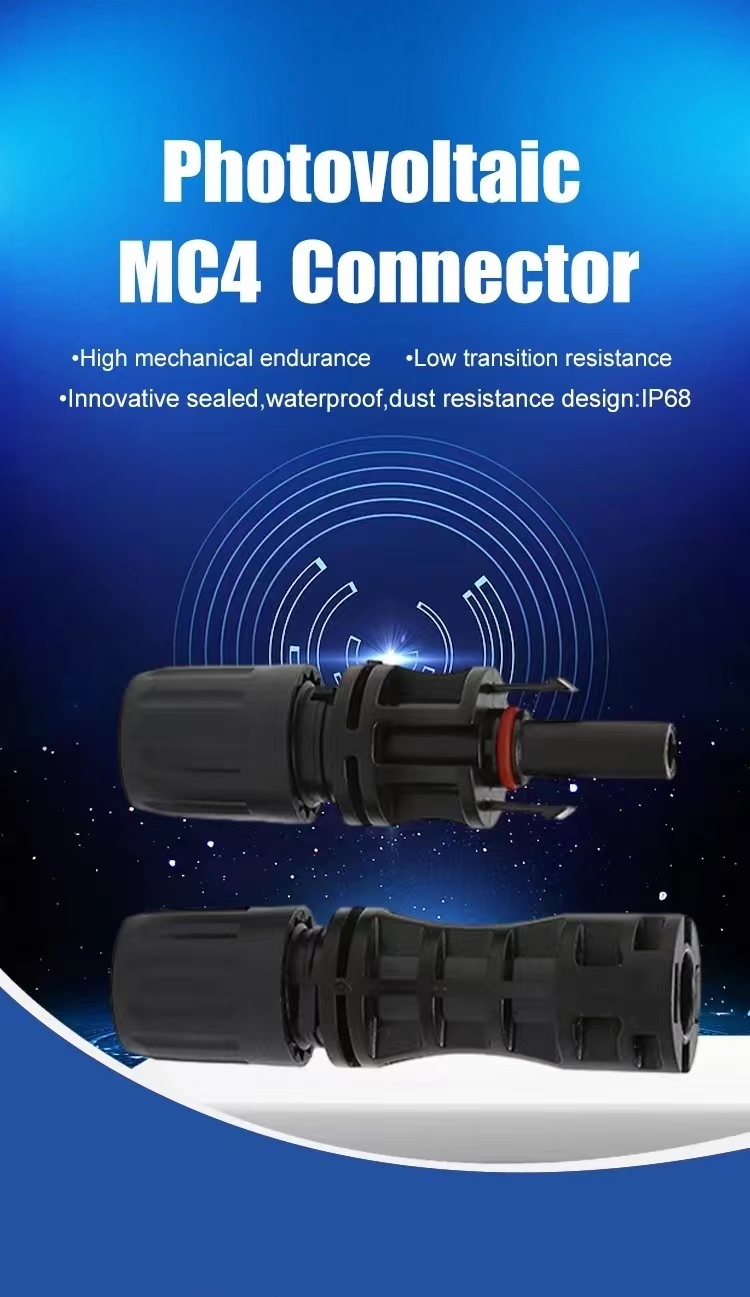

1000V MC4 connector for 2.5mm2~6mm2 TUV approval
Product No.:PV-C-1000
UV resistance Quick and easy installation Multil Contract Free Sample
Advantage:
- Compatible with 800+ solar module connectors
- Standard thickness 0.4 terminals
- TUV approved & Quick and easy to install

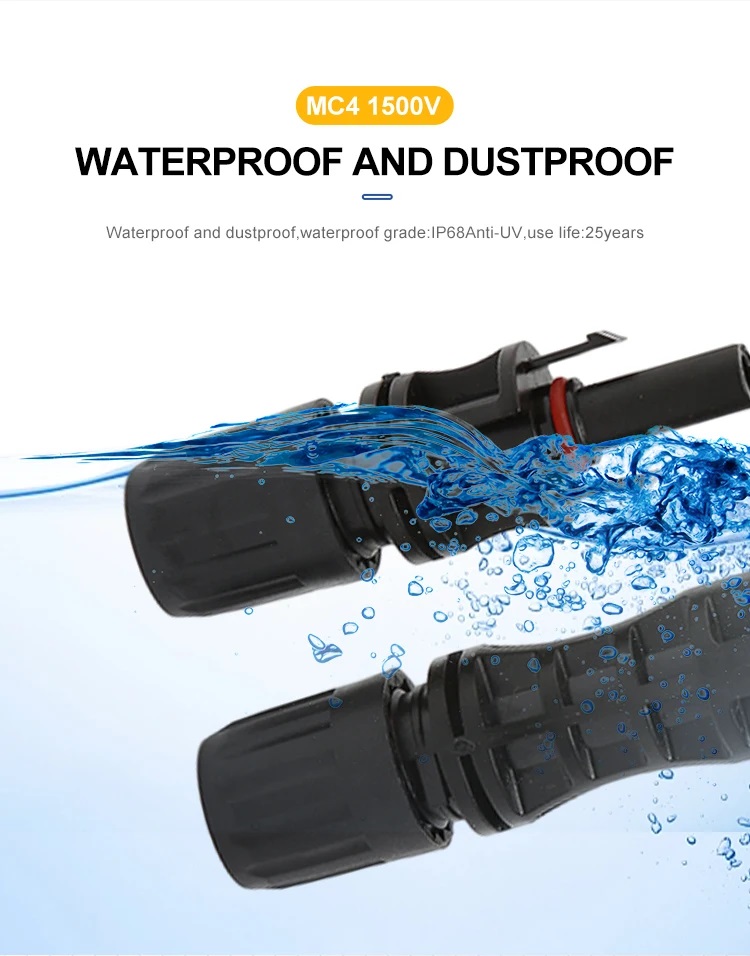

- Protection class IP67 Suitable for outdoor harsh environments
- Stable connection & Reducing maintenance cost
- Multiple plugging and unplugging cycles
- Accommodates PV cables with different insulation diameters
- High current carrying capacity
Specification

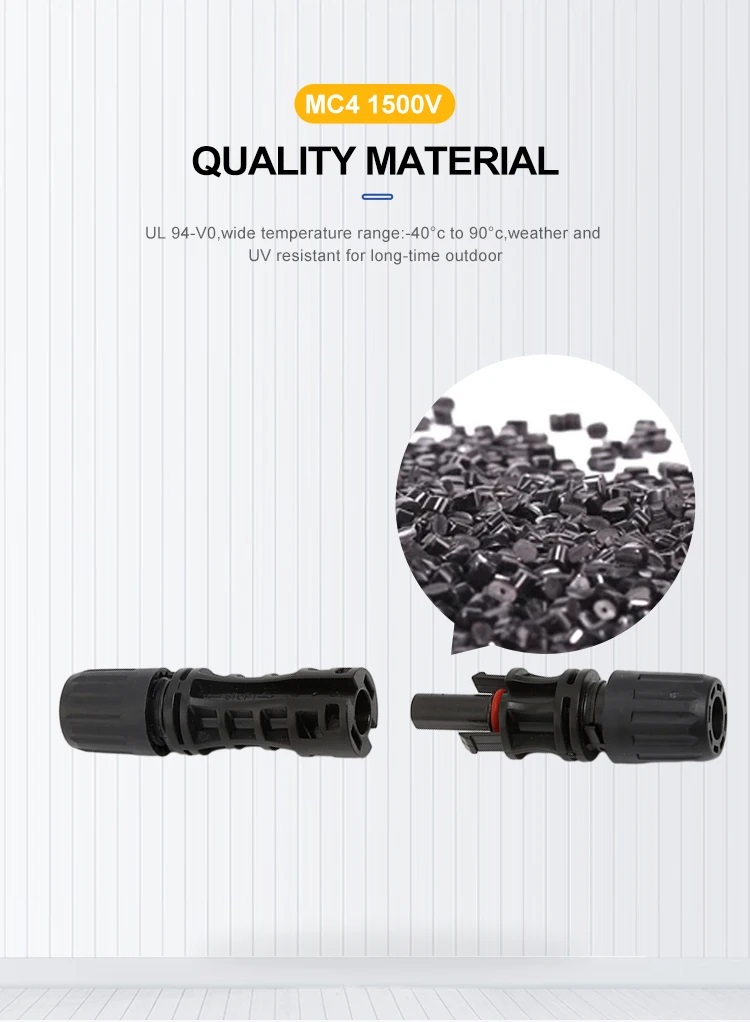

Housing material:
PPO Material
Contact material:
Copper with tin plated
Suitable for cable corss section:
2.5MM²~6.0MM²
Resistance:
Less than 0.3 mΩ
Waterproof:
IP67

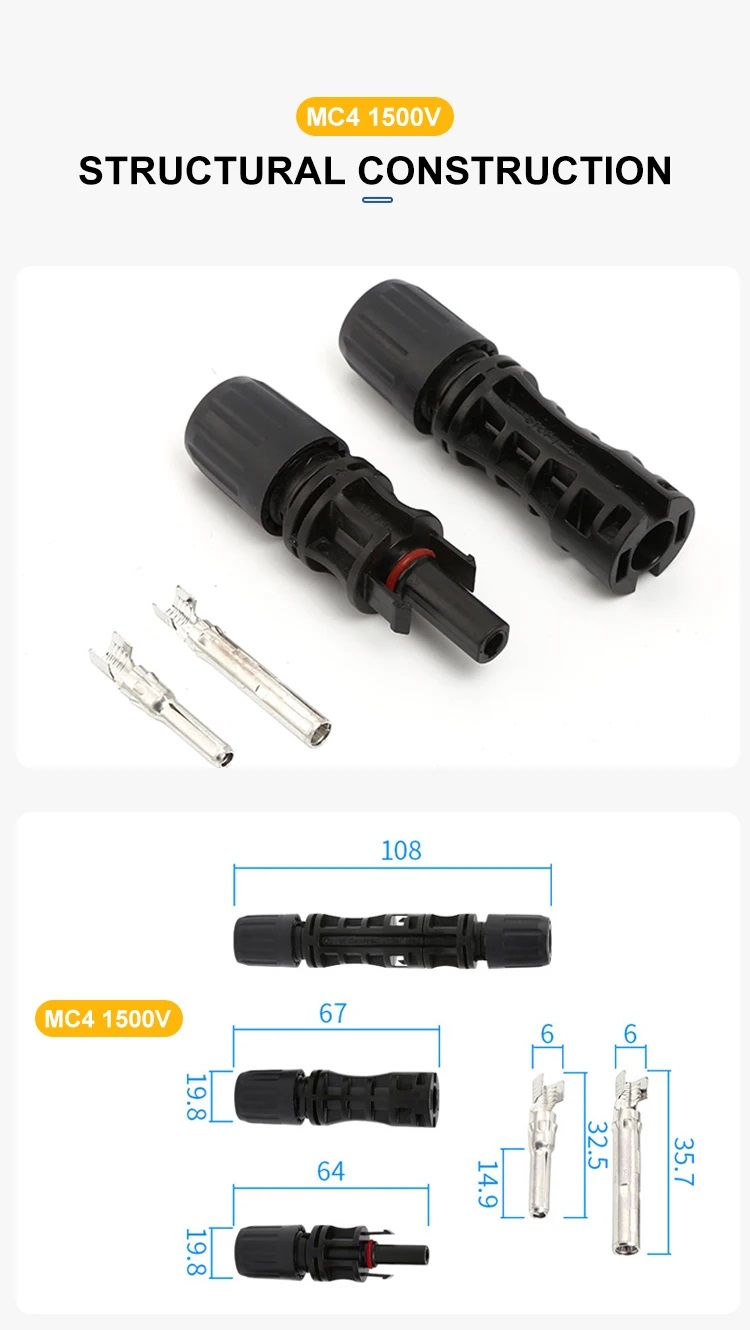

Pin dimensions:
Ø4mm
Flame class:
UL94-V0
Rated Voltage:
TUV 1000V DC/UL 600V DC
Rated Current:
20A-30A
Protection Class:
Class II
Pollution Degree:
2

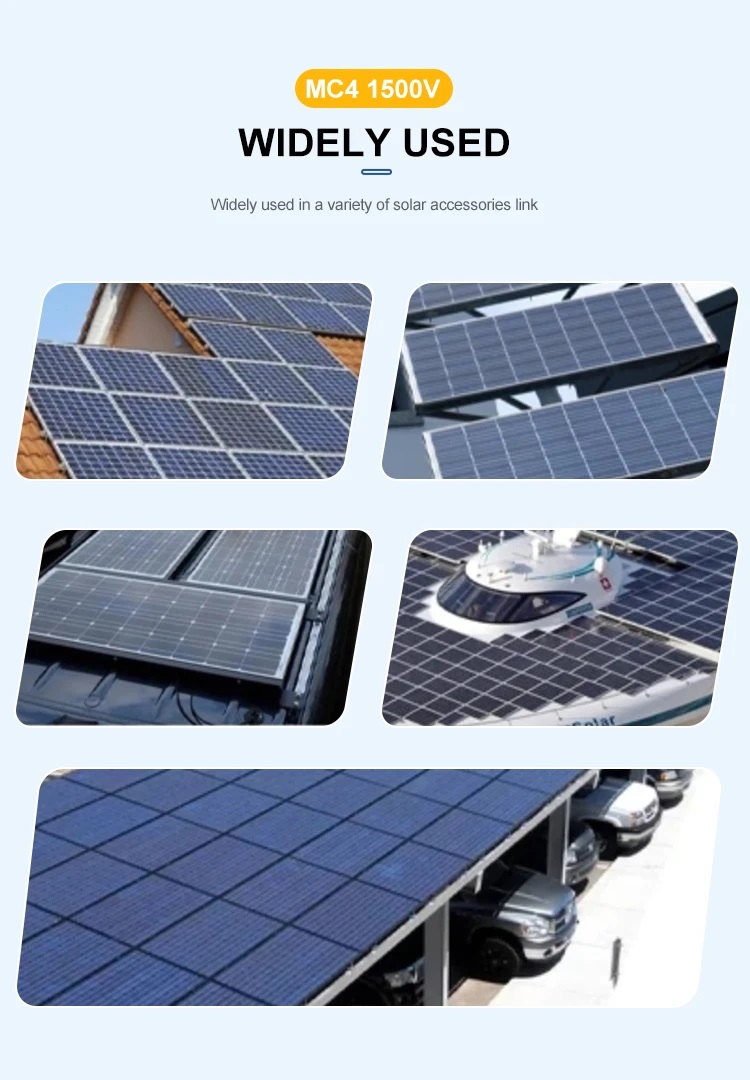

Widely used

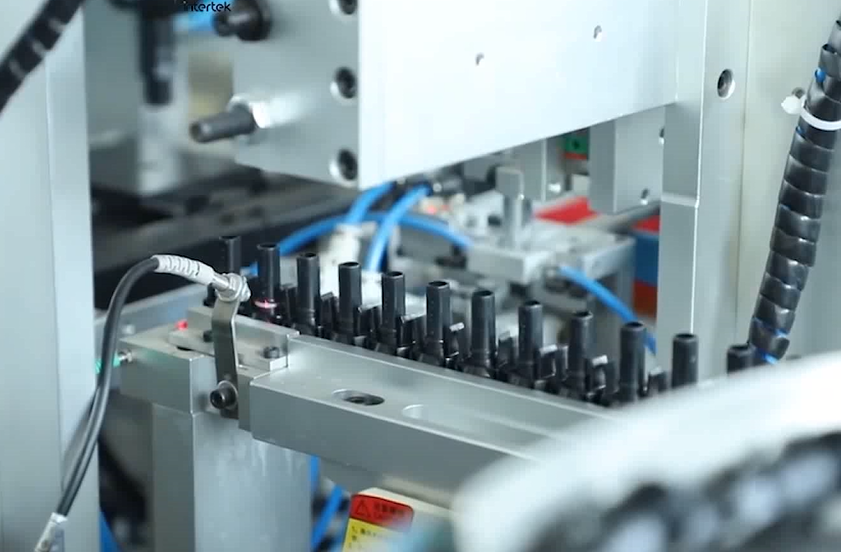

Here you can see Auto production of MC4 connector Video.
Click the picture to visit.
Our Team
FAQ

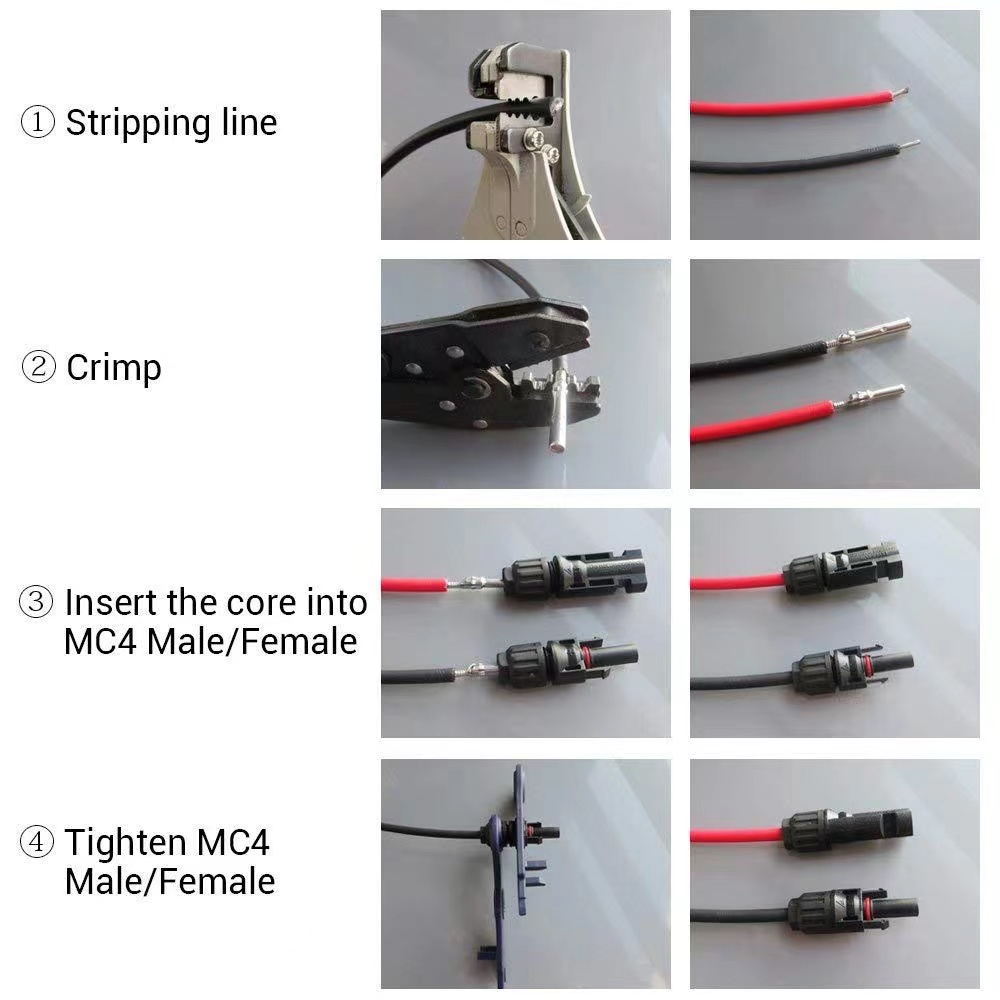

1.How to connect MC4 to PV wire
Contact us!
You will get your Free quote in 1 hour. Free sample delivery in 7days.
