Description

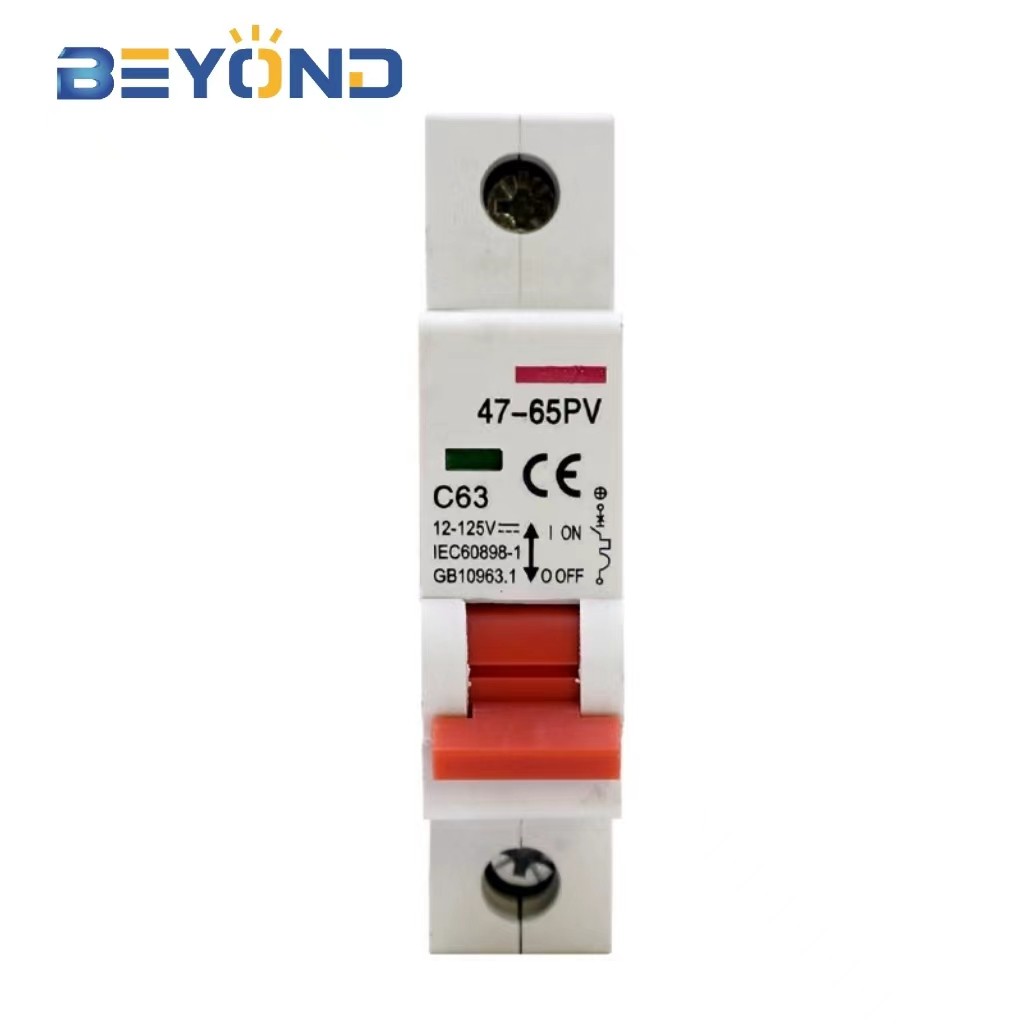

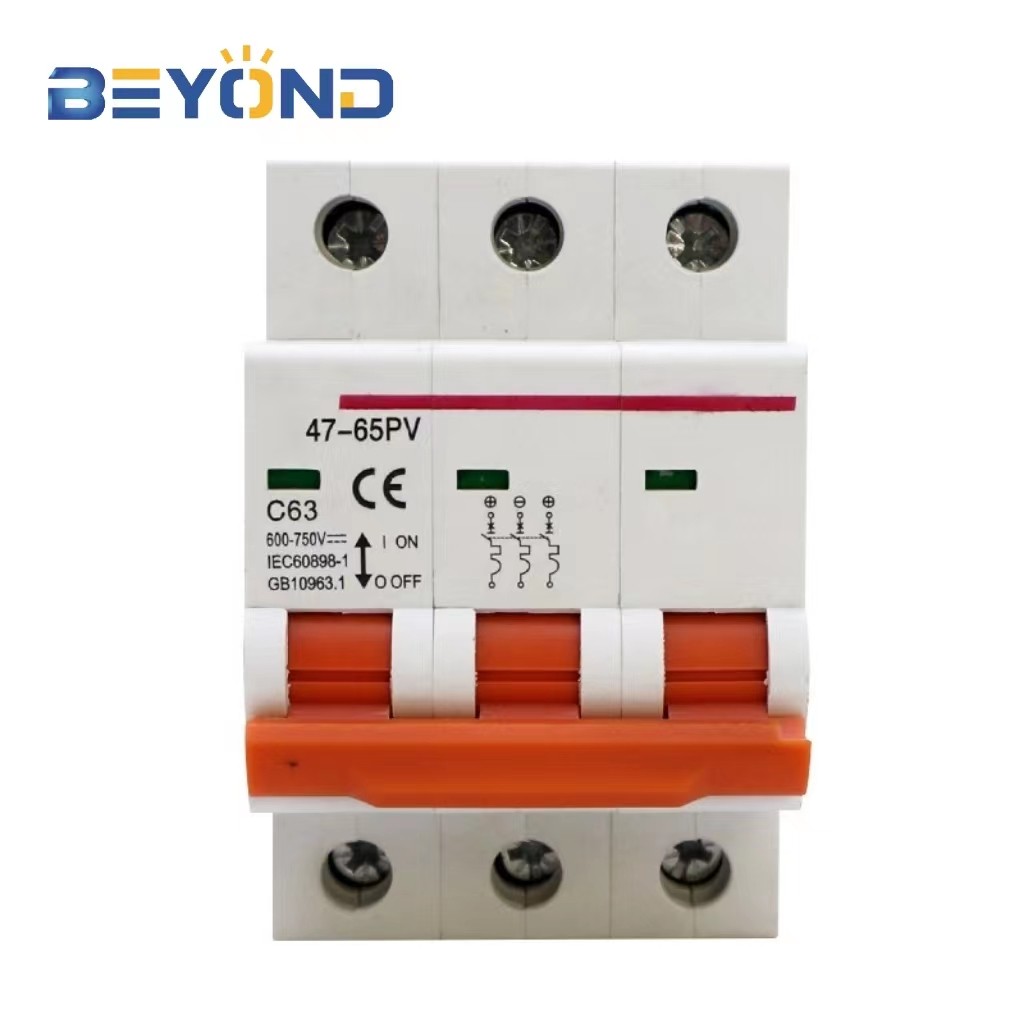

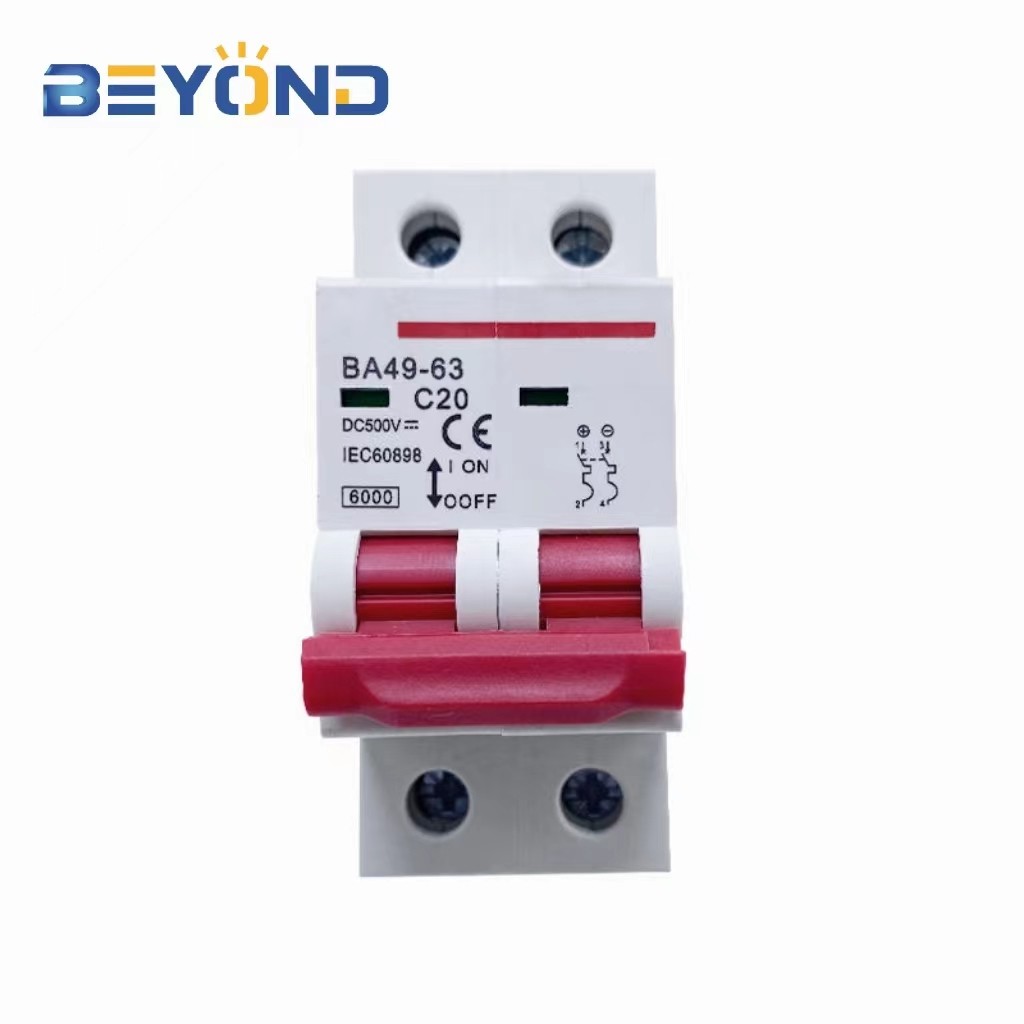

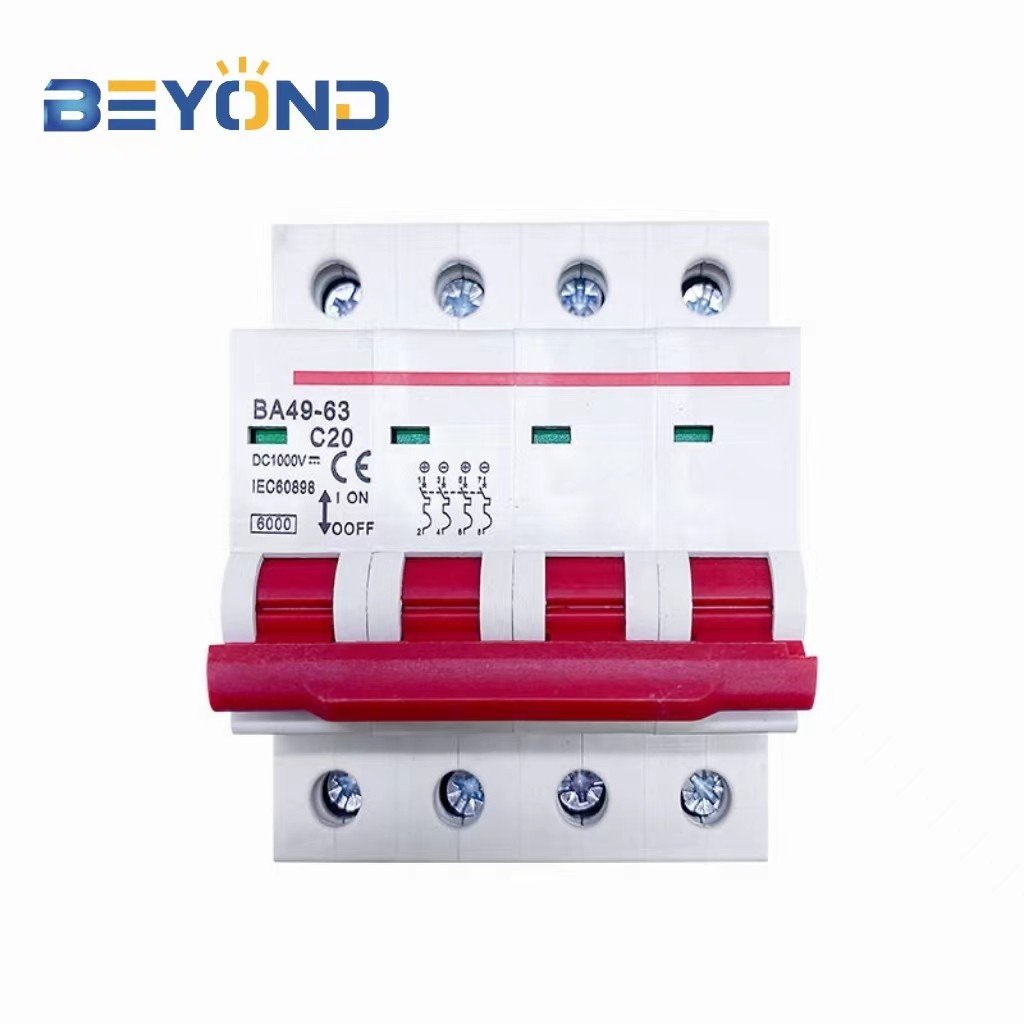

PV Solar DC MCB Mini Circuit breaker 1P 2P 3P 4P 230V-1000V 10A-63A
PV DC breaker supplementary protectors are designed to provide overcurrent protection within appliances or electrical equipment, where a branch circuit protaction is already providedd or not required. Devices are designed for direct current(DC) control circuit applications.
DC MCB Application:
XL7-63 Solar system DC MCB,apply to rating current 63A or less, It is mainly used for the overloading and short circuit protection in DC distribution system equipment and electric equipment. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields.
DC MCB Features:
1. Thermoplastic shell, full inlet, impact resistant, recyclable, self extinguishing.
2. Super safety:classic U tunnel terminal, to ensure that the line connection is solid and reliable.
3. The original air flow, can effectively reduce the temperature between adjacent circuit breaker.
4. Safety handle, classic original design, ergonomic.
Specification
| pole: | 1P,P+N,2P,3P,3P+N,4P |
| Rated Voltage: | 230/400V |
| Rated Insulation Voltage: | 1000V |
| Rated Current(A): | 1,2,3,4,6,10,16,20,25,32,40,63 |
| Rated Impact Voltage(KV): | 6 |
|
Biggest Bolck Ability(KA): |
6 |
| Instantaneous Tripping Charcteristics: | C |
|
DIN rail(mm): |
35 |
| Working temperture(℃): | -25-40 |
| Standard: | IEC60947-2 GB14048.2 |
