32A 500V PV DC disconnect switch

Product Item：LQX-C32.2

Equipped with a reliable DC module for maximum protection of photovoltaic DC circuit breakers

Suitable for photovoltaic solar panel grid connection system and solar off-grid system solar power system

Installed between the solar panel and the solar inverter

500V solar PV DC combination box

Description

32A 500V PV DC disconnect switch

specification:

Easy to Install
500V solar photovoltaic DC combiner box, installed between the solar panel and the solar inverter, can achieve faster and safer installation, plug and play.
Material: Polycarbonate, ABS
Input: 1 String
Output: 1 String
Maximum Voltage: 500V
Maximum DC Short Circuit Input Current Isc: 32A, replaceable.
Protection Grade: IP65
Product Size: Approx. 120 x 55 x 90mm / 4.72 x 2.17 x 3.54in
Cable Inlet: M20 6mm*2
Output Cable Gland: M20 6mm*2
Rated Insulation Voltage Ui: 500V, Rated Current Le: 32A
Maximum Working Voltage Ucpv: 500V, Rated Working Voltage: 500V

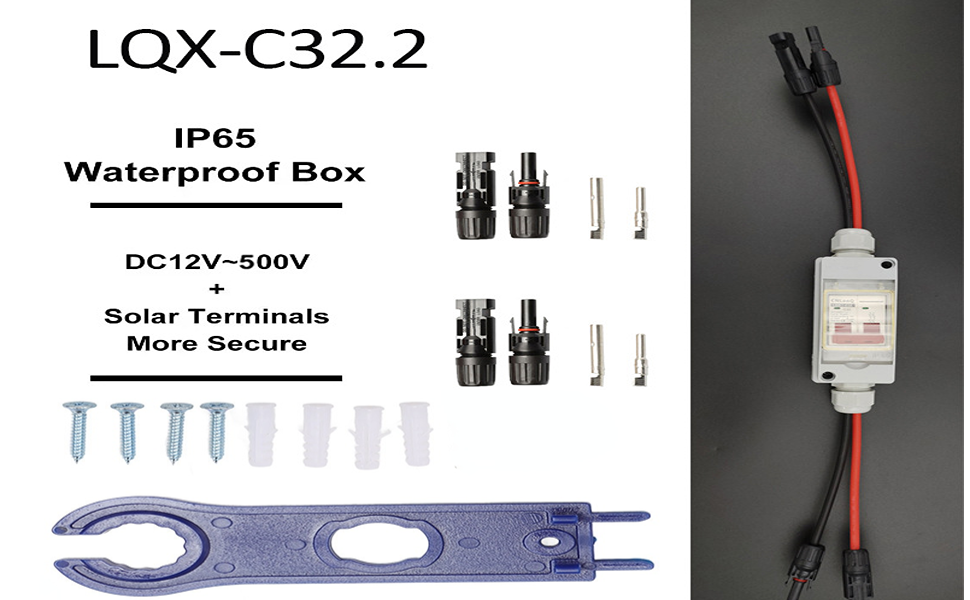

Package List:

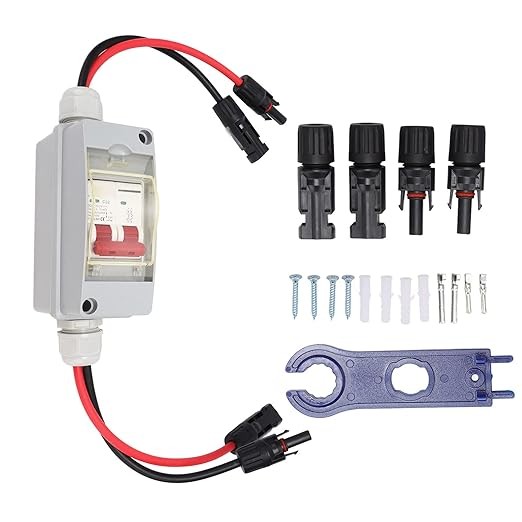

1 x Circuit Breaker, 4 x Connector (2pcs male connector, 2pcs female connector), 4 x Core, 4 x Screw, 4 x Wall Plug, 1 x PV Wrench, 1 x User Manual.

DC Miniature Circuit Breaker

Breaker Protector for Solar PV System and RV

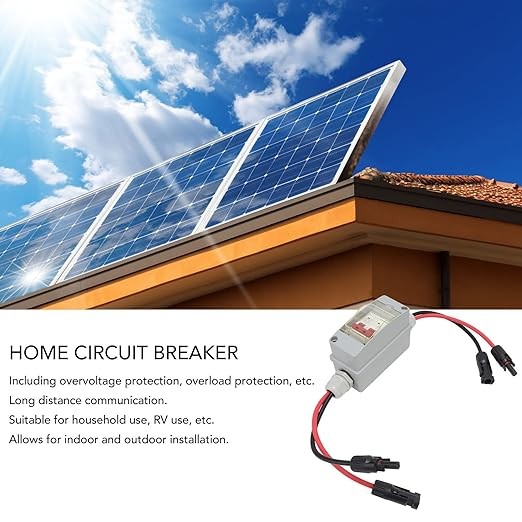

Safe Protection

Includes overvoltage protection, overload and lightning protection functions, which can provide long distance communication and extend the working

life of the solar system.
The Reliability: The disconnector is allowed to be installed indoors and outdoors, with built in DC switchgear, which can be effectively protected in

severe weather and environment.

Great in Design

Equipped with the reliable DC module to maximize the protection of photovoltaic DC disconnector, and the transparent cover is also convenient for

checking the status of the circuit breaker.

Extensive Using

Applicable to photovoltaic solar panel grid connected system and solar off grid system solar power generation system. Also for household, RV, etc.
