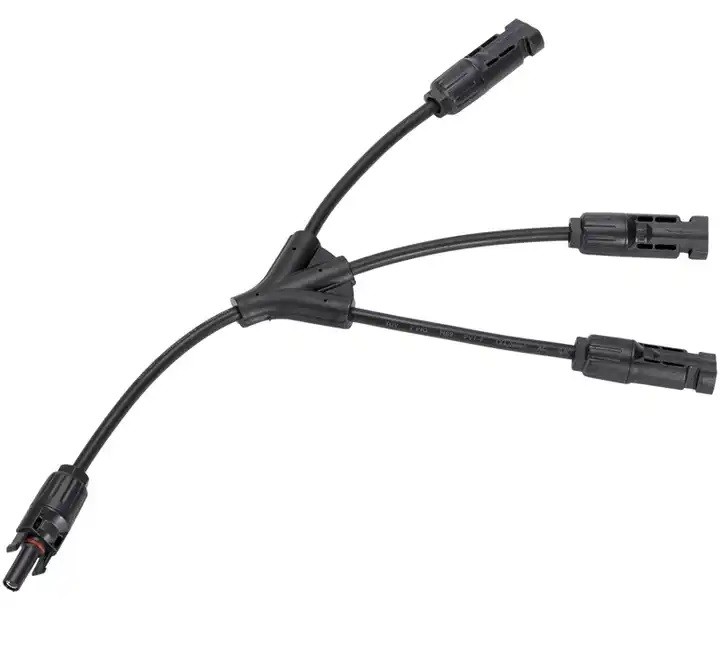

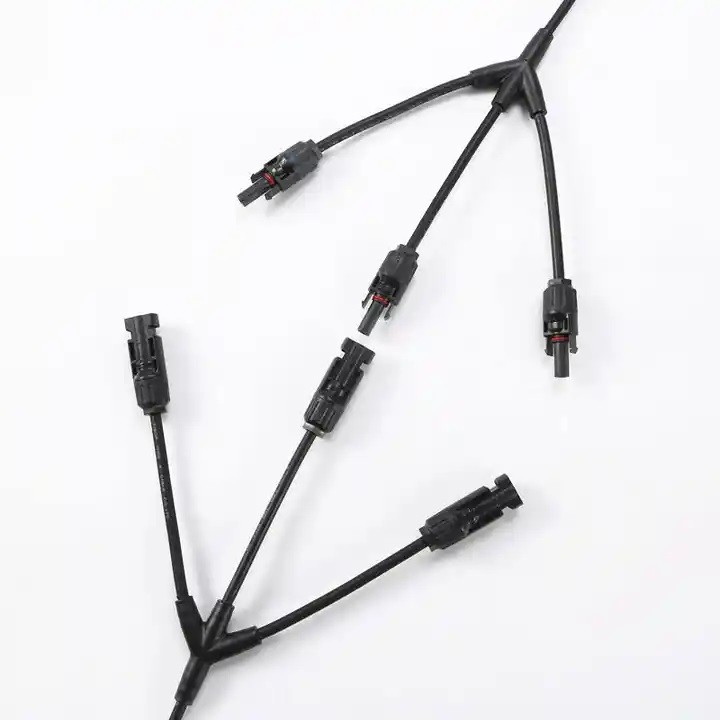

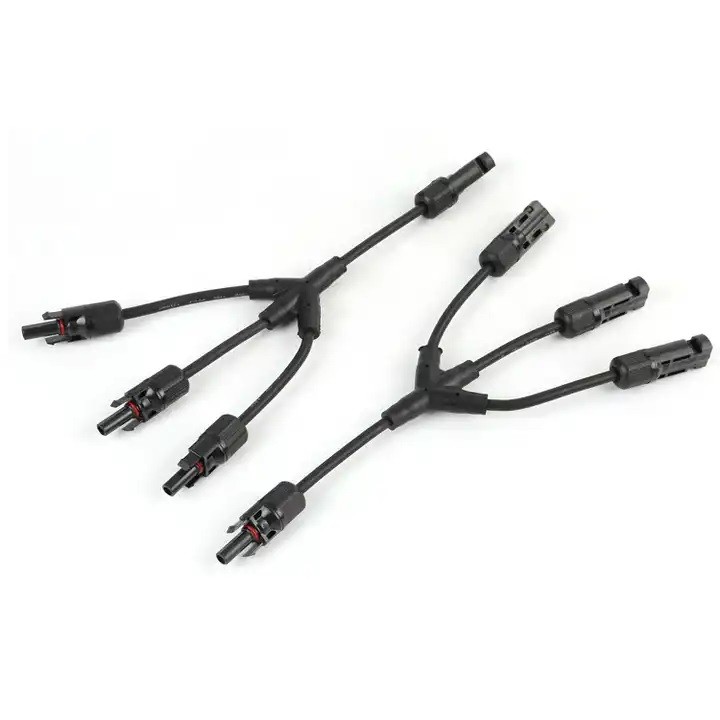

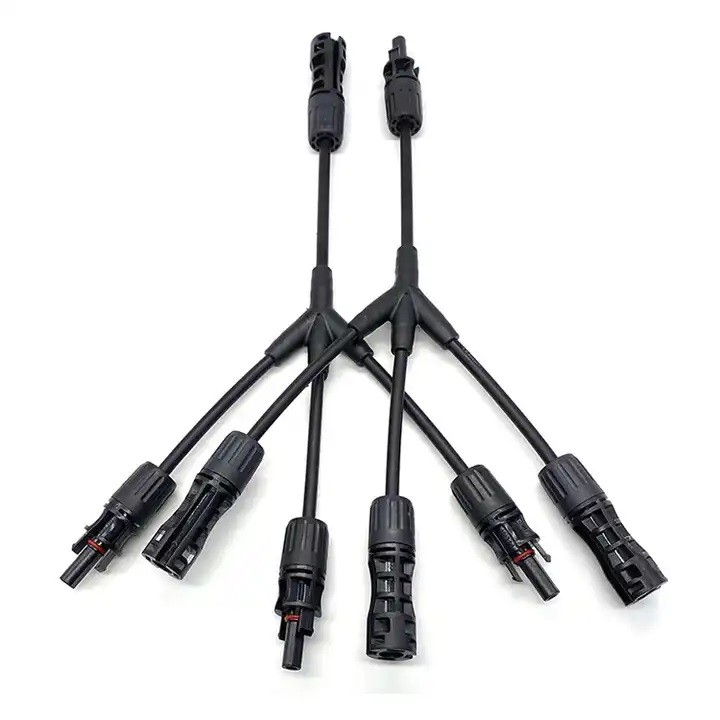

  • 1000V MC4 Y branch connector 3 to 1 Parallel IP67with 4mm2 cable
  • 1000V MC4 Y branch connector 3 to 1 Parallel IP67with 4mm2 cable
  • 1000V MC4 Y branch connector 3 to 1 Parallel IP67with 4mm2 cable
  • 1000V MC4 Y branch connector 3 to 1 Parallel IP67with 4mm2 cable
1000V MC4 Y branch connector 3 to 1 Parallel IP67with 4mm2 cable 1000V MC4 Y branch connector 3 to 1 Parallel IP67with 4mm2 cable 1000V MC4 Y branch connector 3 to 1 Parallel IP67with 4mm2 cable 1000V MC4 Y branch connector 3 to 1 Parallel IP67with 4mm2 cable

1000V MC4 Y branch connector 3 to 1 Parallel IP67with 4mm2 cable

  • Product Item:PV-Y3-1500
  • Waterproof: IP67
  • Rated Current:20A-30A
  • Temperature Range:-40˚C~+85˚C
  • Contact:Tin-plated copper
  • MC4 T Y branch
    Inquiry Send Email

    Description

    MC4 Y branch connector 3 to 1 Parallel IP67with 4mm2 cable

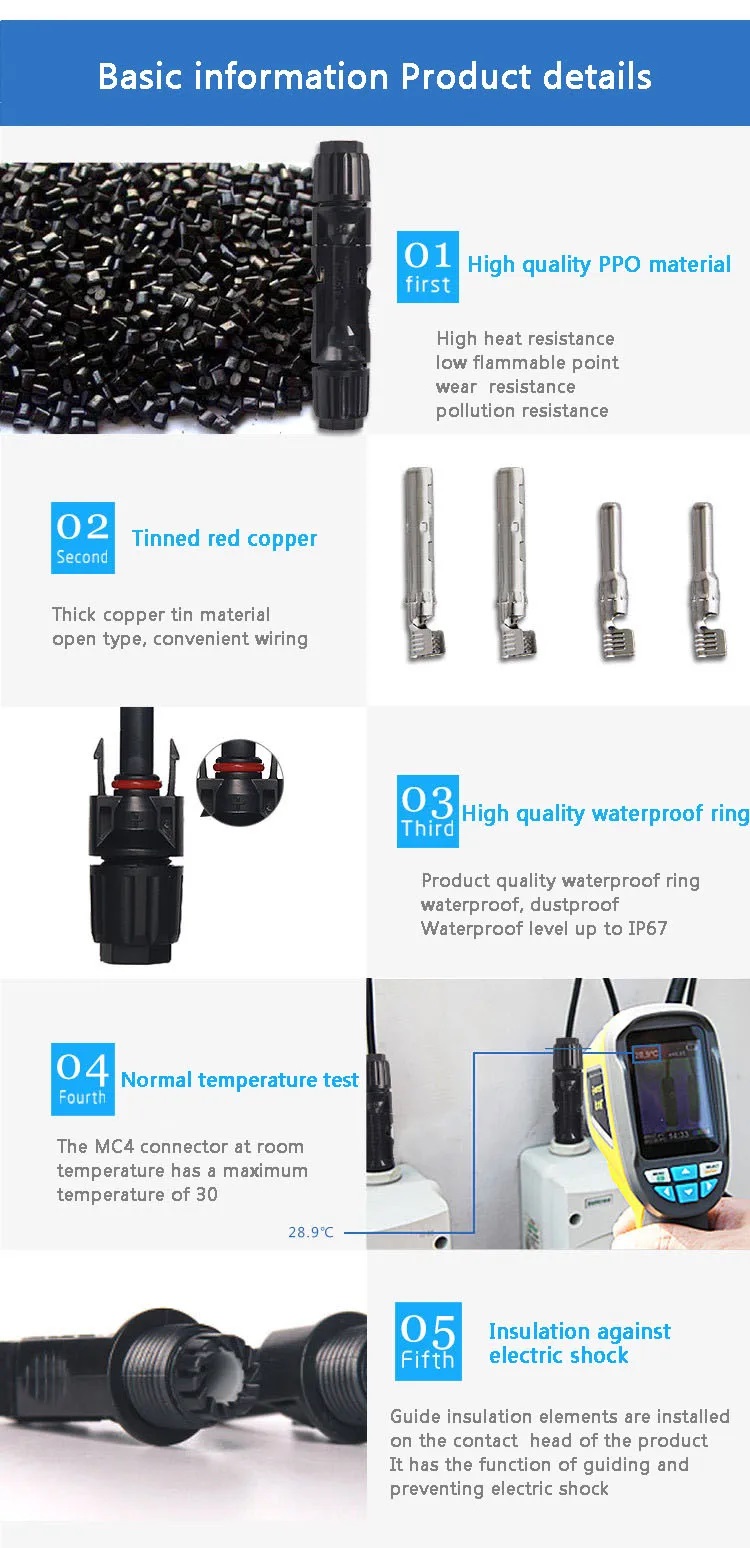

    Feature:

    Simple on-site processing. Acomodates PV cable with different insulation diameters. Mating safety provided bykeyed housings. Multiple plugging and unplugging cycles . High current carrying capacity. TUV and CE approved.


    Specification

    Contact: Tin-plated copper
    Waterproof: IP67
    Connector material: 100% PPO
    Rated Voltage: TUV1000V DC
    Rated Current: 20A-30A
    Pin Dimension: 4.0mm
    Proof Voltage: 6000V AC(1min) 2200V DC(1min)
    Temperature Range: -40˚C~+85˚C
    Flame Class: UL94V-0
    Resistance: ≤5mΩ
    Pollution degree: 2
    Protection Class: Class II
    Class Size: 4mm2

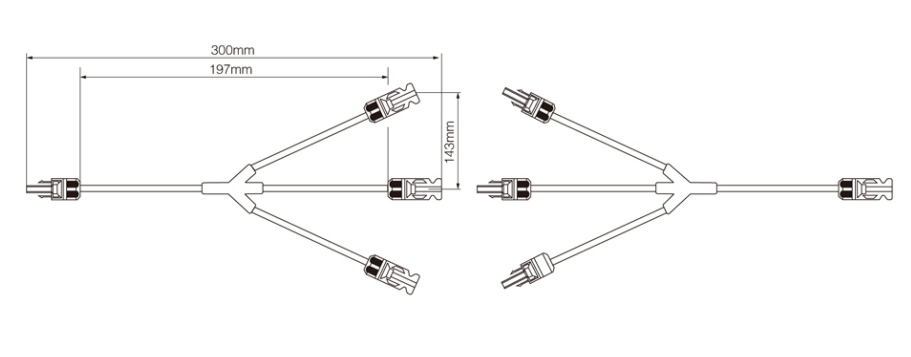

    Length: 30cm

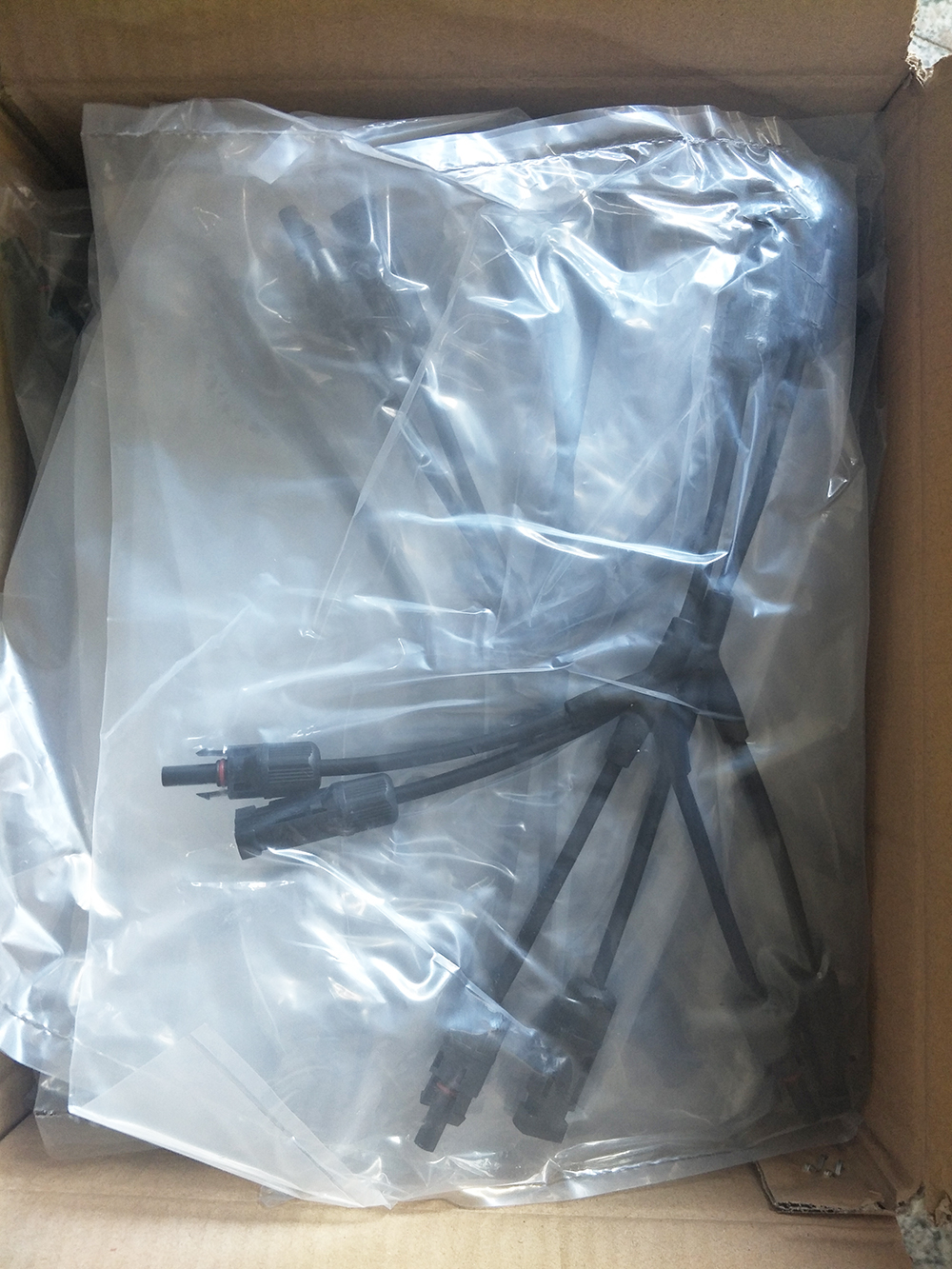

    Packing:

    50 pair/cartons     10.5kgs










    Contact us!
    You will get your Free quote in 1 hour. Free sample delivery in 7days.
    Sales: Molly Liang
    Email/skype:Molly.l@beyondsolar.cn
    Whatsapp:+86-18576852516







    Inquiry Us





    Related Products

    1500V MC4 T branch connector 4 to 1 Parallel solar cable connector

    1500V MC4 T branch connector 4 to 1 Parallel solar cable connector

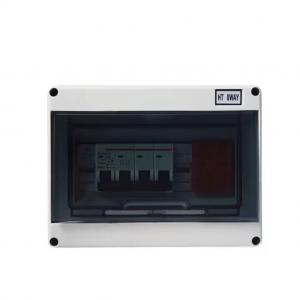

    PV1-1 Solar PV Combiner box 1 strings DC 500V 1000V Solar system combination box 1in 1out
