Description

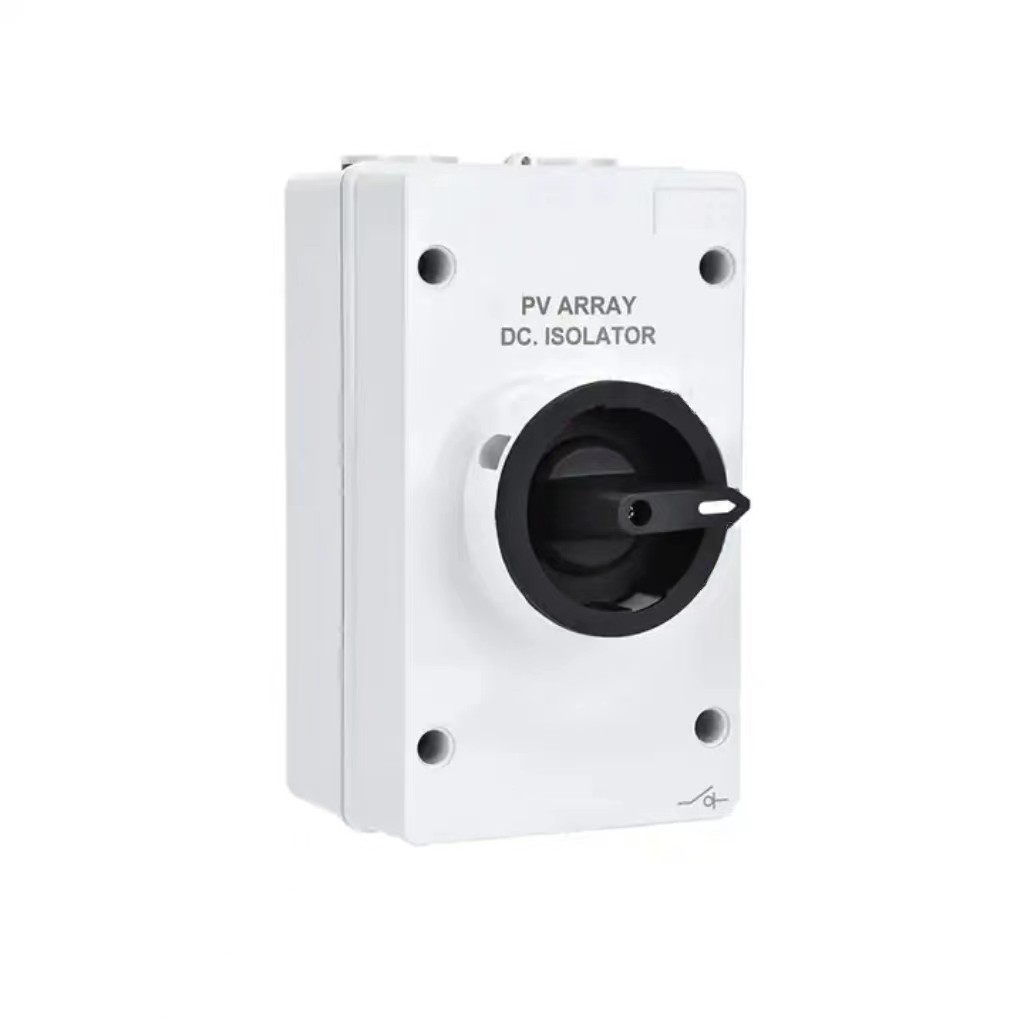

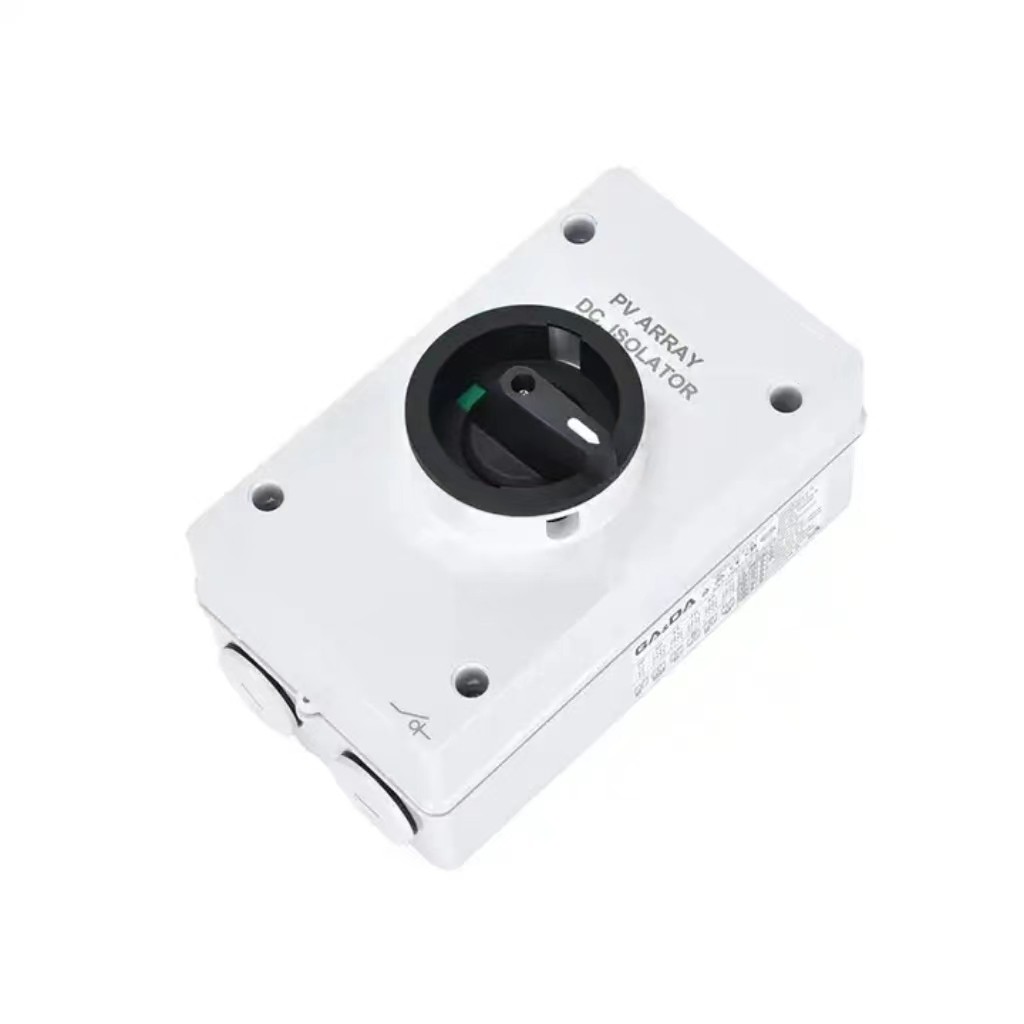

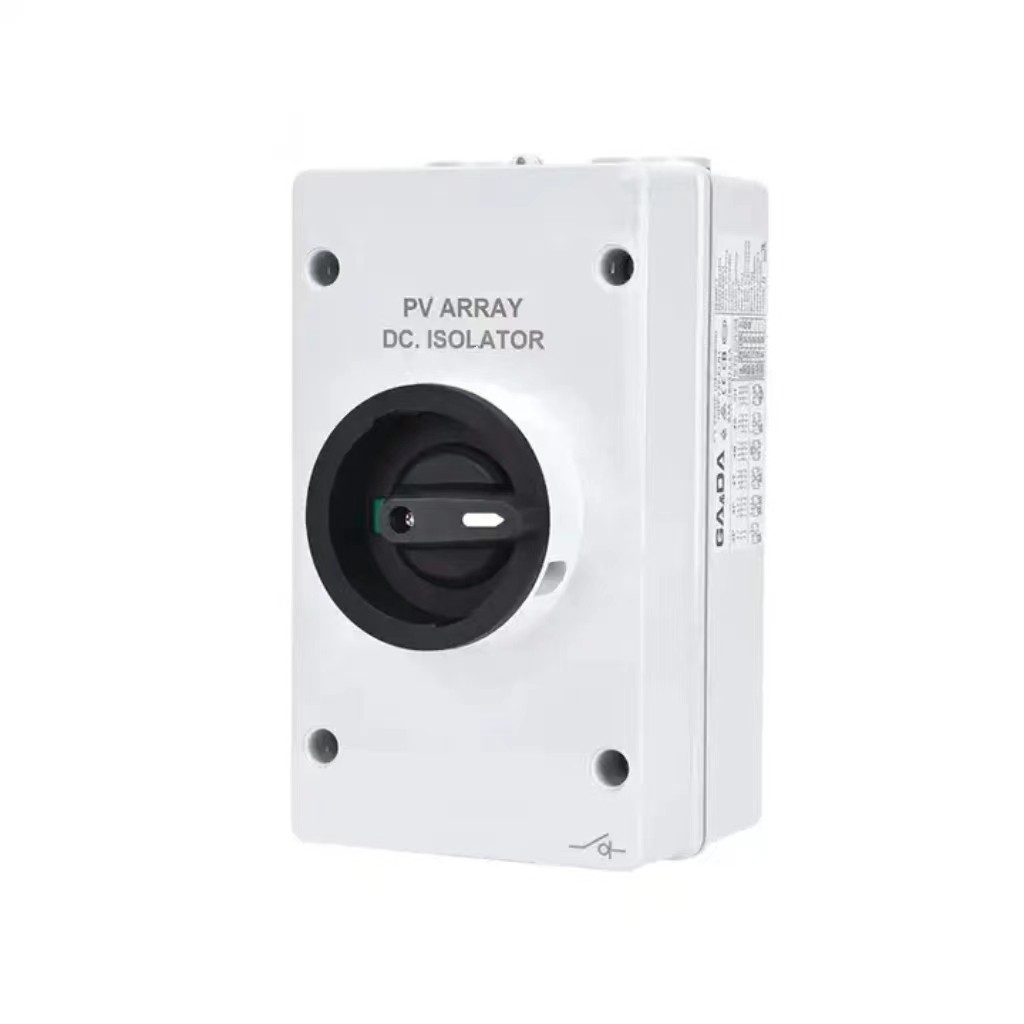

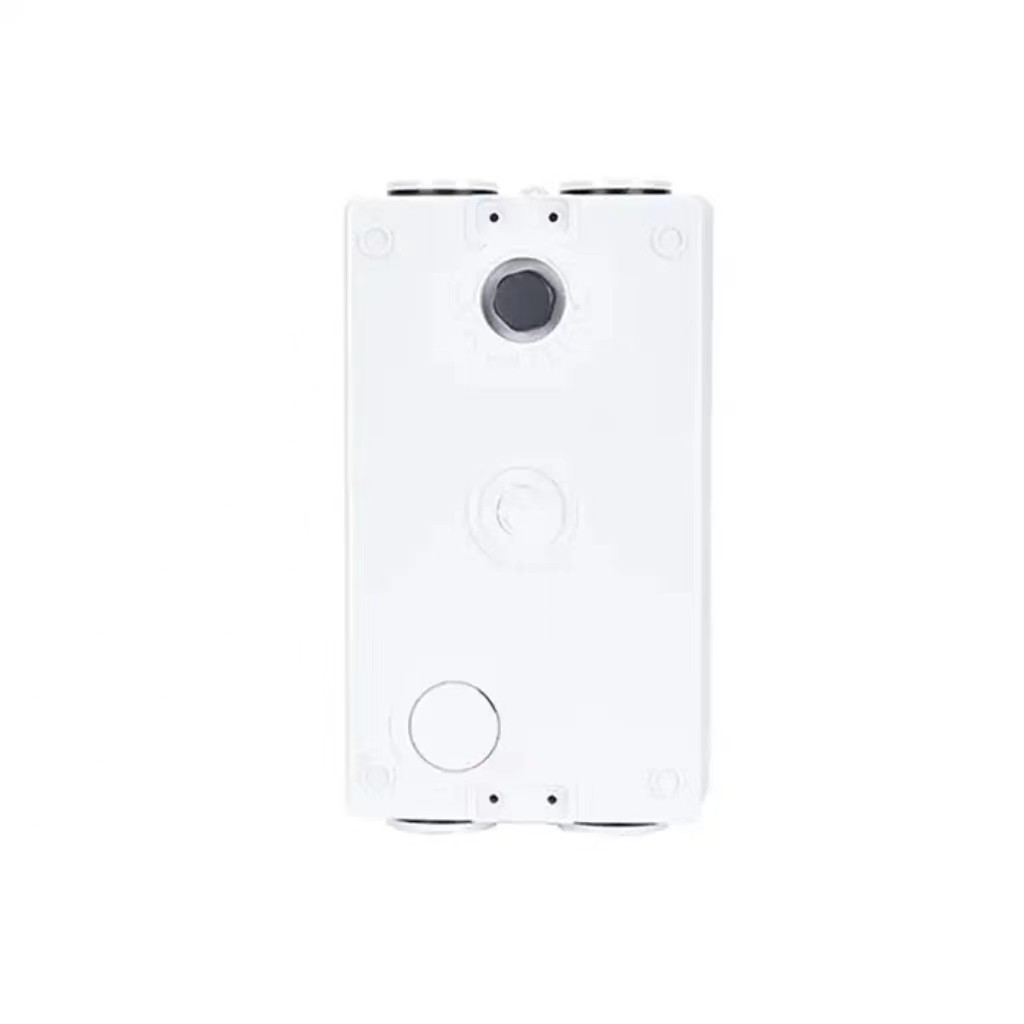

photovoltaic DC isolation switch
Product Introduction
DC disconnector is mainly used for line isolation between photovoltaic modules and inverters in photovoltaic power generation system. It is applicable to 1-300KW Solar inverter, with waterproof grade of IP66, long service life, extremely short arc extinguishing time, diversified wiring modes, and can meet the requirements of multi-channel MPPT of inverter.
Used in photovoltaic systems

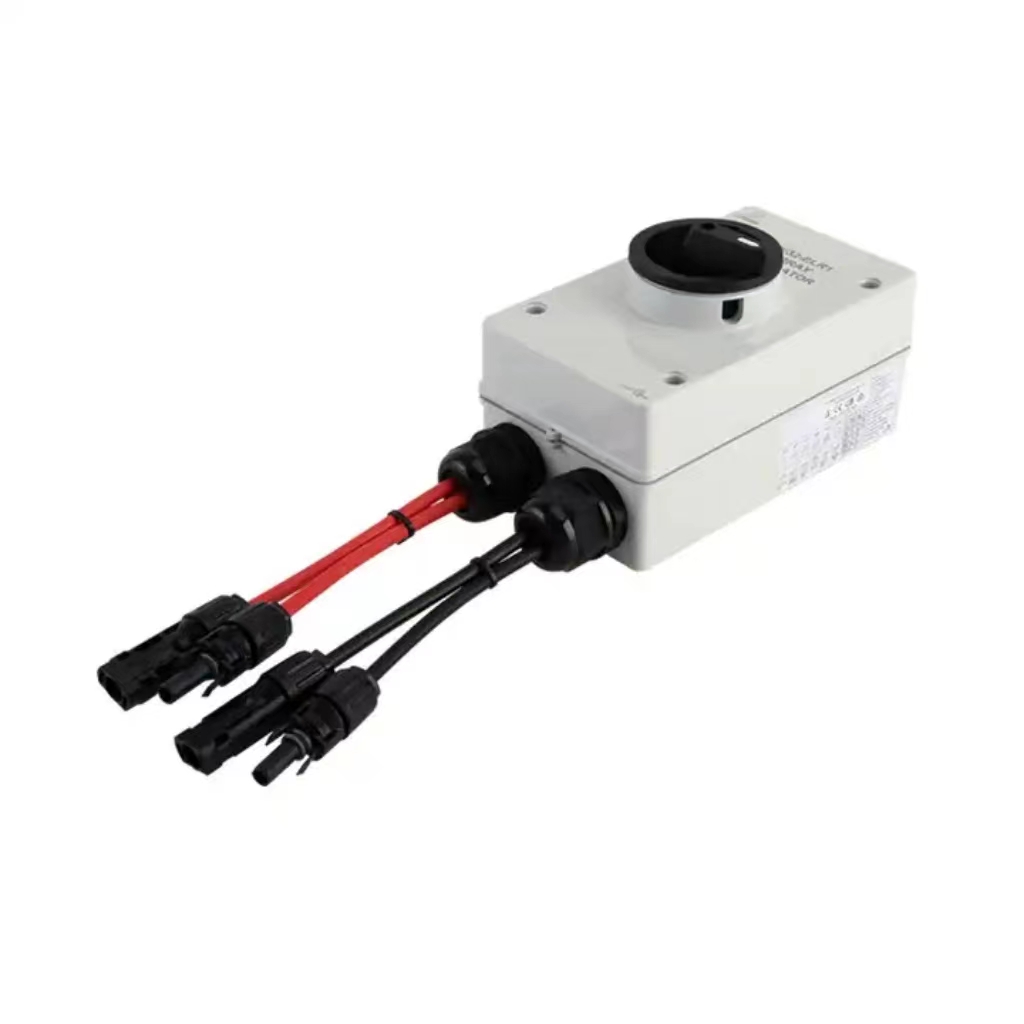

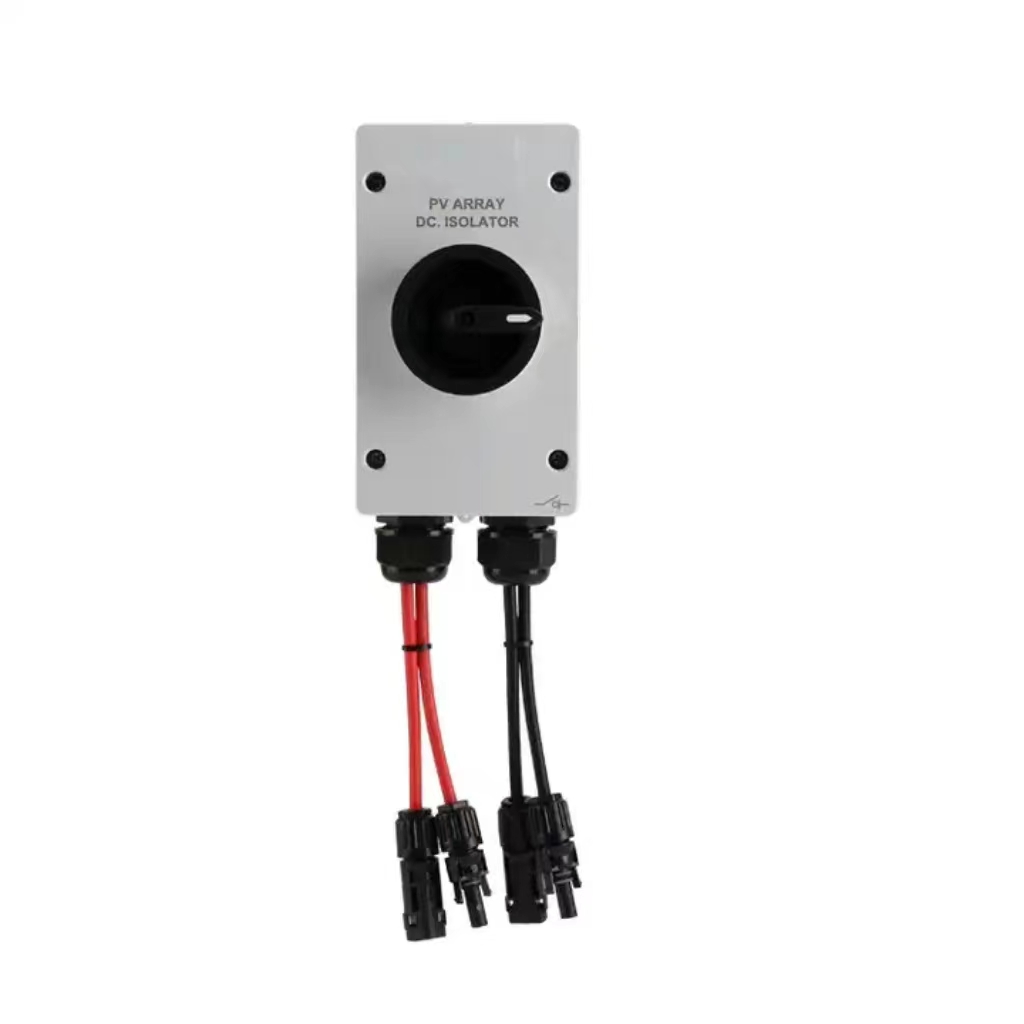

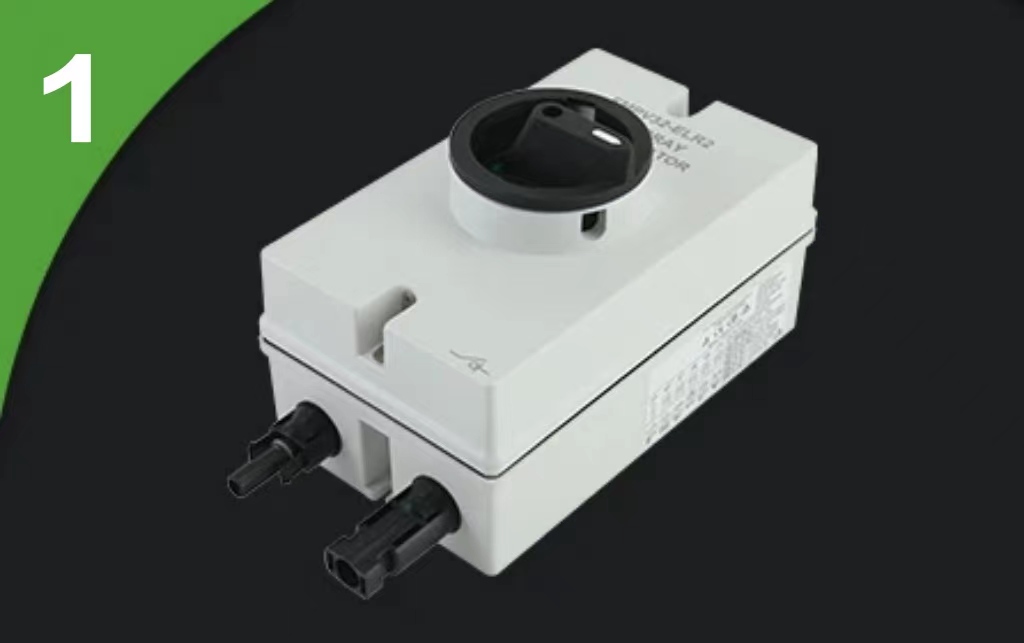

MC4 plugs with adaptor or cable gland can be selected for convenient connection and space saving.
New arc extinguishing technology

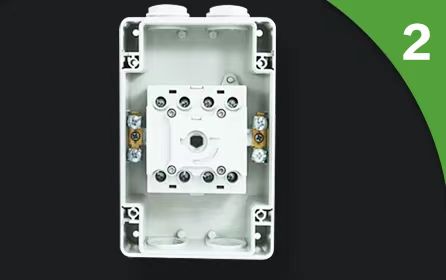

Unique arc out technology is used to switch the DC isolator to meet the use.
MC4 plugs with adaptor or cable gland can be selected for convenient connection and space saving.
Unique arc out technology is used to switch the DC isolator to meet the use.

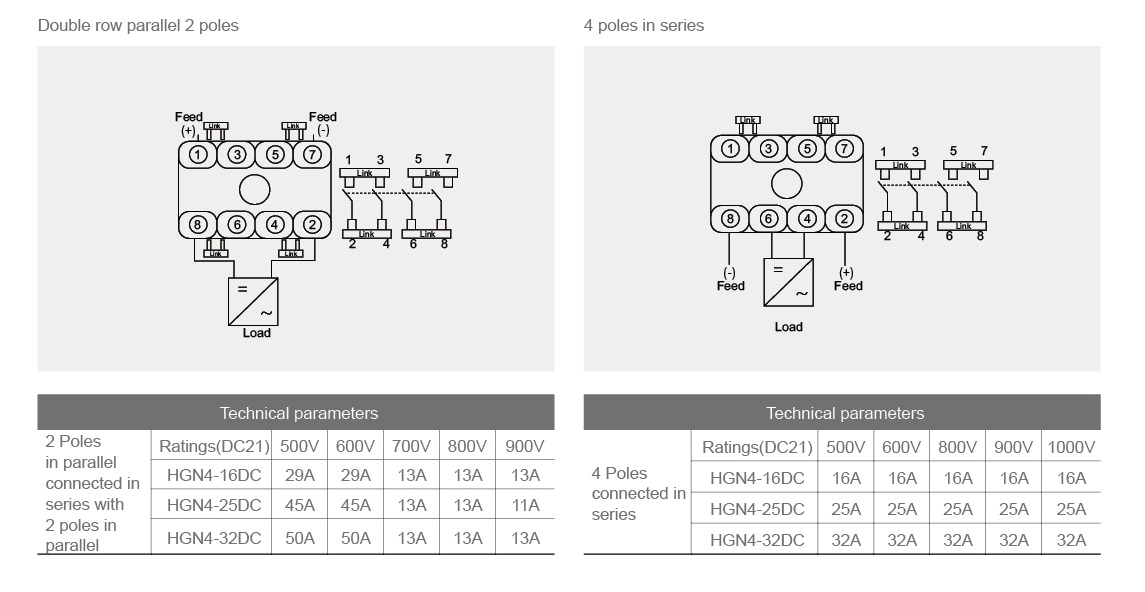

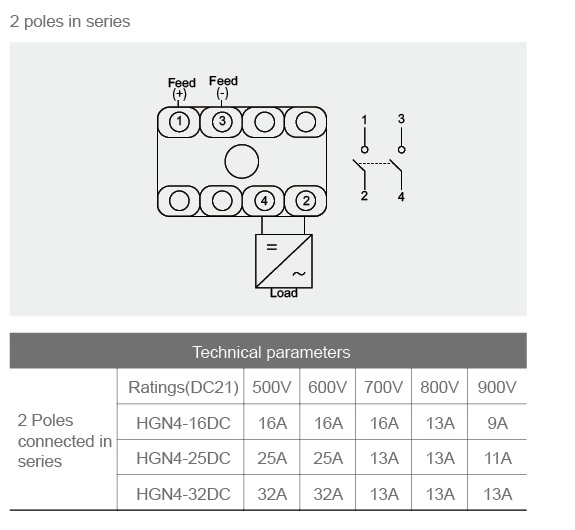

The MainTechnical Parameters
Photovoltaic DC isolation switch
Rated current
16A 25A 32A
Product number
HGN4-16/25/32DC
Rated voltage
1000V
Opering method
Handle 90° rotary switch
Housing material
PC+ABS
Ambient temperature
-5℃~40℃
Shell waterproof rating
IP65
Shell flame rating
V1
Housing environment
Outdoor UV(resistance)
Switch body energized part
Copper
Inlet hole size
knockout hole
Switch body plastic part
Nylon
Switch body plastic flame retardant
VO
