Description

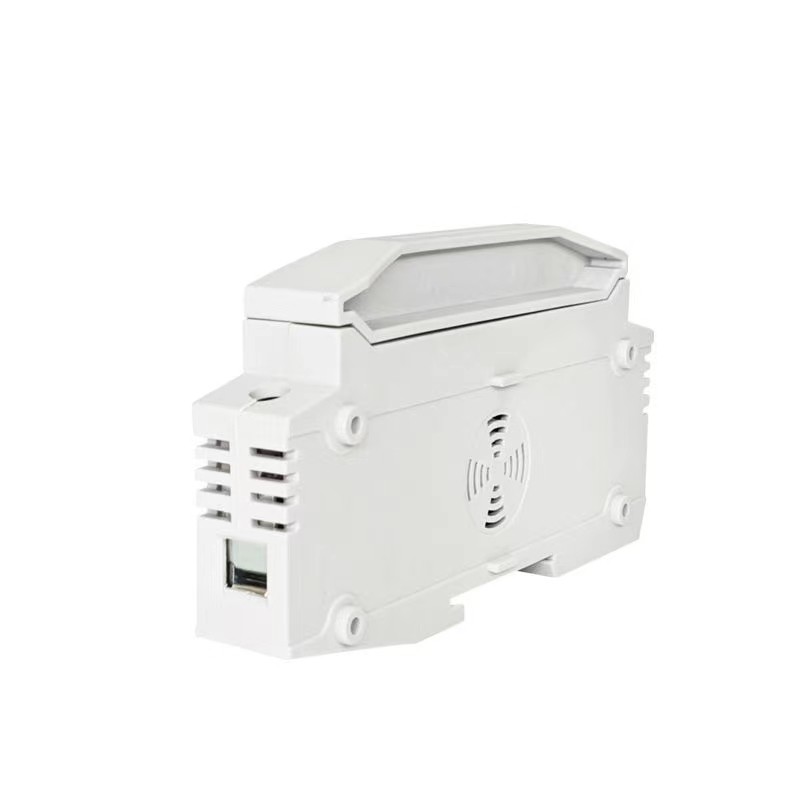

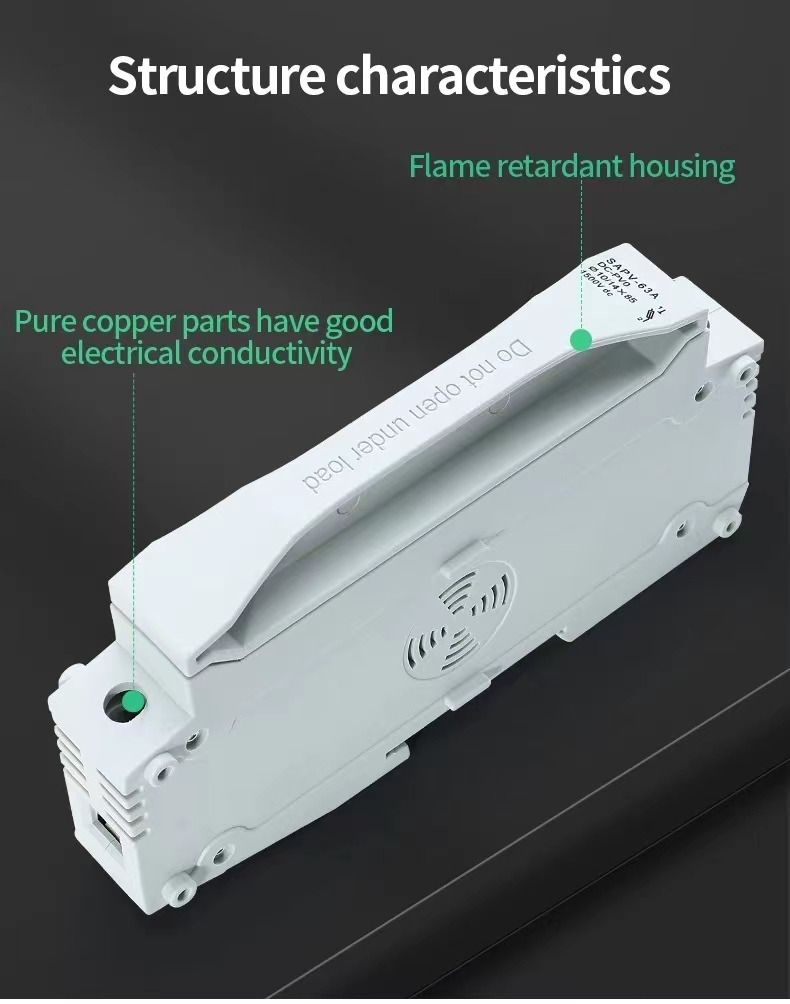

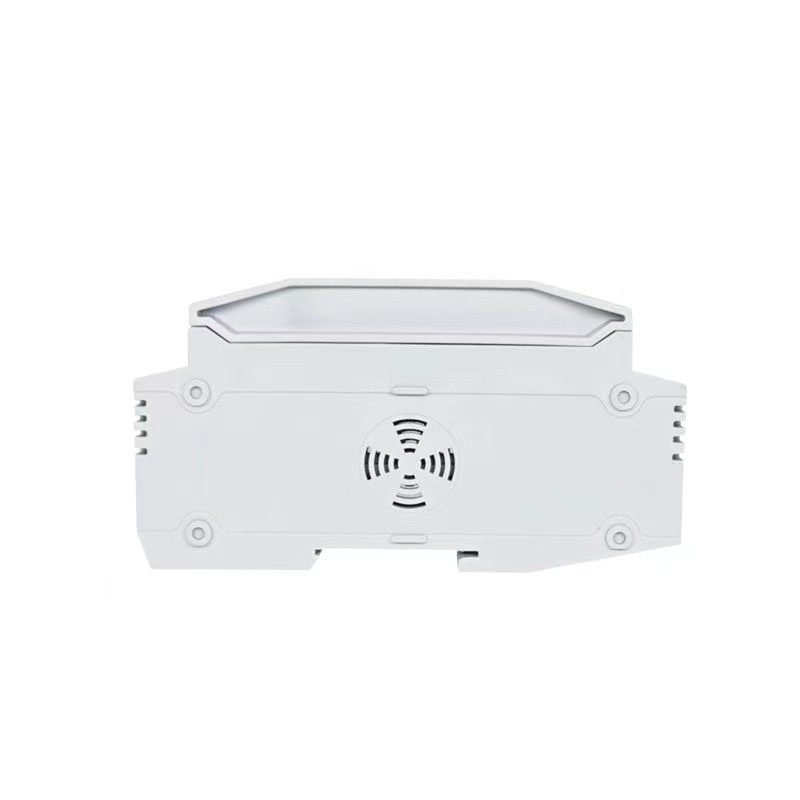

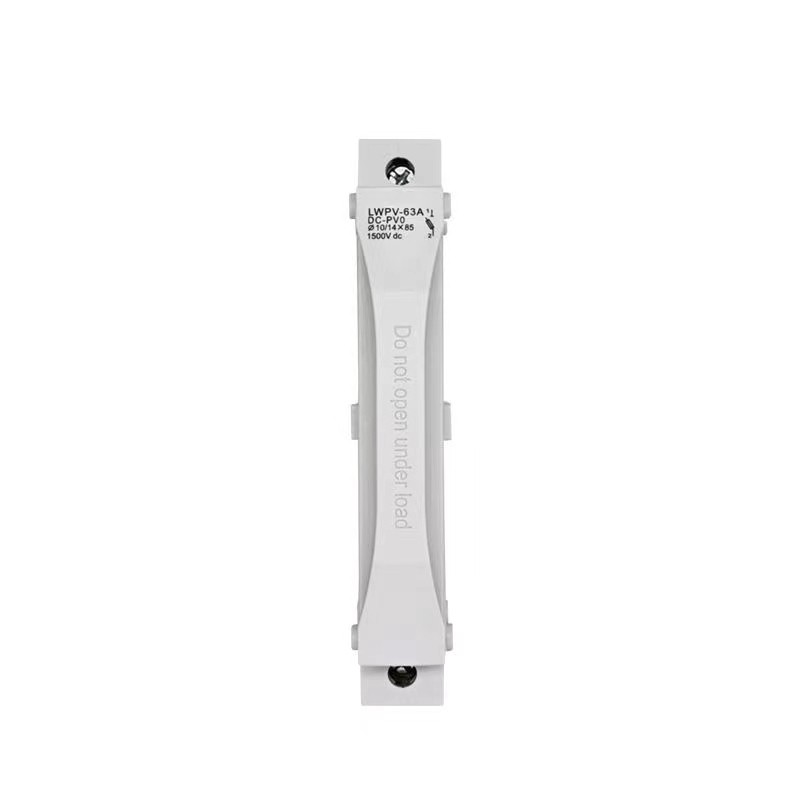

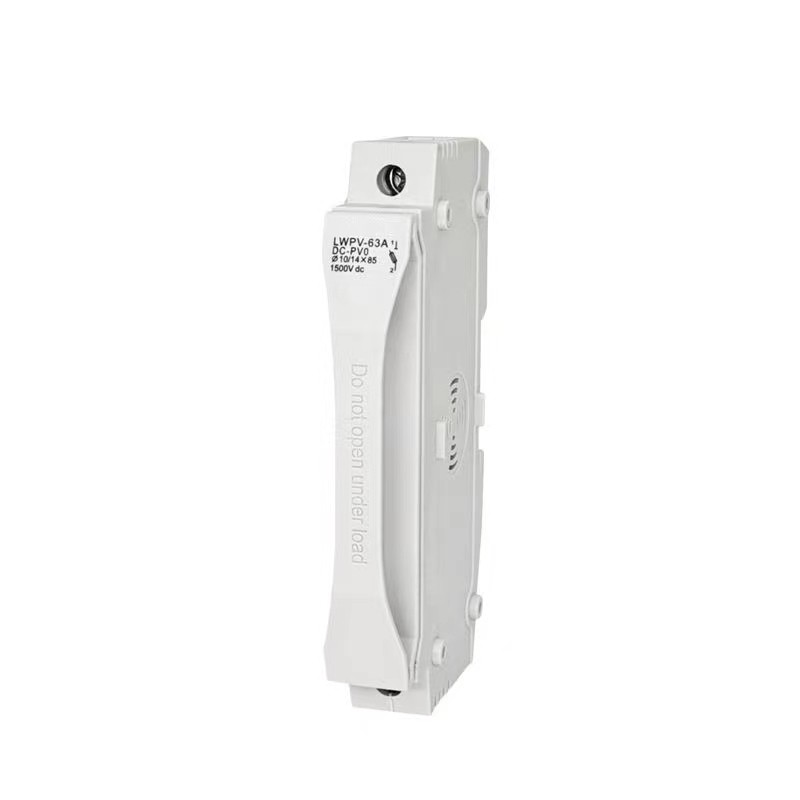

Din rail mounted 63A DC 1500V fuse holder for 14x85mm
A solar fuse is a type of electrical safety device that is used to protect solar photovoltaic (PV) systems from overcurrent or short-circuit conditions.It works by interrupting the flow of current in a circuit when it exceeds a certain level, which can prevent damage to the system and minimize the risk of fire or other hazards. In a solar PV system, a fuse is typically installed in series with each string of solar panels or inverter, as well as in other critical points in the system.
A solar fuse is a type of electrical safety device that is used to protect solar photovoltaic (PV) systems from overcurrent or short-circuit conditions.It works by interrupting the flow of current in a circuit when it exceeds a certain level, which can prevent damage to the system and minimize the risk of fire or other hazards. In a solar PV system, a fuse is typically installed in series with each string of solar panels or inverter, as well as in other critical points in the system.
| Usage: | LOW VOLTAGE |
| Safety Standards: | IEC |
| Product Name: | DC 1500V fuse holder with indicator 15A 20A 25A 32A 40A 50A 63A |
| Application: | Solar Power System |
| Rated voltage: | 1500V DC |
| Rated current: | 15A 20A 25A 32A 40A 50A 63A |
| Fuse size: |
14x85mm |
| Material: | Sliver |
| Standard: | IEC/EN60269 |
| Installation: |
35mm Din rail |
| Class of protection: | IP20 |
| Working Temperature: |
-5 to +40℃ |
