Description

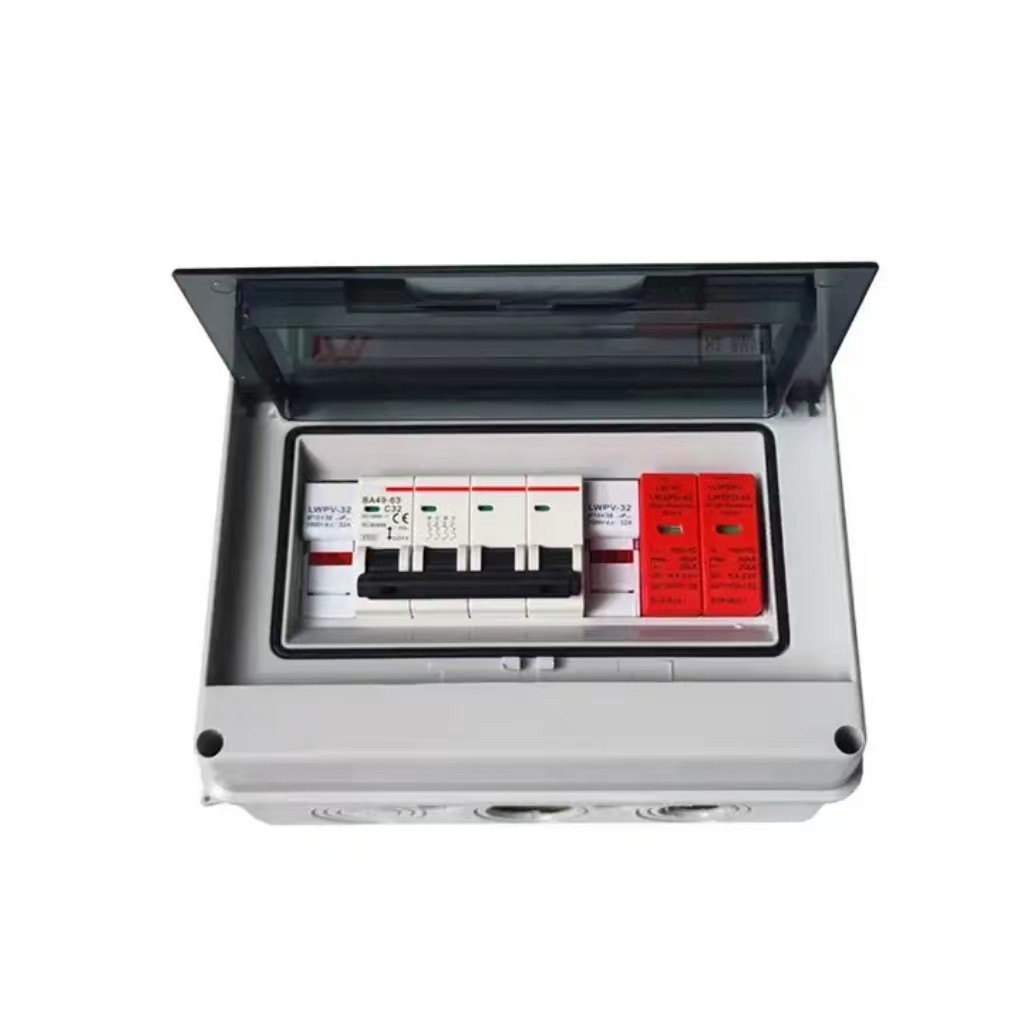

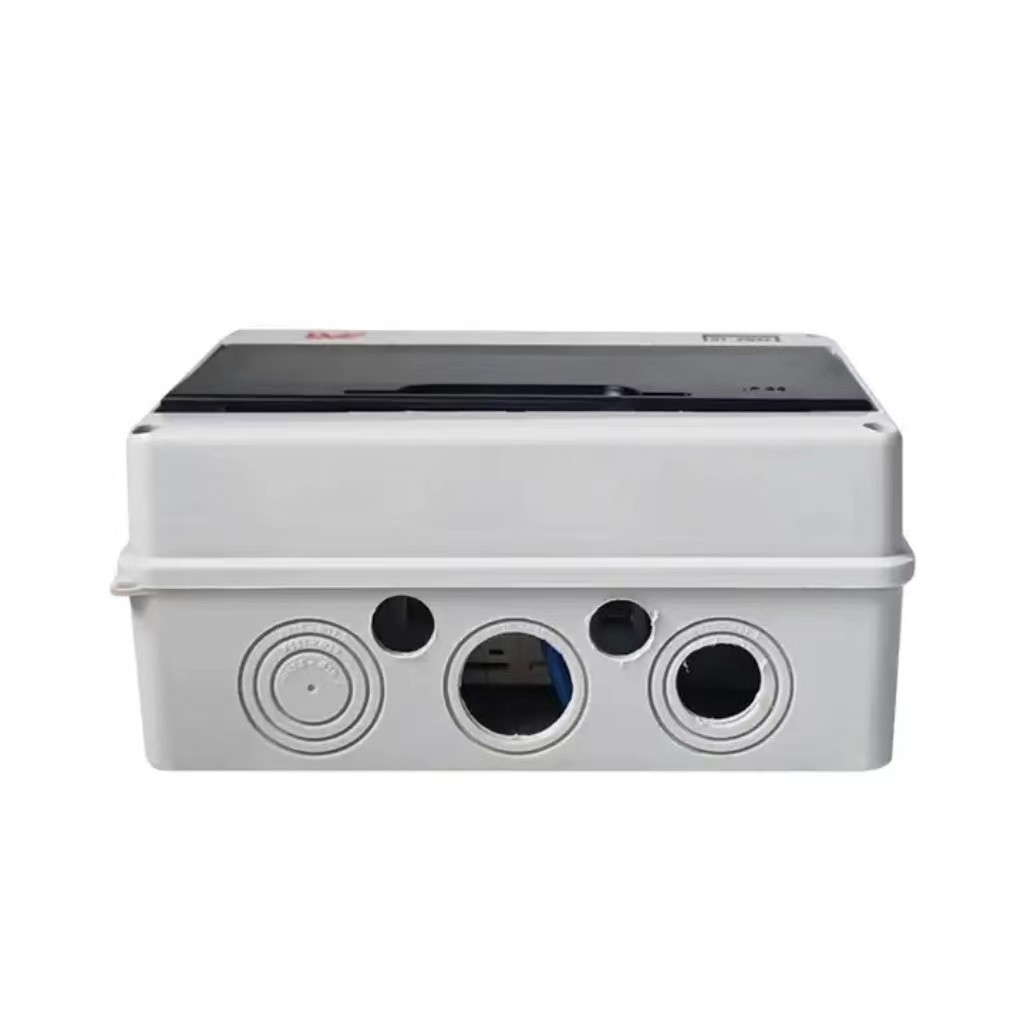

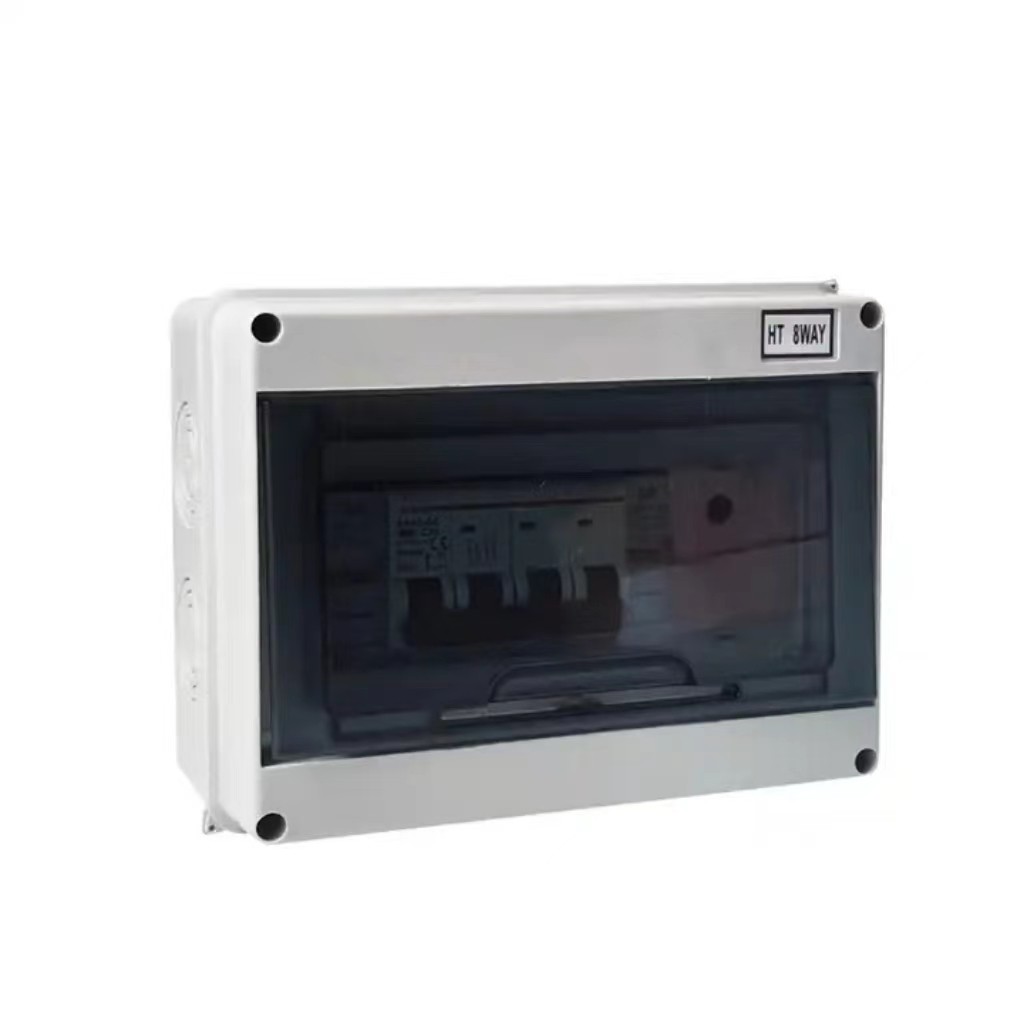

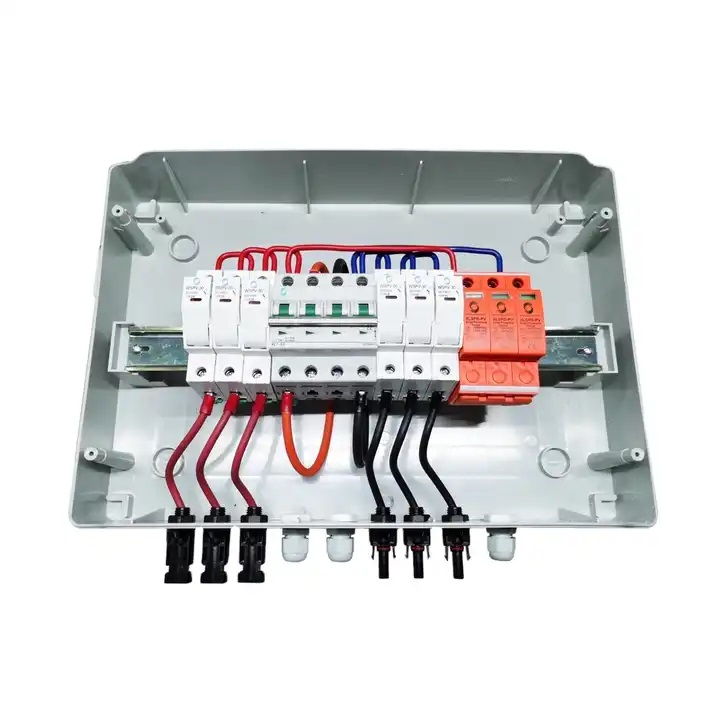

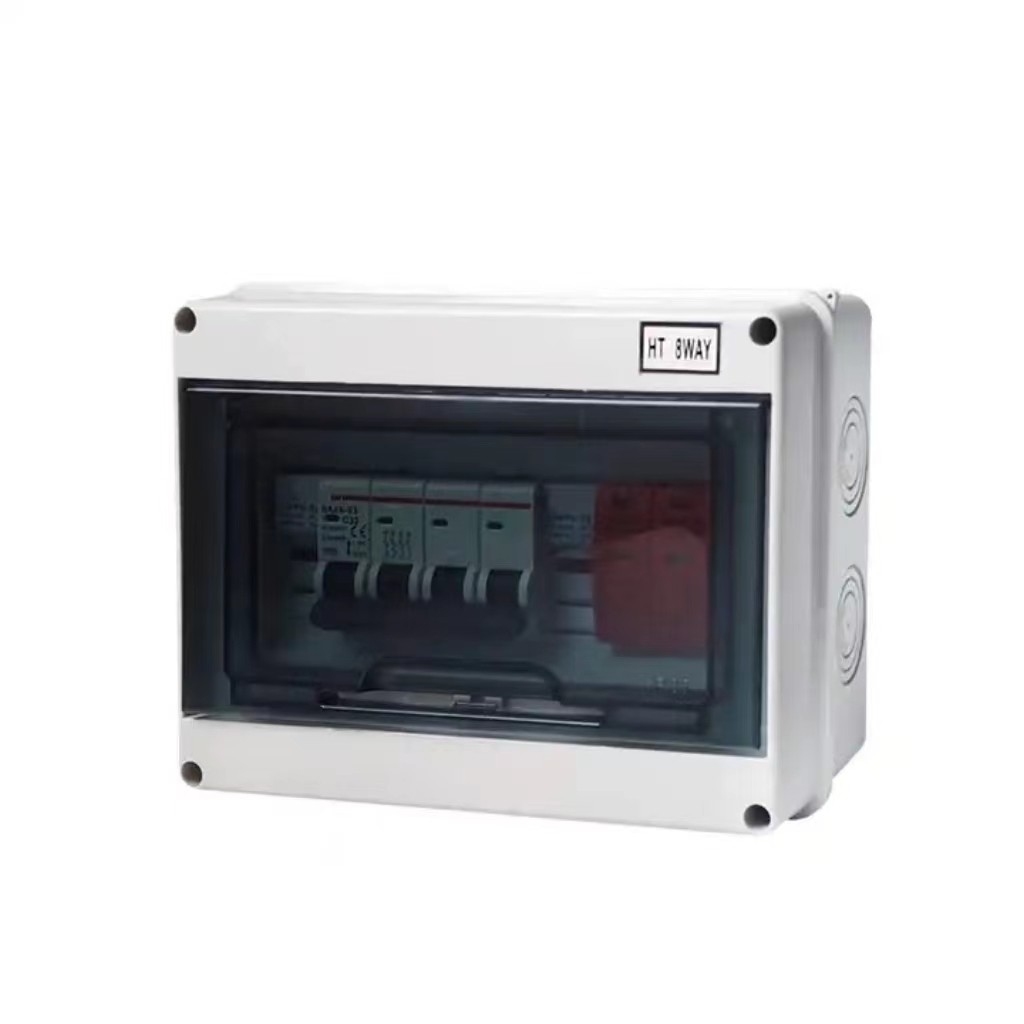

PV 1 Solar PV Combiner box
PV String DC Combiner Boxes are key components in the PV Solar power systems, which are placed between Solar Modules and the Inverters.
Specification
Name
Solar Combiner Box
Model Number
PV1-1
Input
1
Onput
1
Operation voltage
DC 500V 1000V
Protection Level
IP65

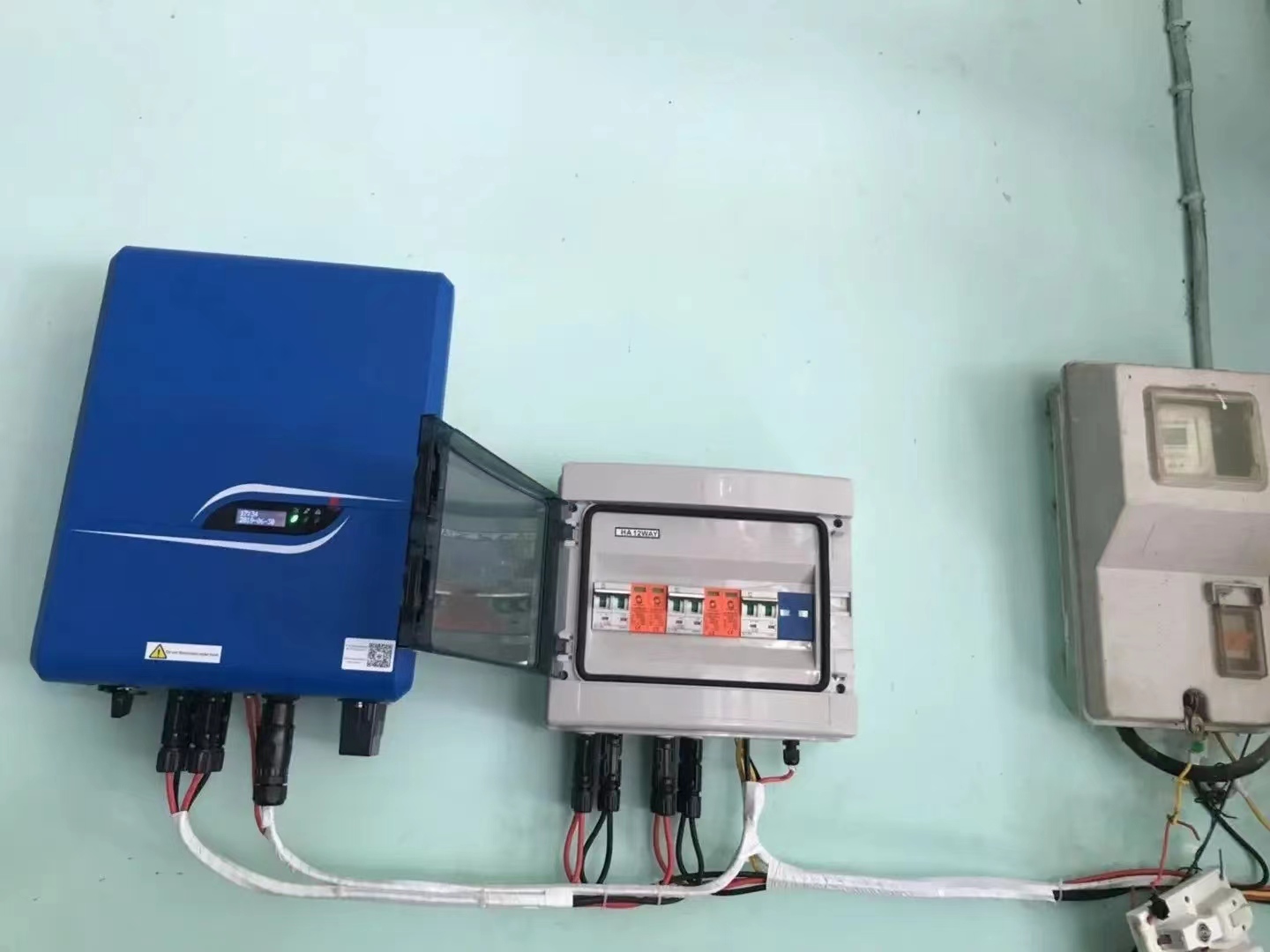

Installation Site
Solar Energy Station
Warranty
2 Years
Material
ABS
Advantage:
Easy machining with normal tools
IP65
Wide operation temperature range
Fire Resistance
Non-conductive
Good resistance to chemical corrosion
Light weight
Excellent insulating properties
Cost-effective material for harsh environments
Powder coated Chromium-Nickel Steel enclosure:
Easy machining with normal tools
Thickness ≥1.2mm Powder coated cold rolled
Surface finish: with the process of pickling and parkerising 80-120 μm
IP65 waterproof, dust proof,anti-corrosion and UV resistance
Durable: HRPV series combiner boxes are built to withstand harsh
environmental exposure
Suit for long distance transport
The PV bus box Simplify the physical wiring between solar panel and inverter.
Fault current protection for each PV String.
Fault alarm.
Easy installation and maintenance.
Packaging and delivery
