  5. 1000V MC4 Fuse connector fuse Link
  • 1000V MC4 Fuse connector fuse Link
  • 1000V MC4 Fuse connector fuse Link
1000V MC4 Fuse connector fuse Link1000V MC4 Fuse connector fuse Link

1000V MC4 Fuse connector fuse Link

  • Product Item:PV-FC-1000
  • Rated Voltage:TUV1000V DC TUV/ UL 1000V DC
  • Rating Current:1A-32A
  • PIn Dimension:φ4.0mm
  • Waterproof:IP67
  • MC4 Fuse connector , 1000V DC , 10x38mm Fuse
    Inquiry Send Email PDF

    Description

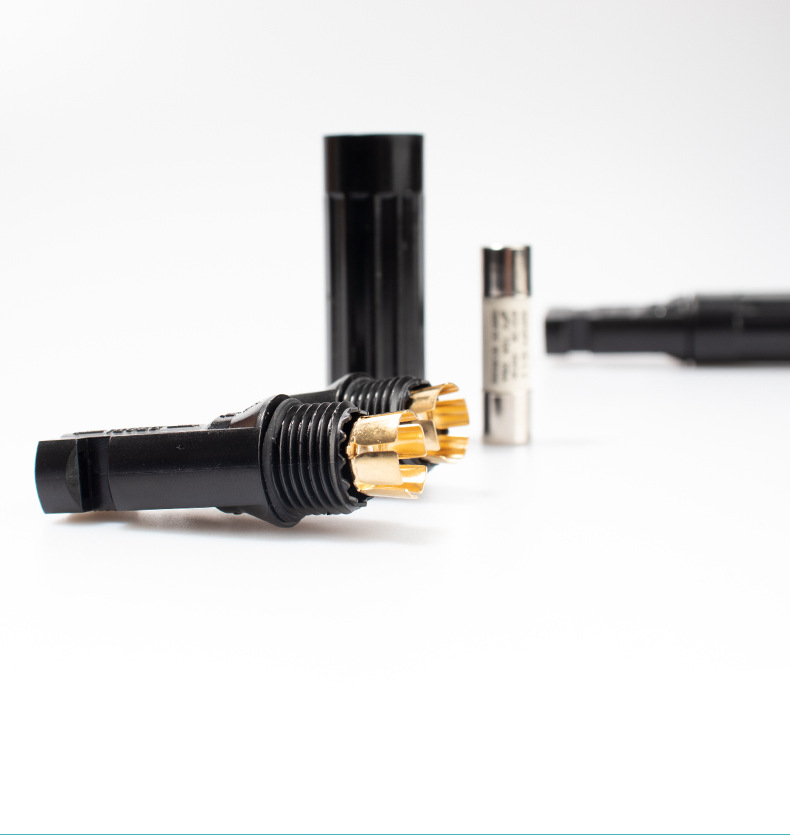

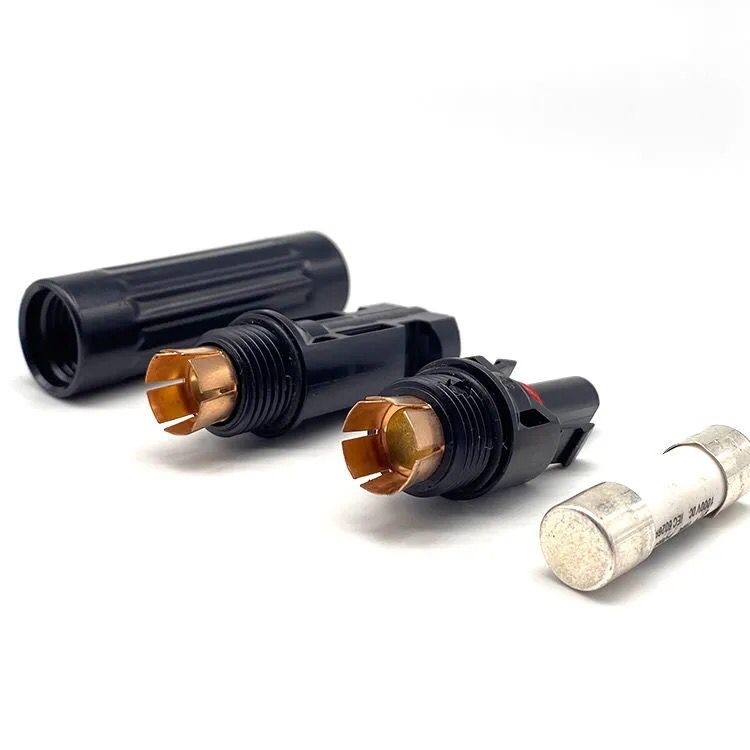

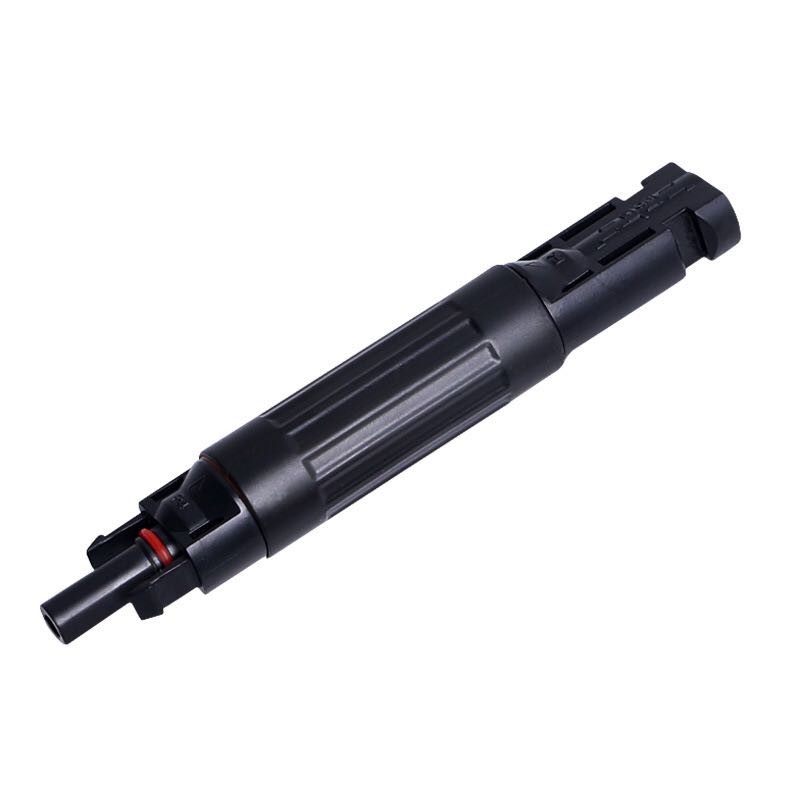

    1000V MC4 Fuse connector fuse Link

    PV Inline Fuse Connector is Compatible with 800+ solar module connectors, suitable for solar cable 2.5 mm2, 4mm2 and 6mm2 in solar connection project.quickly and reliable connection of the solar cables to the photovoltaic system(solar panels, converters).

    • Compatible with 800+ solar module connectors
    • 10 Years of production experience in solar connectors
    • TUV approved & Quick and easy to install
    • Protection class IP68 Suitable for outdoor harsh environments
    • Stable connection & Reducing maintenance cost
    • Free Sample is available


    Datasheet

    Product No.:PV-CF-1000

    Housing material: PPO
    Contact material: Copper with tin plated
    Fire resistance: UL94-V0
    Resistance: Less than 0.3 mΩ
    Waterproof: IP68
    Pin Dimension: Ø4mm
    Pollution Degree: 2
    Rated Voltage: TUV 1000V DC/UL 600V DC
    Rated Current: 1A-15A
    Protection Class: Class II
    Fused core: 3A-32A
    Fuse size: 10*38mm

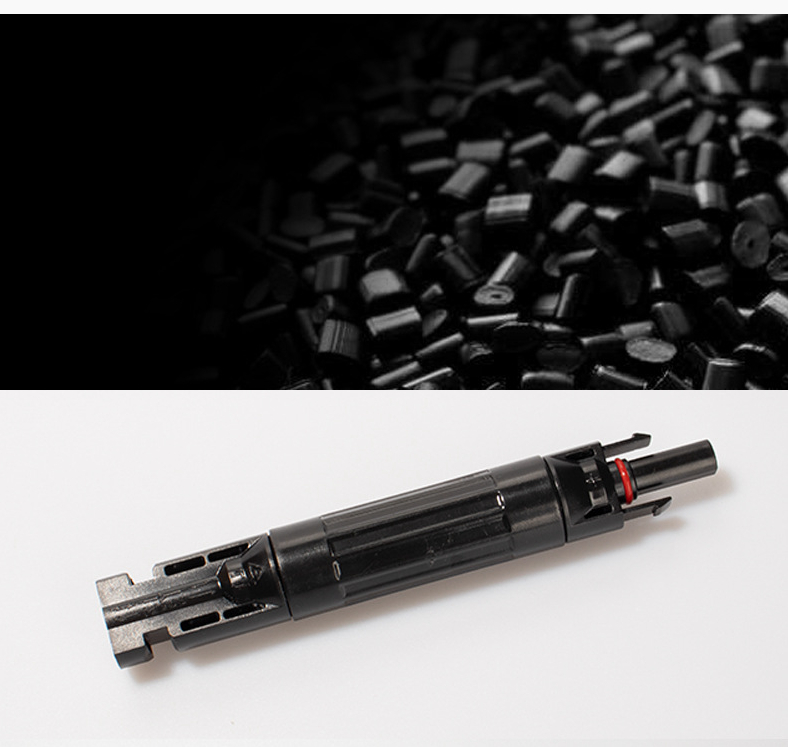

    High Quality PPO

    Anti UV/  Anti Flaming





    Contact us! Free sample deliveried in 7days

    Sales: Molly@beyondsolar.cn

    info@beyondsolar.cn

    Mobile/whatsapp/wechat:+86-18576852516

    Skype:molly.l@beyondsolar.cn
