Description

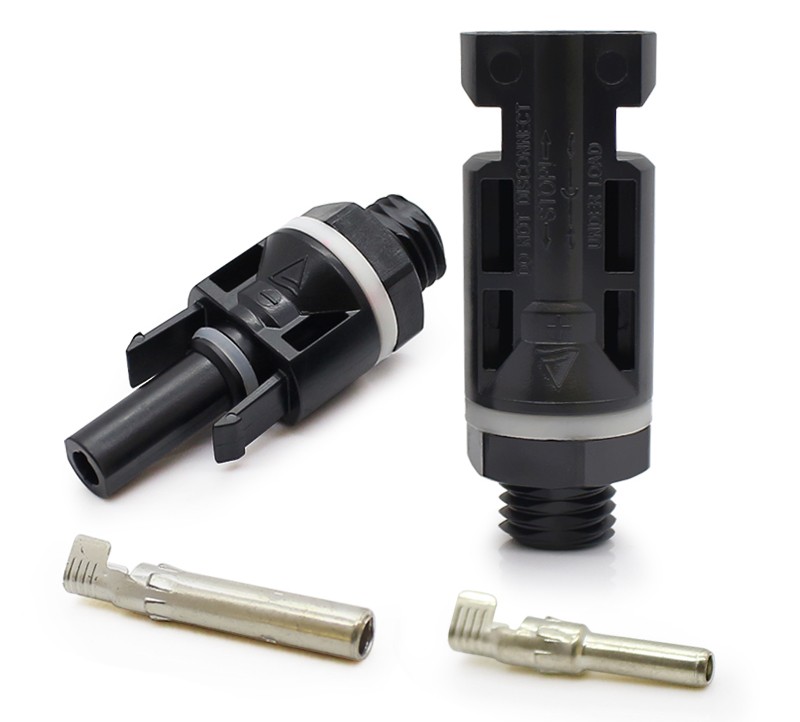

1000V MC4 solar panel connector for 2.5mm2~6mm2
Product No.:PV-CP-1000
| The pin of this typle is hollow(Stamped pin) | |

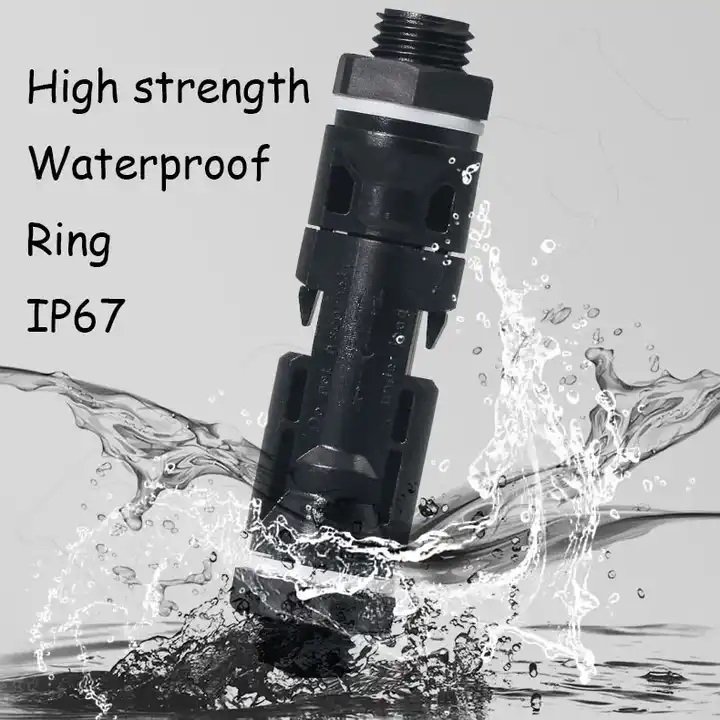

| Waterproof: | IP67 |
| Fire resistance: | UL94V-0 |
| Resistance: |
0.3 mΩ |
| Rated Voltage: | TUV 1000V DC/UL 600V DC |
| Housing Material: | PPO |
| Contact: | Copper Tin plated |
| Rated Current: | 20A~30A |
|

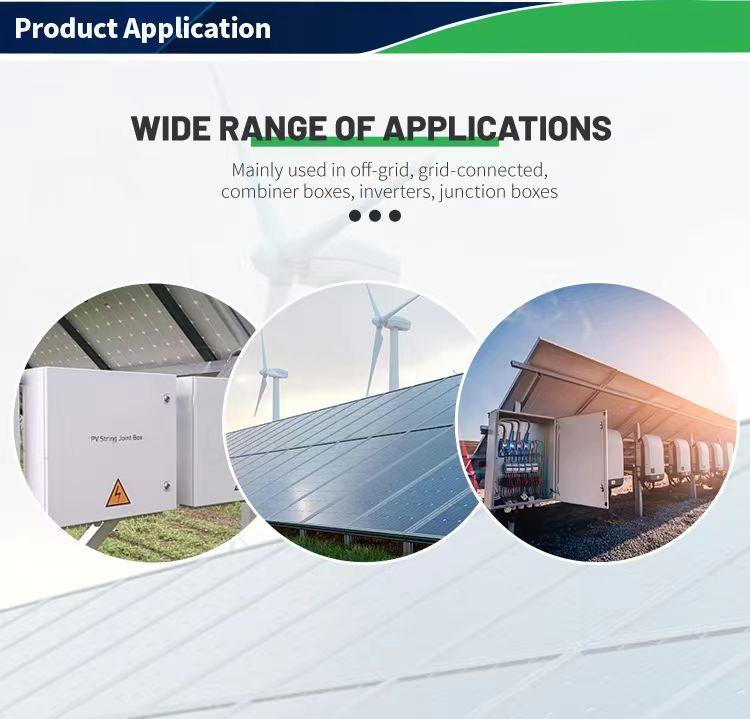

Used for DC combiner boxes |
|
| Pollution Degree: | 2 |
| Protection Class: |
Class II |
| Withdrawal Force: |
>50N |
| For cable size: |
4.85mm ~ 7.2mm |
Function

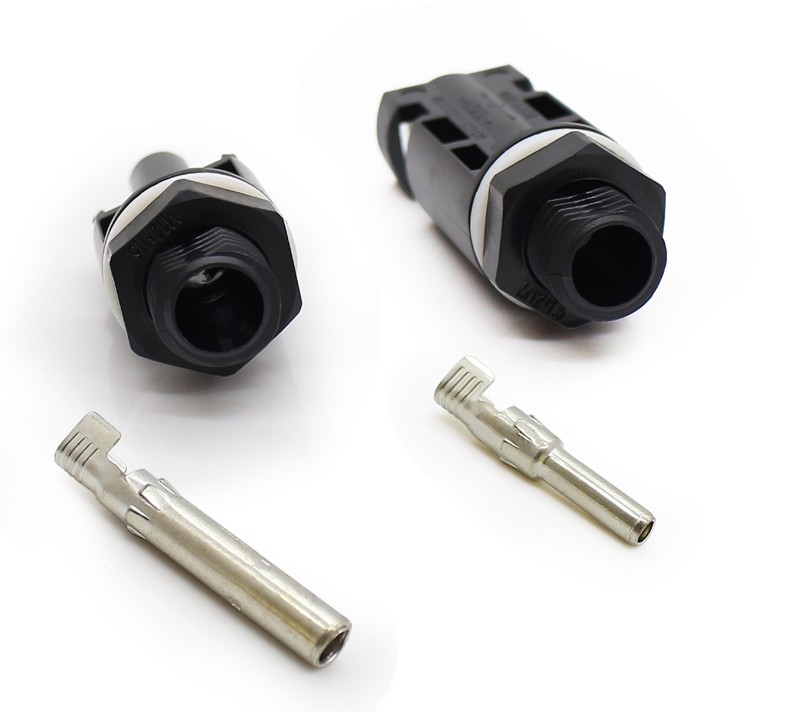

The panel-receptacle connectors are the interface between an inverter or combiner/junction box or a branch cable, mounting
directly by means of screw thread or in perforated plate with locknut, easy to assemble with minimal tooling.
Feature
Simple on-site processing.
Mating safety provided by keyed housings.
Mutiple plugging and unplugging cycles.
Accomodates PV cable with deferent insulation diamaters.
High Voltage and Current carrying capacity.
CE approved.
Competitive price.
