Description

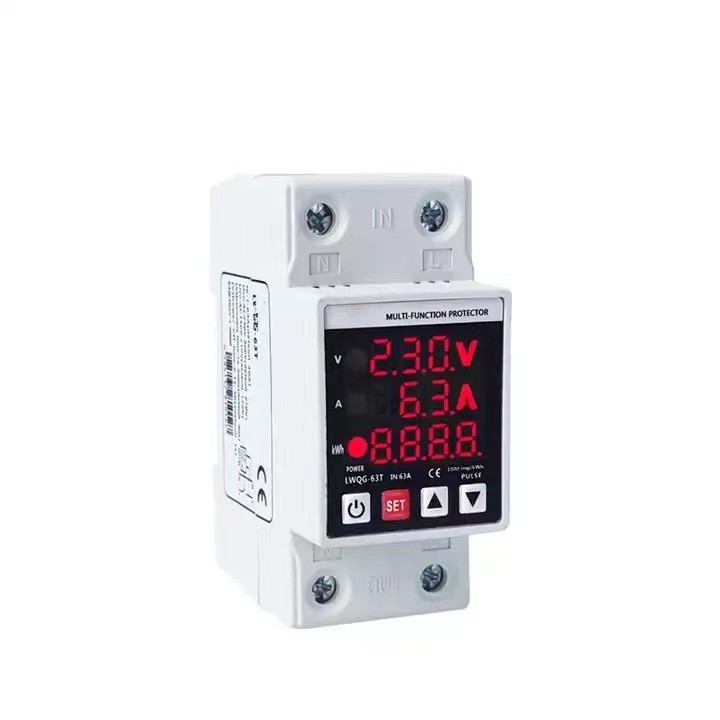

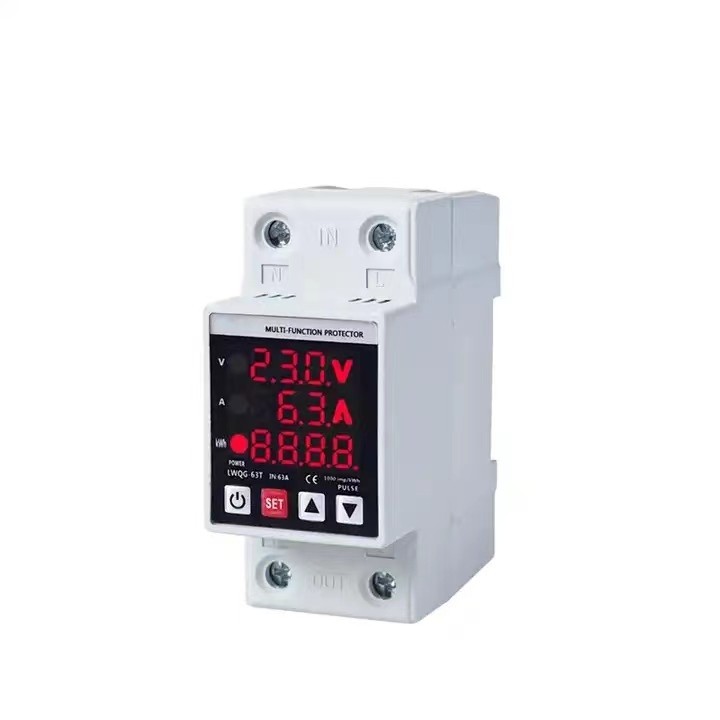

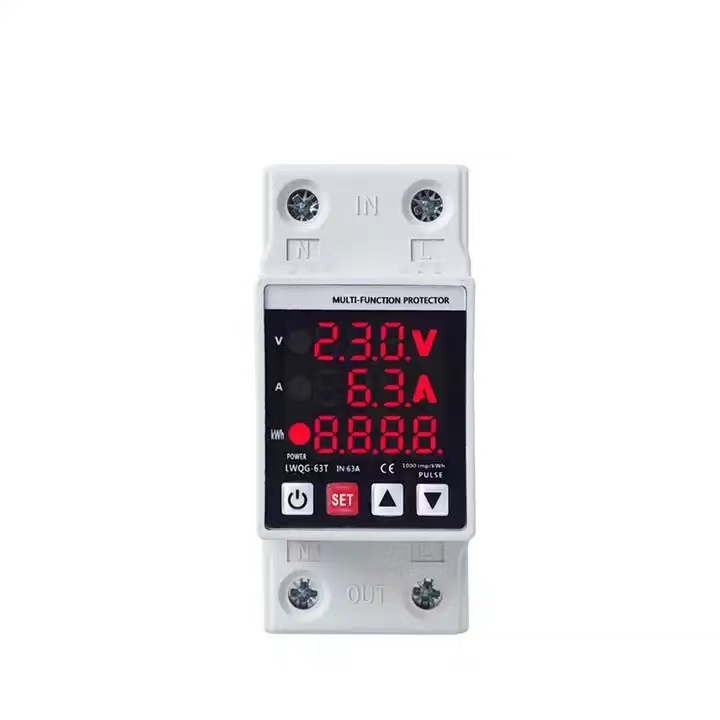

63A 230V Din rail adjustable over and under voltage protective device
| Number of Pole | 2 |
| Model Number | GQ-63N |
| Rated Frequency(Hz) | 50/60Hz |
| Current | 40A 63A |
| Rated Voltage | 220VAC |
| Installation | Din Rail |
| Packing | 1pcs/box |
| Type | Mini |
| Material | PA66 |
| Pole | 2pole |
| Keyword | energy meter |
| Application | Electrical Protection |

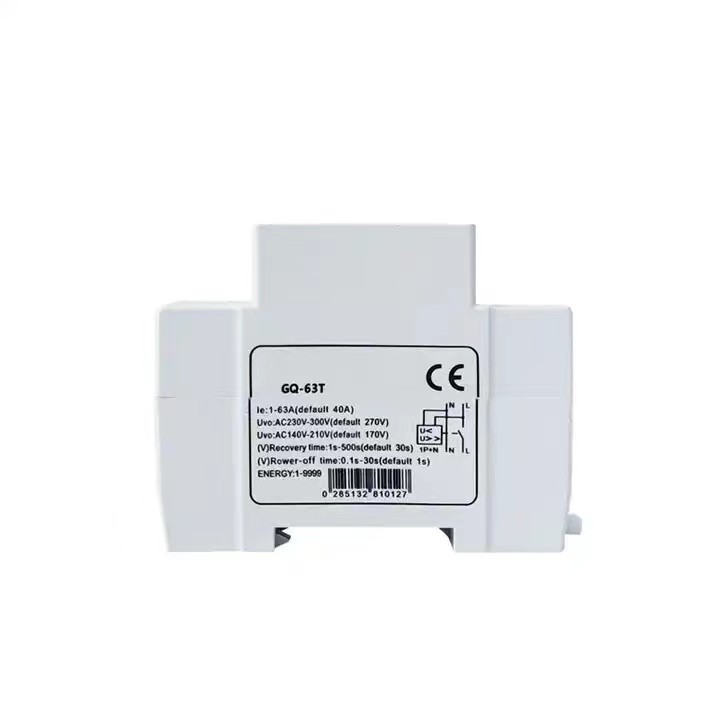

Product specification
Rated voltage: 140-300V; Frequency: 50Hz/60HZ
Function: 1. Under voltage protection 140V-210V (adjustable) (default: 170V) can be disable
2. Over voltage proteciton 230V-300V (adjustable) (default: 270) can be disable
3. Over current protection 1A-63A (adjustable) (default: 40A)
4. Reconnect time (delay on time): 1-500s (default: 30s)
5. Voltage meter
6. Ammeter
7. Energy meter
Product Setting

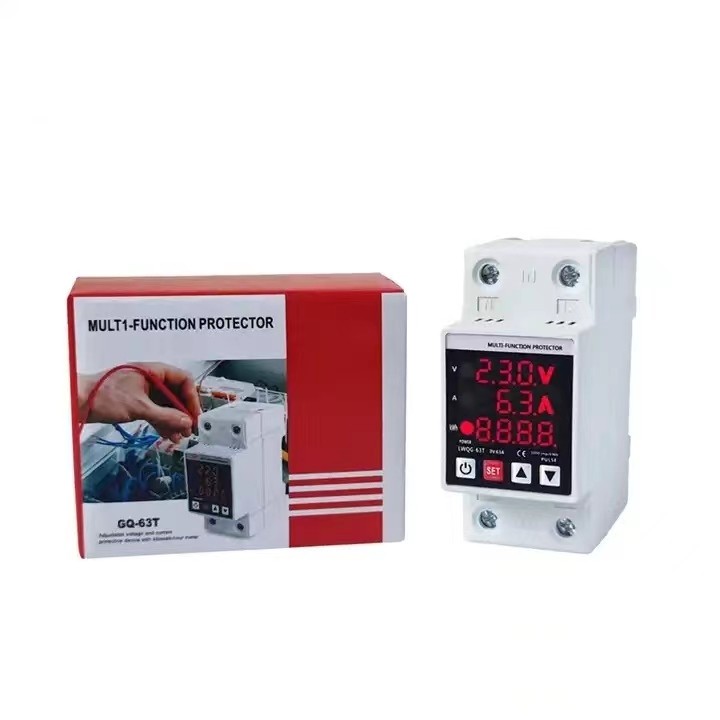

Packing&Shipping
When V LED flash, it means over or under voltage protection
When A LED flash, it means over current protection.
