Description

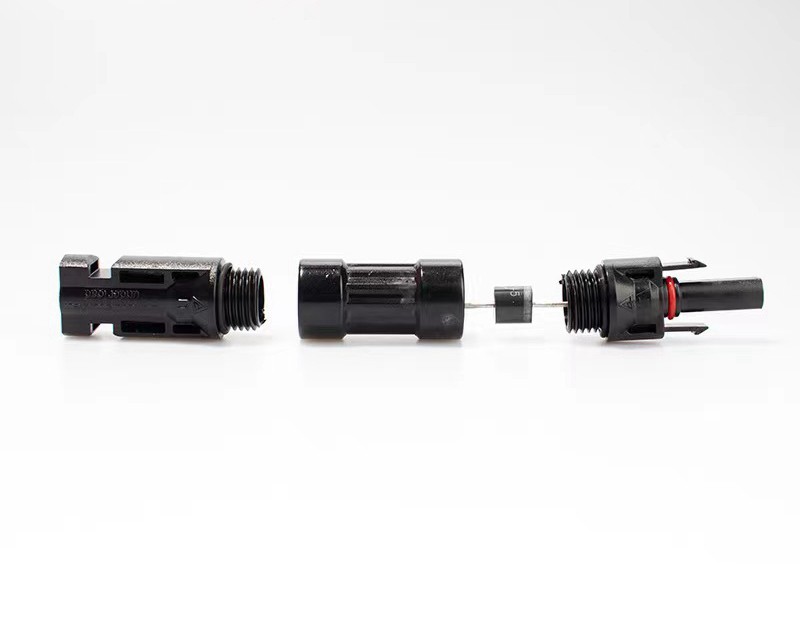

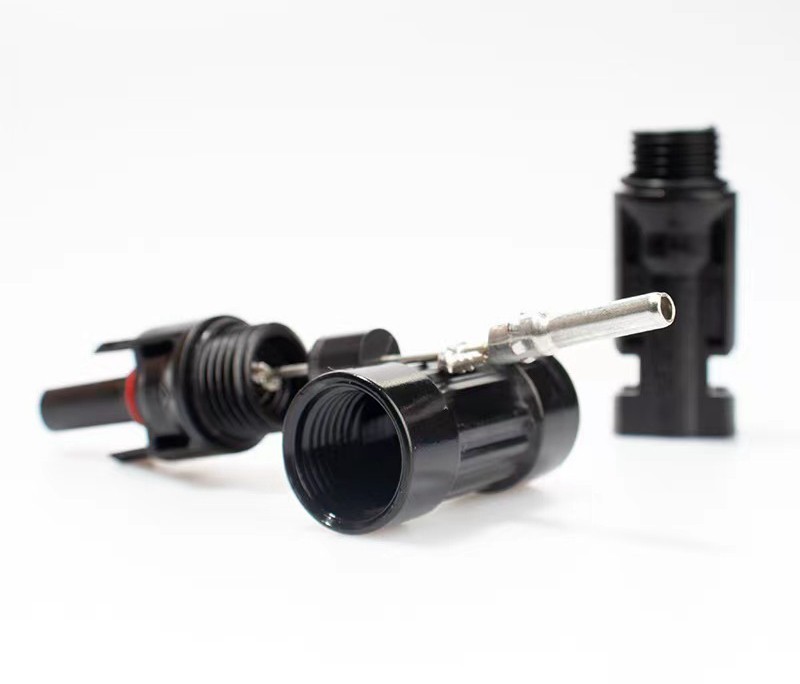

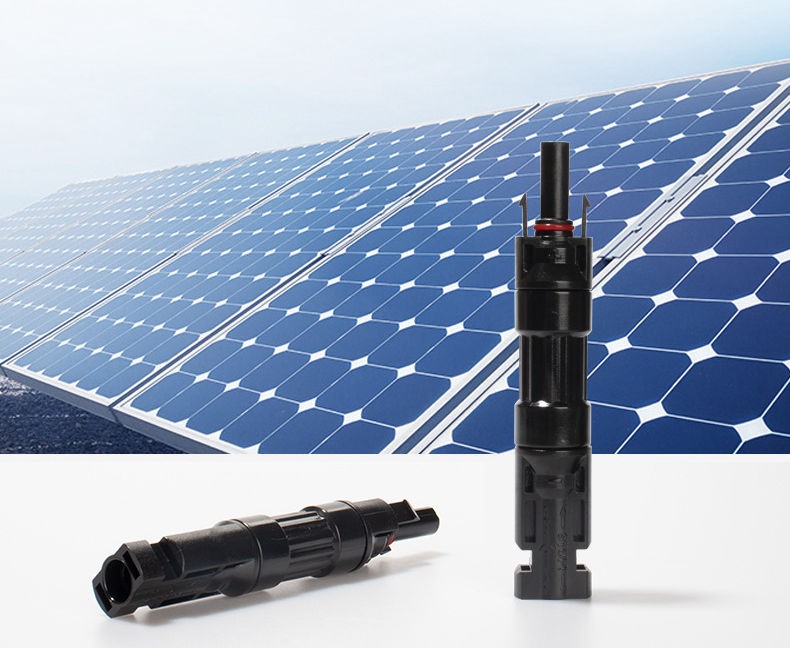

1000V MC4 diode connector
MC4 solar PV diode connectors are used prevent against reverse diode modules and photovoltaic systems to protect current reverse from solar panels and inverters.
This diode connector is compatible with solar panel connectors for 2.5 mm2, 4mm2 and 6mm2 solar cables in solar connection projects. Fast and reliable connection of solar cables to photovoltaic systems (solar panels, converters).
Datasheet
Product No.:PV-D-1000
| Housing Material: | PPO |
| Contact Material: | Copper with Tin-plated |
| Waterproof: | IP67(IEC60529) |
| Rating Voltage: | UV1000V/UL600V |
| Current: | 3A-15A(diode) |
| Temperature Range: |
-40˚C~+90˚C |
| Flame Class: | UL94V-0 |
| Resistance: |
≤0.5mΩ |
| Pin Dimension: |
φ 4.0mm |
| Pollution Degree: | 2 |
| Protection Class: |
Class II |
| Withdrawal Force: |
>50N |
| Insertion Force: |
<50N |
| Flame Class: | UL94V-0 |
