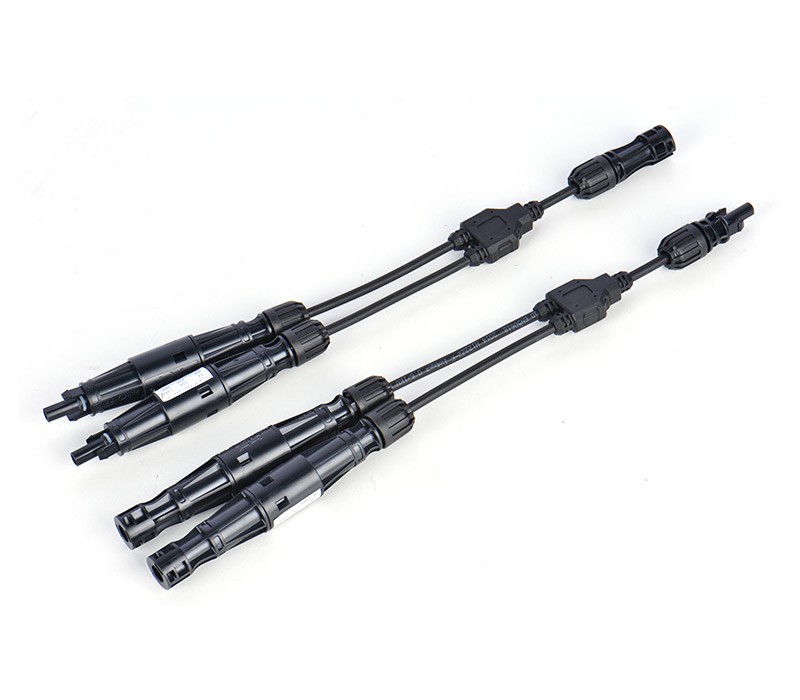

1500V DC PV branch connector 2to1 with Fuse Connector

1500V DC PV branch connector 2to1 with Fuse Connector

Product Item：PK15-JT192A

TUV approved cable wire

use imported PPO raw material

TUV test & approved

PV connectors

Description

1500V DC PV assembly branch connector 2to1 with Fuse Connector

Advantage:

1.The cable are soft and easy to lay. Bounce angle does not exceed 40 degrees.
2.The flame retardant performance of the product has passed IEC60332-1 single flame retardant test requirements.Low smoking.
3.Insulation and sheath materials are resistant to electrochemical solvents.
4.The cable has good resistance to environmental stress cracking, heat resistance and low temperature resistance.
5.After the cable is processed by radiation, its mechanical and mechanical physical properties are significantly improved and the service life is increased.
6.Insulation and sheath materials have small thermal shrinkage, which can ensure that copper is not exposed during the work of the cable.

Specification:

1.Insulation material:Sabic PPO/TPE
2.Safety Level:class II
3.Rated voltage:30A
4.Material RTI:110℃
5.Rated voltage:1500V(IEC)/600V(UL)
6.Withdrawal force:≥50N
7.Test voltage:6KV(50Hz.1min)
8.Insertion force:≤50N
9.Contact resistance:≤0.5mΩ
10.Operating ambient temperature:-40℃～+85℃
11.Conductor material:Copper.Tin plated
12.Suitable cable specifications:2.5mm²～6mm²(14～10AWG)
13.Waterproof Rating:IP67
14.PV cable specifications:4mm² or User defined
15.Fire rating:UL94-V0

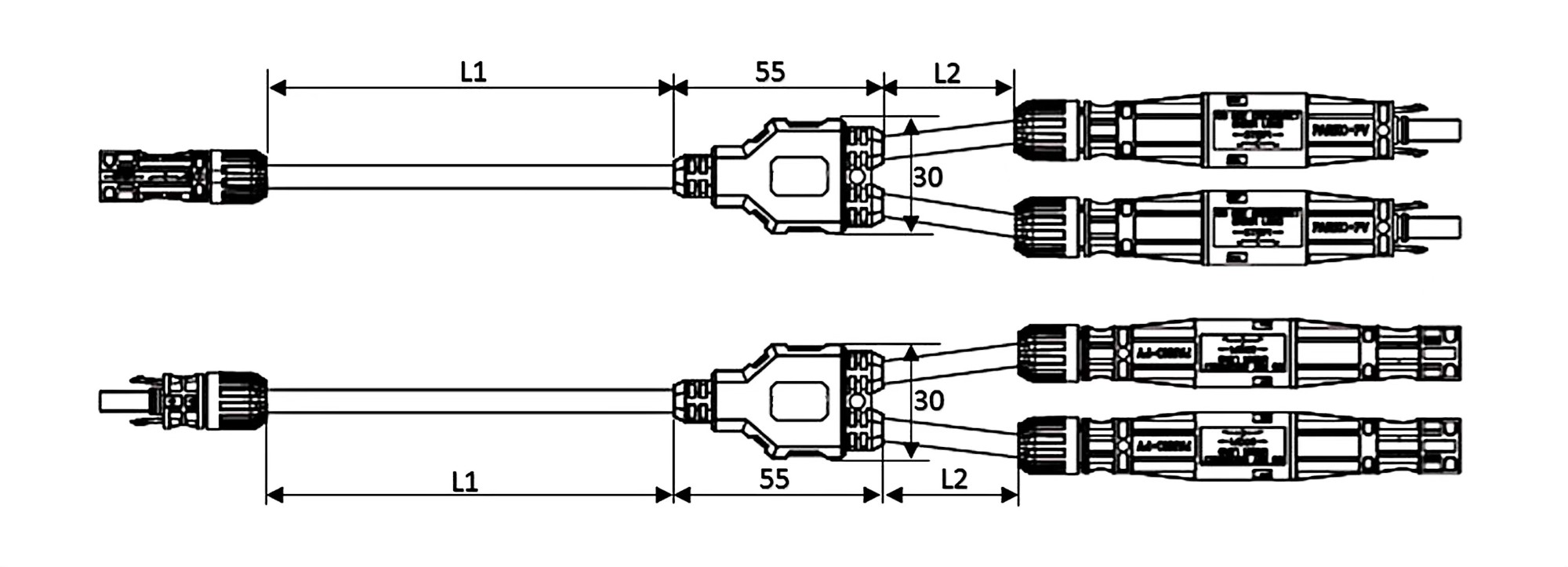

16.PV cable length:30cm or User defined
