  • 1500V DC PV Branch Connector 4to1
  • 1500V DC PV Branch Connector 4to1
  • 1500V DC PV Branch Connector 4to1
1500V DC PV Branch Connector 4to11500V DC PV Branch Connector 4to11500V DC PV Branch Connector 4to1

1500V DC PV Branch Connector 4to1

  • Product Item:PK15-JT191A
  • TUV approved cable wire
  • use imported PPO raw material
  • TUV test & approved
  • PV connectors
  • 1500V DC PV Branch Connector 4to1
    Inquiry Send Email

    Description

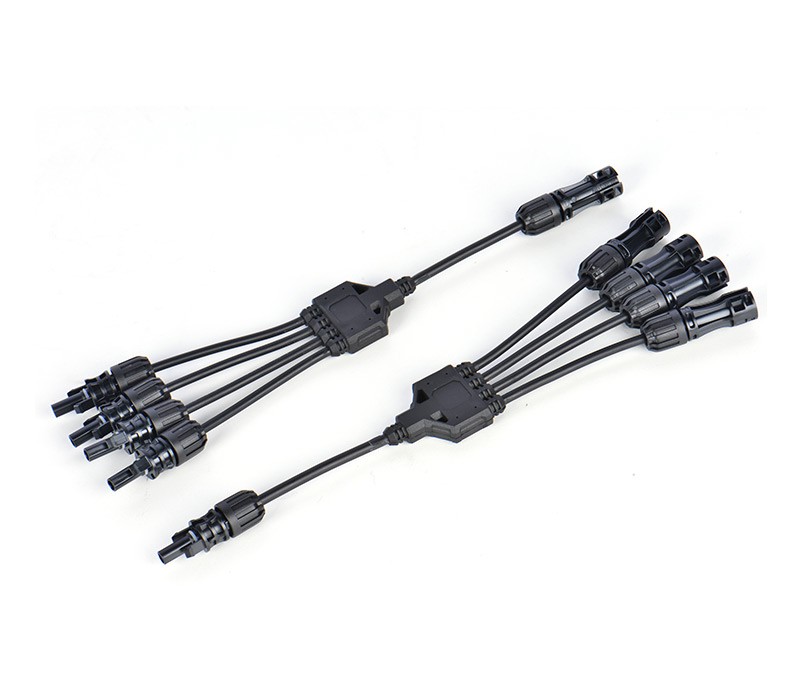

    1500V DC PV Branch Connector 4to1

    Product No:PK15-JT191A


    Advantage:

    1.  The cable are soft and easy to lay.Bounce angle does not exceed 40 degrees.
    2.  The flame retardant performance of the product has passed IEC60332-1 single flame retardant test requirements.Low smoking.
    3.  Insulation and sheath materials are resistant to electrochemical solvents.
    4.  The cable has good resistance to environmental stress cracking, heat resistance and low temperature resistance.
    5.  After the cable is processed by radiation, its mechanical and mechanical physical properties are significantly improved and the service life is increased.
    6.  Insulation and sheath materials have small thermal shrinkage, which can ensure that copper is not exposed during the work of the cable.


    Specification:

    1.Insulation material:Sabic PPO/TPE
    2.Safety Level:class II
    3.Rated voltage:30A
    4.Material RTI:110℃
    5.Rated voltage:1500V(IEC)/600V(UL)
    6.Withdrawal force:≥50N
    7.Test voltage:6KV(50Hz.1min)
    8.Insertion force:≤50N
    9.Contact resistance:≤0.5mΩ
    10.Operating ambient temperature:-40℃~+85℃
    11.Conductor material:Copper.Tin plated
    12.Suitable cable specifications:2.5mm²~6mm²(14~10AWG)
    13.Waterproof Rating:IP67

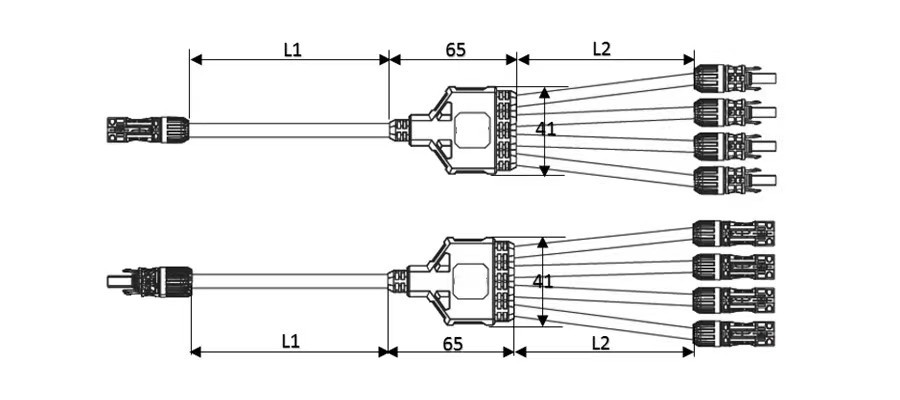

    14.PV cable specifications:6+2.5mm² or User defined
    15.Fire rating:UL94-V0
    16.PV cable length:30cm or User defined

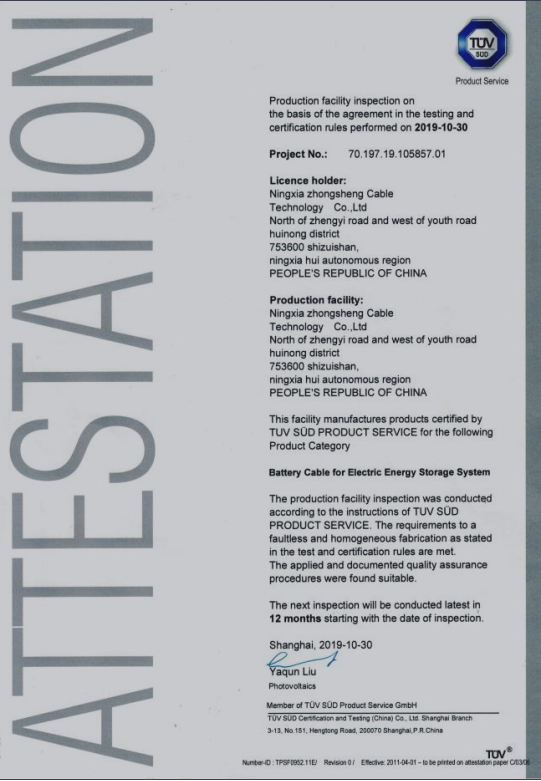

    Certification









    Contact us!

    You will get your Free quote in 1 hour. Free sample delivery in 7days.
    Sales: Molly Liang
    Email/skype:Molly.l@beyondsolar.cn
    Whatsapp:+86-18576852516


    Inquiry Us





    Related Products

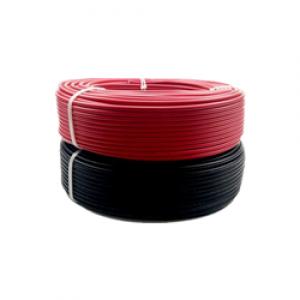

    1500V Solar Cable EN50618 Standard H1Z2Z2-K TUV approval

    1500V Solar Cable EN50618 Standard H1Z2Z2-K TUV approval

    1500V DC Fuse Connector

    1500V DC Fuse Connector

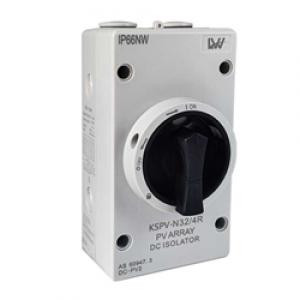

    UL TUV approved Solar Isolator Swith IP66 4P 32A DC Manufacturers

    UL TUV approved Solar Isolator Swith IP66 4P 32A DC Manufacturers

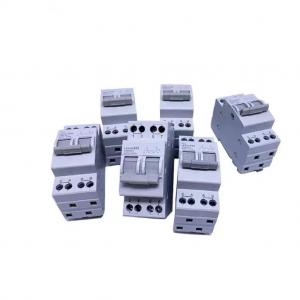

    dual power Automatic Transfer Switch 2Poles 63Amp Modular manual Changeover Switch

    dual power Automatic Transfer Switch 2Poles 63Amp Modular manual Changeover Switch

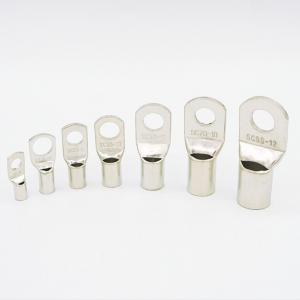

    SC Copper Cable Lug Connector Crimp Terminals for PV battery

    SC Copper Cable Lug Connector Crimp Terminals for PV battery

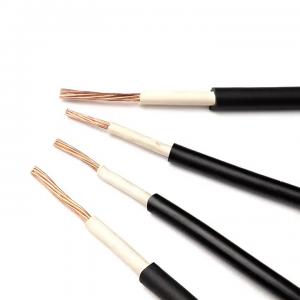

    PV Wire UL 4703 12AWG 10AWG 8AWG
