  • pv cable twin core 4mm 6mm 10mm potovoltaico photovoltaic cable for solar energy system
  • pv cable twin core 4mm 6mm 10mm potovoltaico photovoltaic cable for solar energy system
pv cable twin core 4mm 6mm 10mm potovoltaico photovoltaic cable for solar energy systempv cable twin core 4mm 6mm 10mm potovoltaico photovoltaic cable for solar energy system

pv cable twin core 4mm 6mm 10mm potovoltaico photovoltaic cable for solar energy system

  • TUV approved
  • Dual wall Insulation,electron beam cross- linked
  • Halogen free,flame retardant,low toxicity
  • High current carrying capacity
  • solar-cable-twin-core
    Inquiry Send Email

    Description

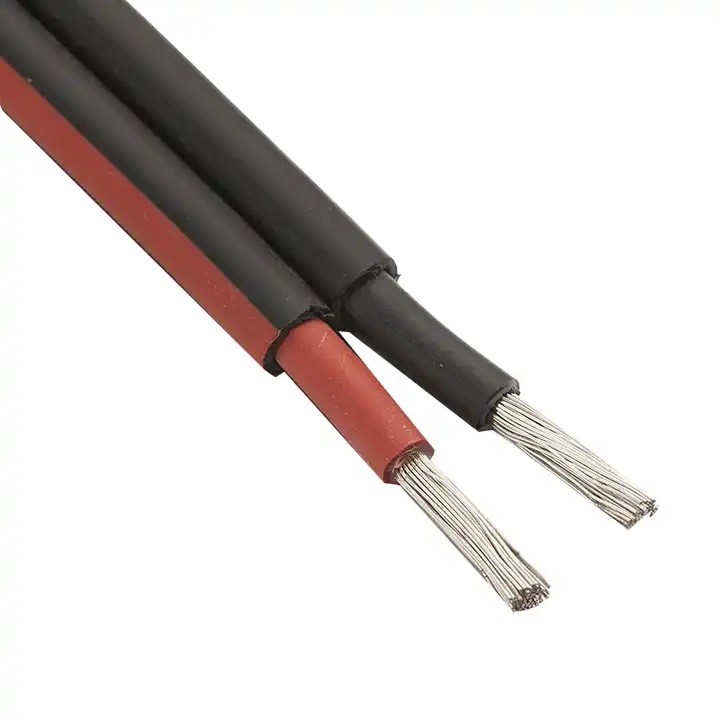

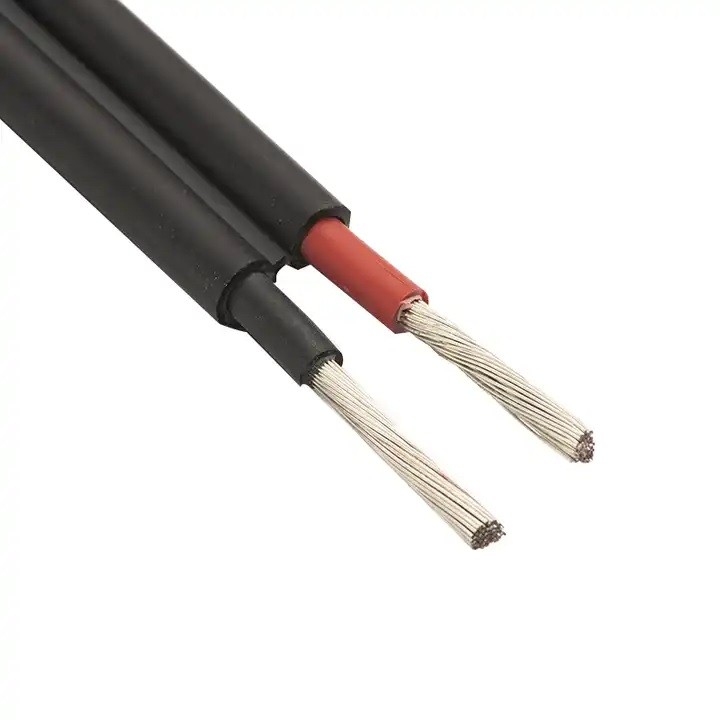

    solar cable twin core

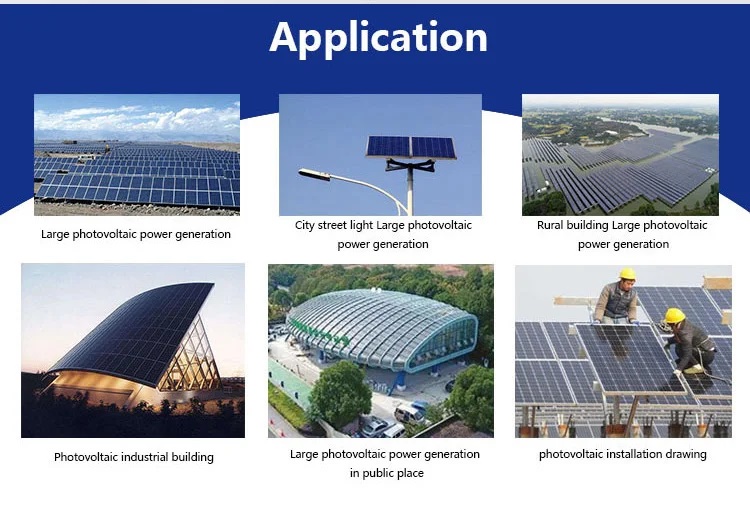

    (H1Z2Z2-K) European standard solar cable intended for the interconnection within   photovoltaic systems such as solar panel arrays. Suitable for fixed installations, internal and external, within conduit or systems, but not direct burial applications.

    In a solar power system of rated voltage Uo=1.5KV, PV cables are used to connect between solar panels and inverters.


    Advantages

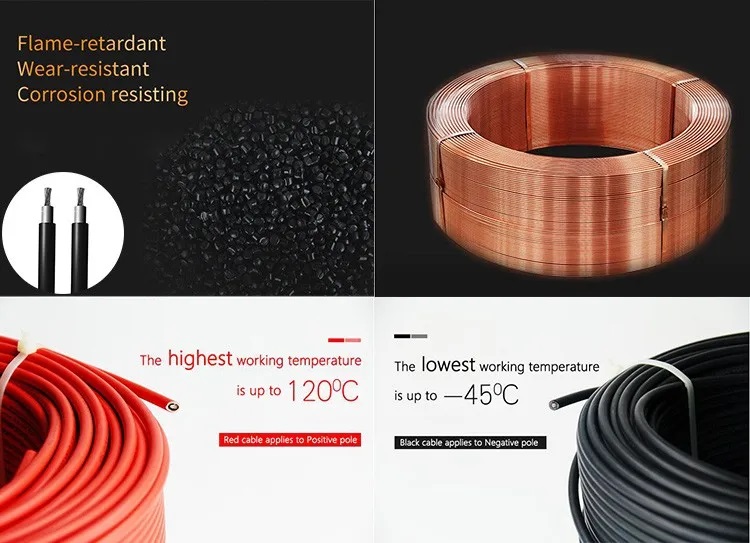

    1.E-beam cross-linked compounds
    2.High resistance against UV, ozone and hydrolyzation
    3.High temperature resistance, materials will not melt or flow
    4.Flexibility under cold conditions
    5.Long usable life, expected usable life over 25 years
    6.Applicable to all common connectors

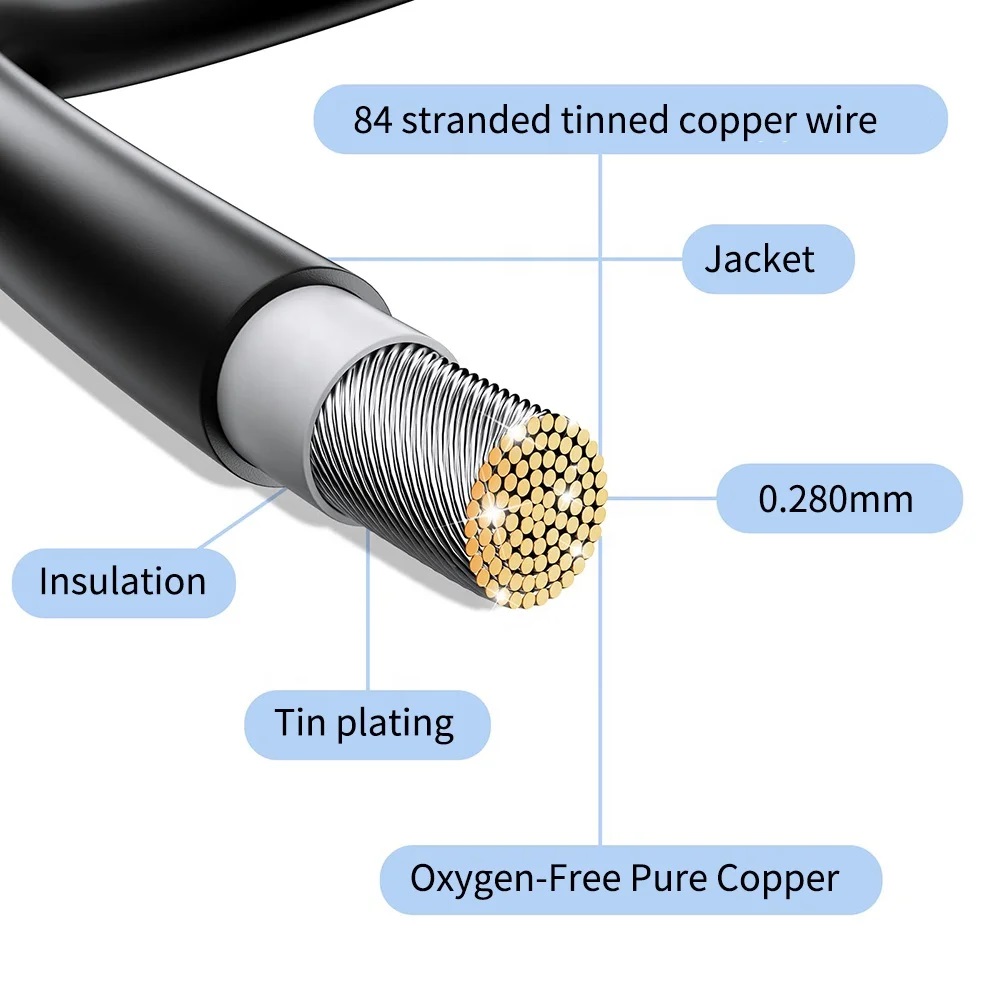

    Construction

    1.Conductor : Soft tinned annealed copper according to IEC 60228, class 5

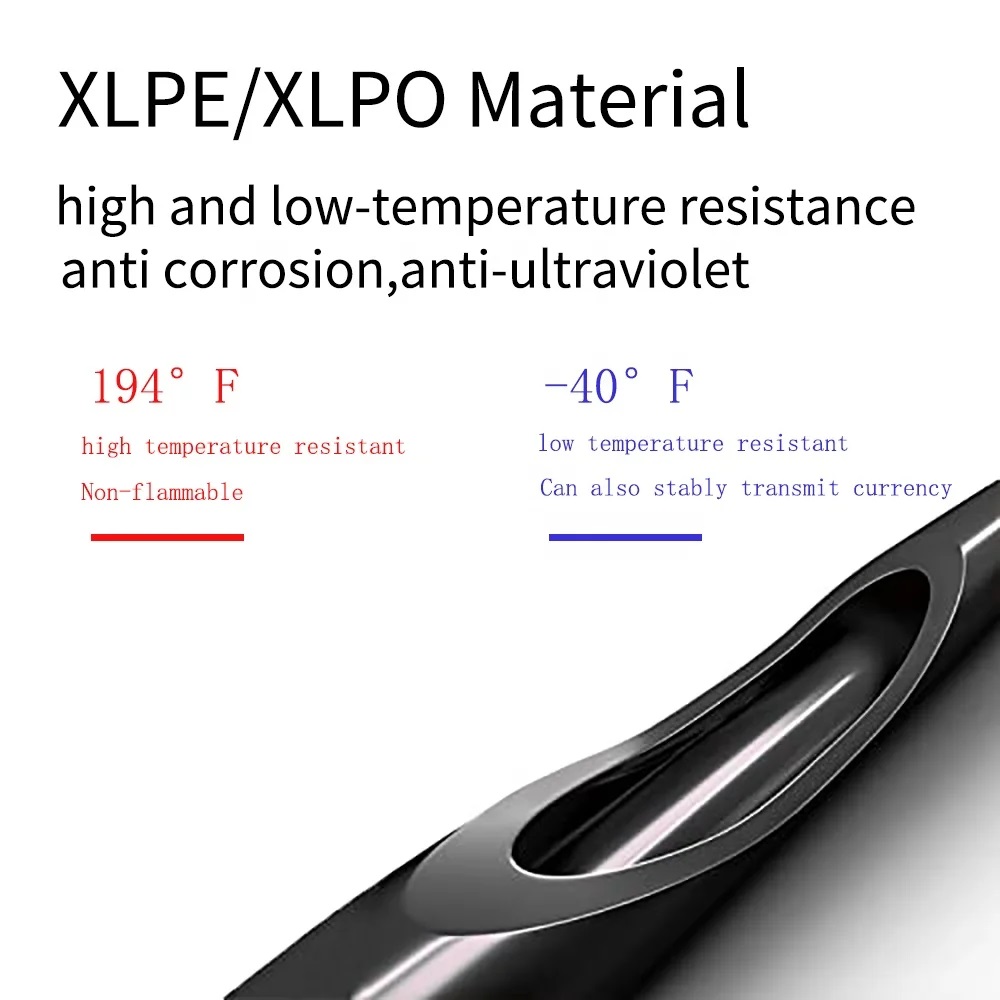

    2.Insulation :XLPE,flame retardant, halogen free, E-Beam cross-linked compounds
    3.Jacket:XLPE, flame retardant, halogen free, E-Beam cross-linked compounds,
    UV and ozone resistant, black / white marking
    4.Jacket color : All the chromatographic



    Specifications:

    Conductor Outer Jacket Insulation Construction

    Outer Dia.

    mm

    Conductor resistance

    (20℃)

    Current
    n✕mm² Color Color N/mm A B max.mΩ/m A
    2✕4.0
    Black Black/Red 56/0.28 5.50±0.2
    12.00±0.3
    5.09 55.0
    2✕6.0 Black Black/Red 84/0.28 6.10±0.2
    13.5±0.3
    3.39 70.0
