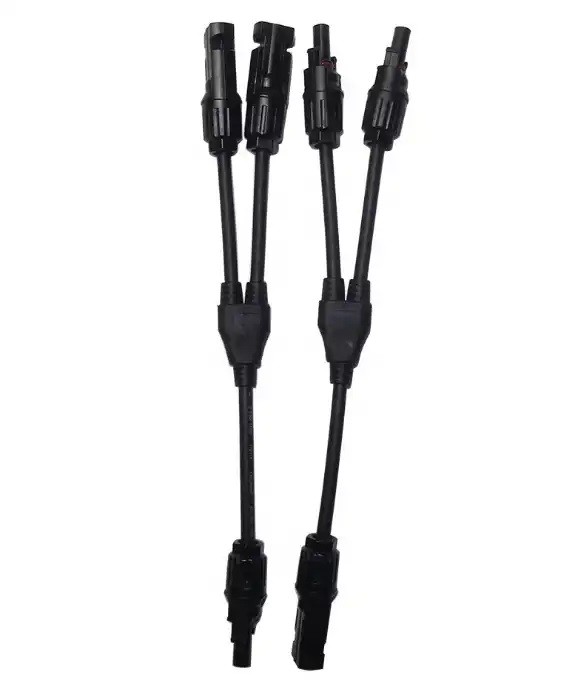

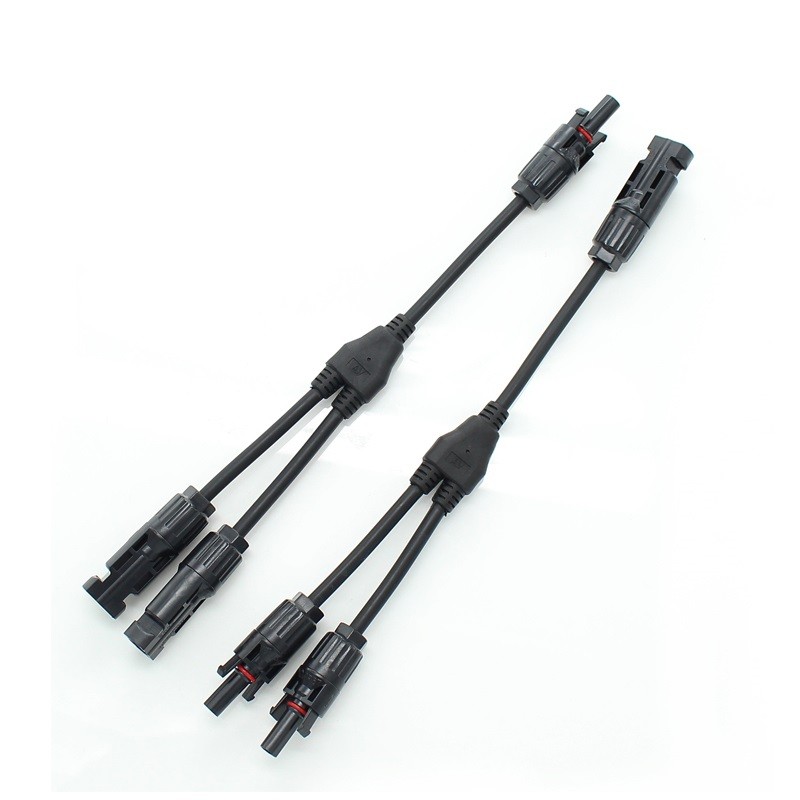

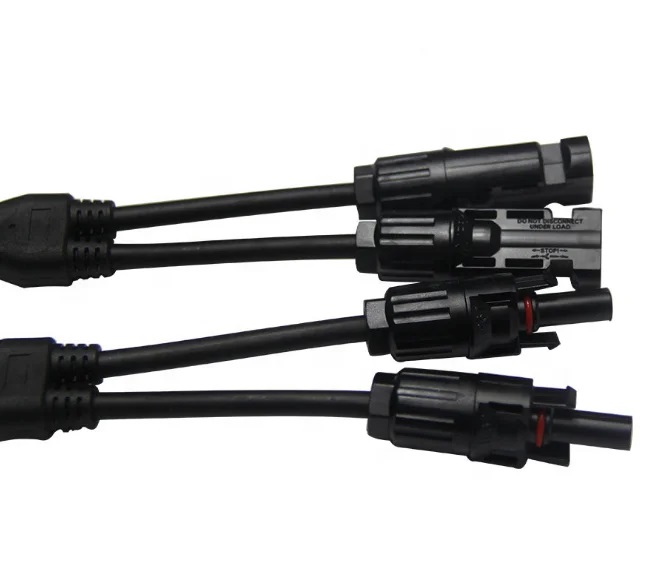

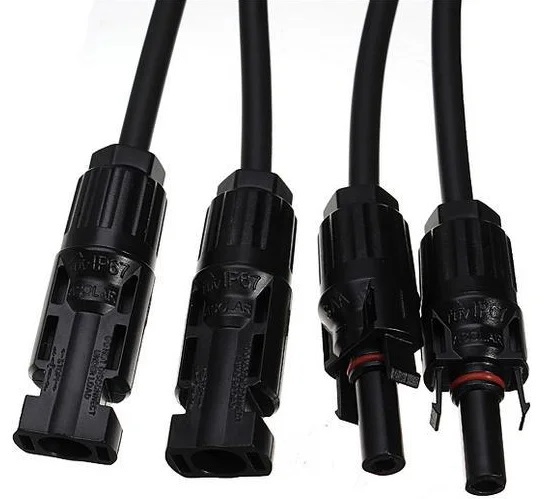

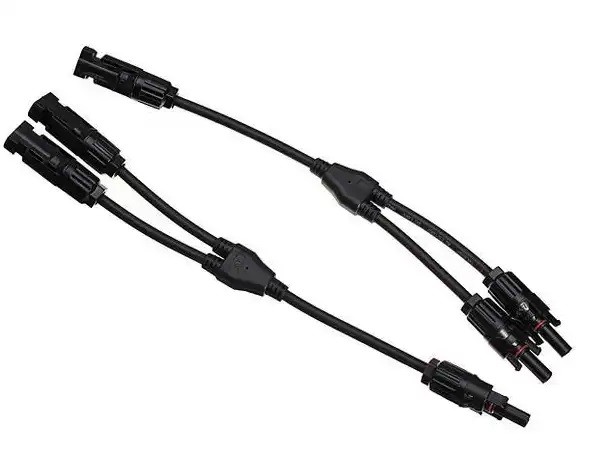

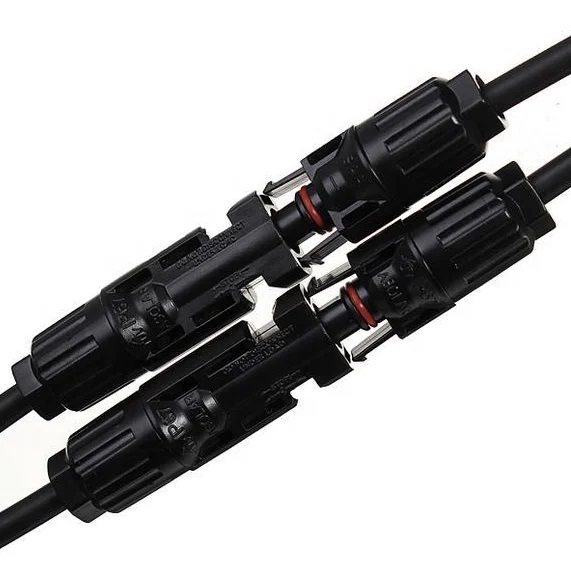

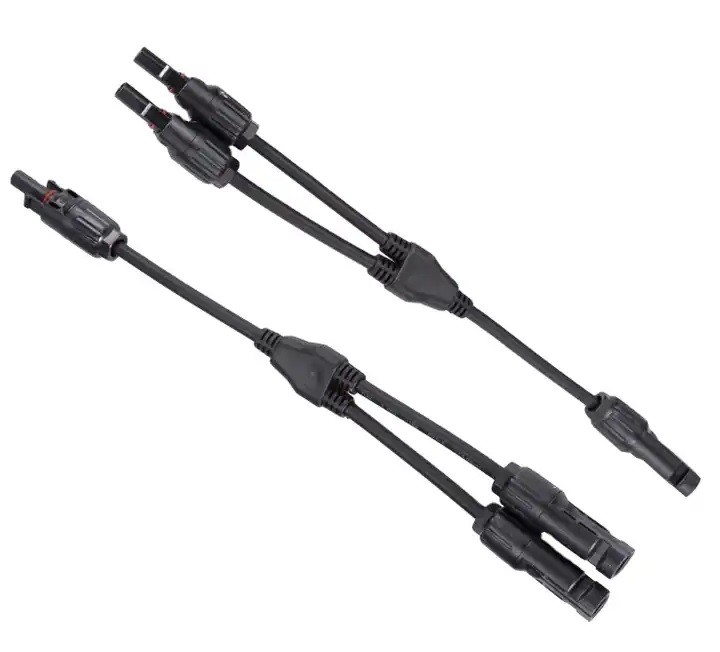

  5. 1000V MC4 Y branch connector 2 to 1 Para
  • 1000V MC4 Y branch connector 2 to 1 Parallel IP67with 4mm2 cable
  • 1000V MC4 Y branch connector 2 to 1 Parallel IP67with 4mm2 cable
  • 1000V MC4 Y branch connector 2 to 1 Parallel IP67with 4mm2 cable
  • 1000V MC4 Y branch connector 2 to 1 Parallel IP67with 4mm2 cable
1000V MC4 Y branch connector 2 to 1 Parallel IP67with 4mm2 cable1000V MC4 Y branch connector 2 to 1 Parallel IP67with 4mm2 cable1000V MC4 Y branch connector 2 to 1 Parallel IP67with 4mm2 cable1000V MC4 Y branch connector 2 to 1 Parallel IP67with 4mm2 cable

1000V MC4 Y branch connector 2 to 1 Parallel IP67with 4mm2 cable

  • Product Item:PV-Y2-1500
  • Rated Current:20A-30A
  • Waterproof: IP67
  • Contact:Tin-plated copper
  • MC4 T Y branch
    Inquiry Send Email

    Description

    1000V MC4 Y branch connector 2 To 1


    Description:
    1. l set include 2 male and 1 female or 1 male and 2 female connector
    2. this photovoltaic branch connector set is the perfect solution to link any number of solar panel
    3. with the capacity of anti-aging and resistance to ultraviolet radiation on the out cover
    4. the length of cable with connector are depend on the customer need it
    5. with convenient installation, strong commonality
    6. to meet the using requirement under bad outdoor condition

    Specification

    Contact: Tin-plated copper
    Waterproof: IP67
    Connector material: 100% PPO
    Rtaed Voltage: TUV1000V DC
    Rtaed Current: 20A-30A
    Pin Dimension: 4.0mm
    Proof Voltage: 6000V AC(1 min) 2200V DC(1 min)
    Temperature Range: -40˚C~+85˚C
    Flame Class: UL94V-0
    Resistance: ≤5mΩ
    Pollution degree: 2
    Protection Class: Class II
    Cable Size: 4mm2
    Length: 30cm

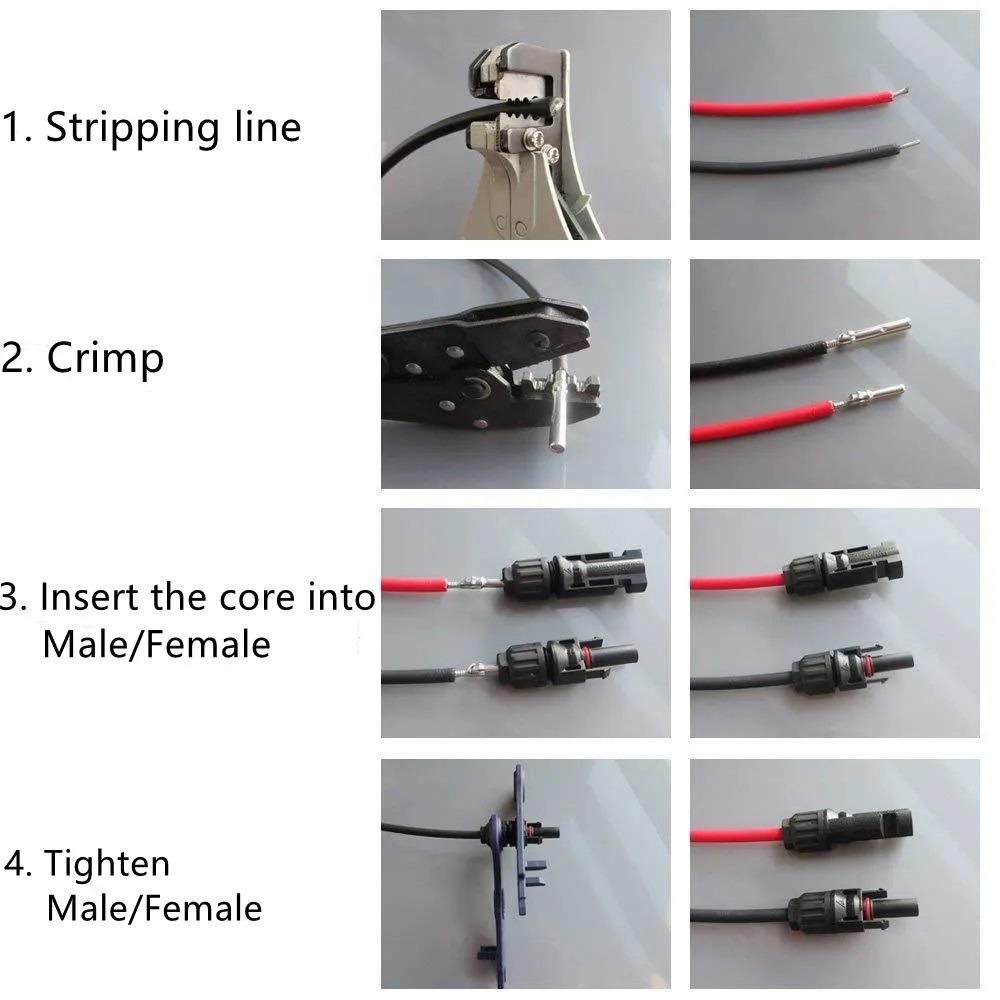

    Detail diagram







    Contact us!

    You will get your Free quote in 1 hour. Free sample delivery in 7days.
    Sales: Molly Liang
    Email/skype:Molly.l@beyondsolar.cn
    Whatsapp:+86-18576852516

    Inquiry Us
