PV3-1 Solar PV Combiner box 3 strings DC 500V 1000V Solar system combination box 3 in 1out

PV3-1 Solar PV Combiner box 3 strings DC 500V 1000V Solar system combination box 3 in 1out

Product Item：PV3-1

used in AC 50-60hz,below 500V illuminating and mini power controling circuit as over current

Easy installation and maintenance

Simplify the physical wiring between solar panel and inverter

Description

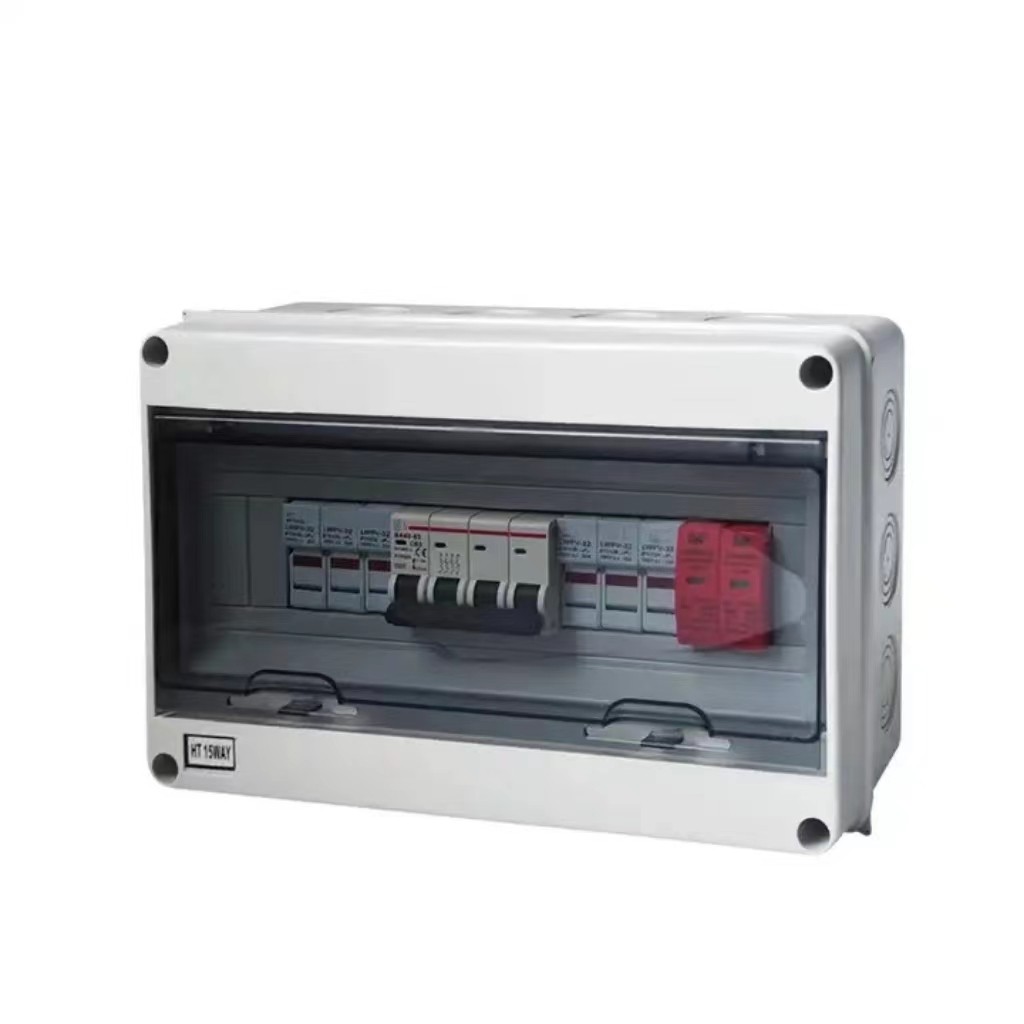

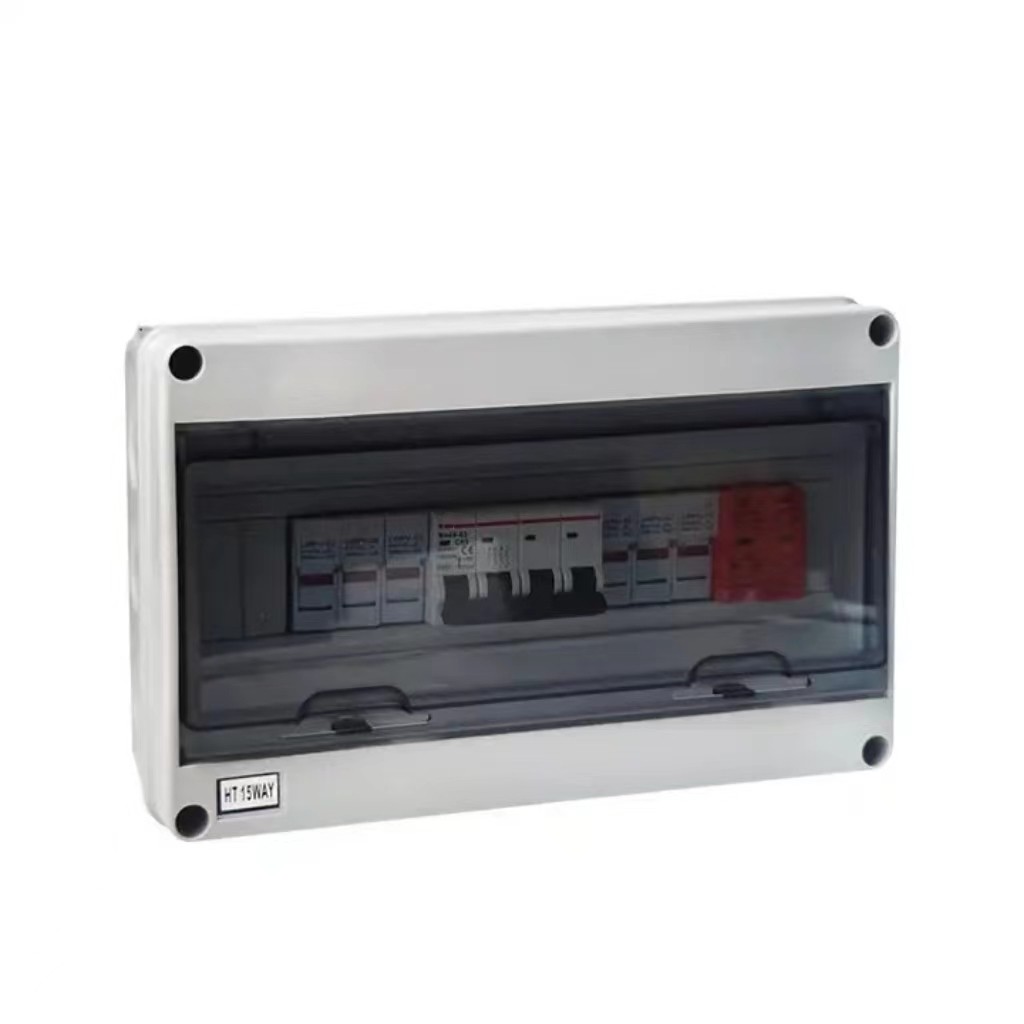

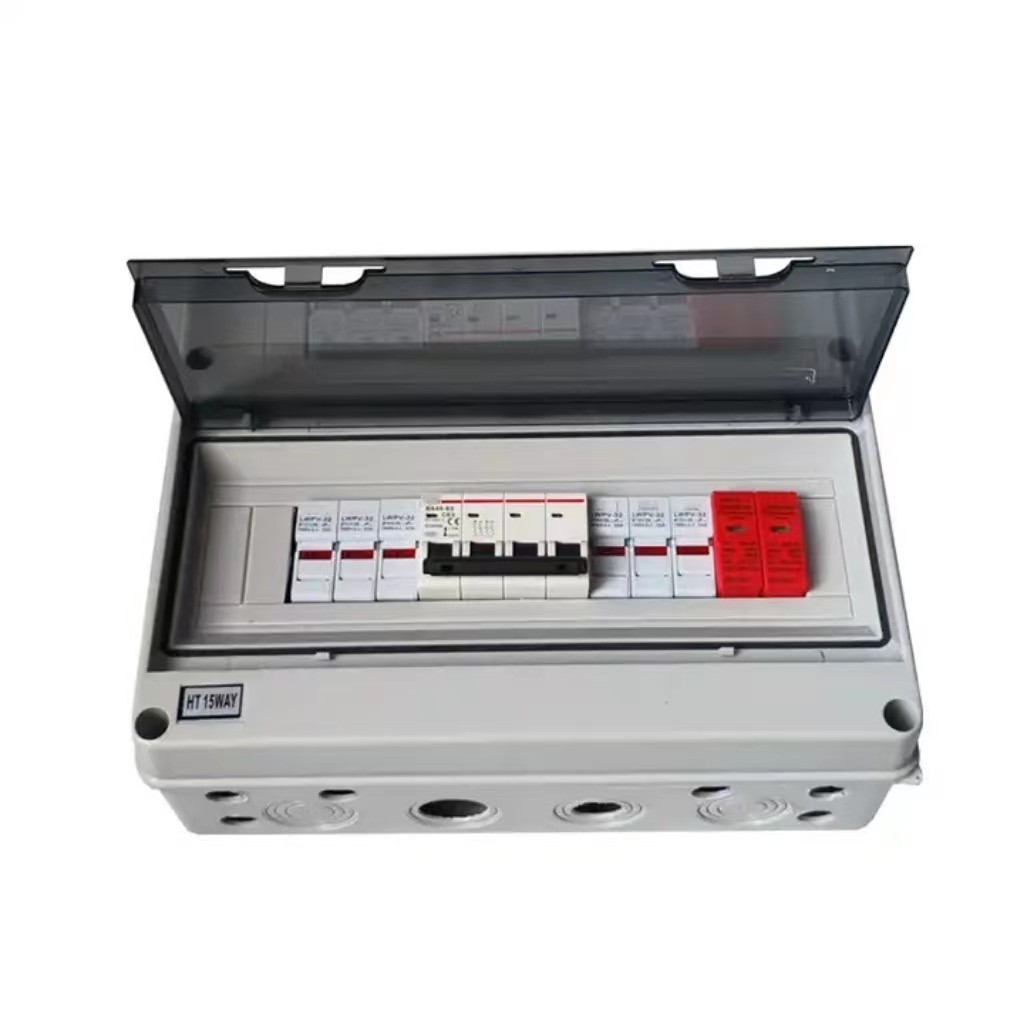

PV3-1 Solar PV Combiner Box

PV String DC Combiner Boxes are key components in the PV Solar power systems, which are placed between Solar Modules and the Inverters.

Specification

Name	Solar Combiner Box
Model number	PV3-1
Input	3
Output	1
Rated working voltage	DC 500V 1000V
Protection Level	IP65
Warranty	2 Years
Installation Site	Solar Energy Station

Advantage:
Easy machining with normal tools
IP65
Wide operation temperature range
Fire Resistance
Non-conductive
Good resistance to chemical corrosion
Light weight
Excellent insulating properties
Cost-effective material for harsh environments

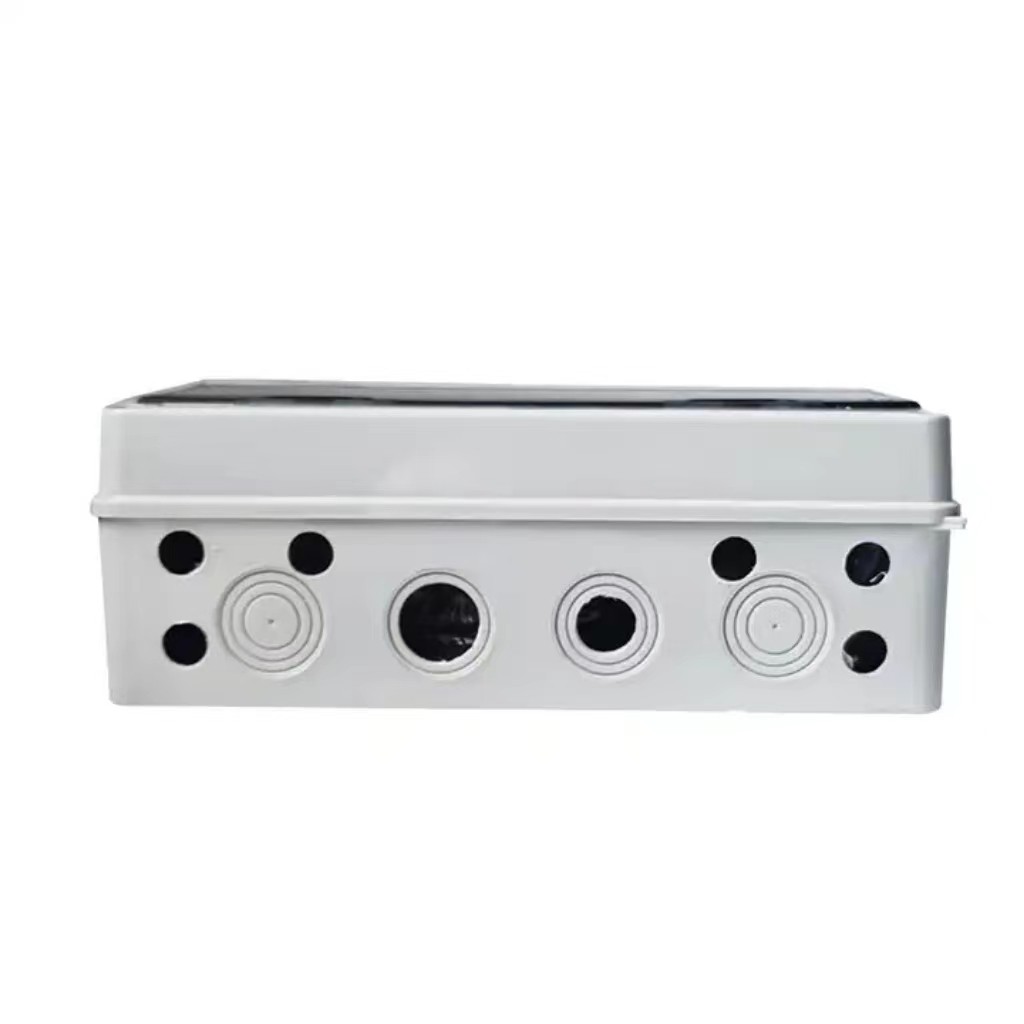

Powder coated Chromium-Nickel Steel enclosure:
Easy machining with normal tools
Thickness ≥1.2mm Powder coated cold rolled
Surface finish: with the process of pickling and parkerising 80-120 μm
IP65 waterproof, dust proof,anti-corrosion and UV resistance
Durable: HRPV series combiner boxes are built to withstand harsh
environmental exposure
Suit for long distance transport

The PV bus box simplifies the physical wiring between the solar panel and the inverter.
Fault current protection for each PV series.
Fault alarm.
Easy to install and maintain.
