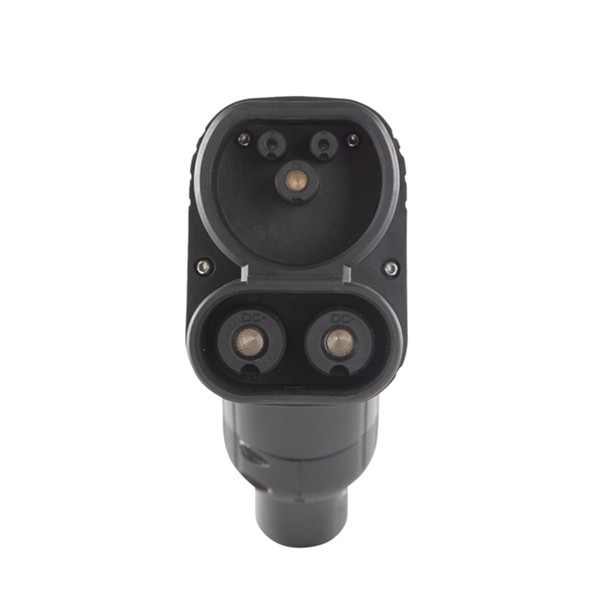

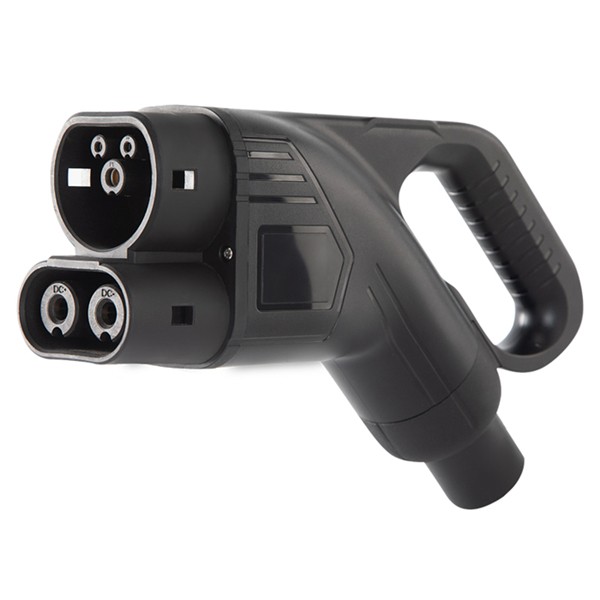

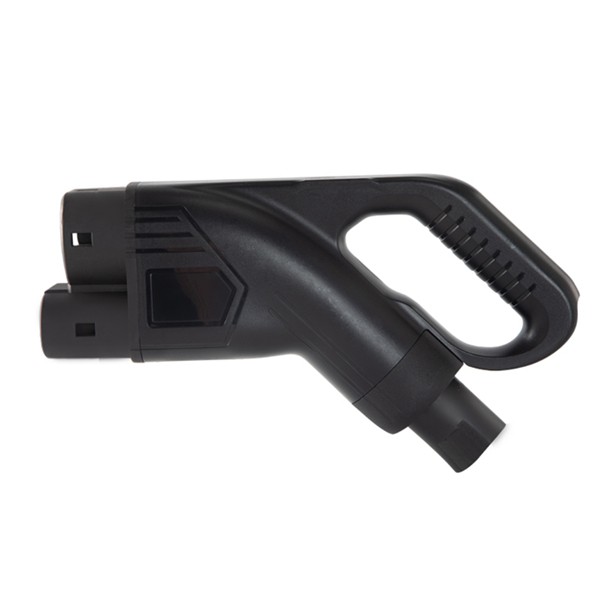

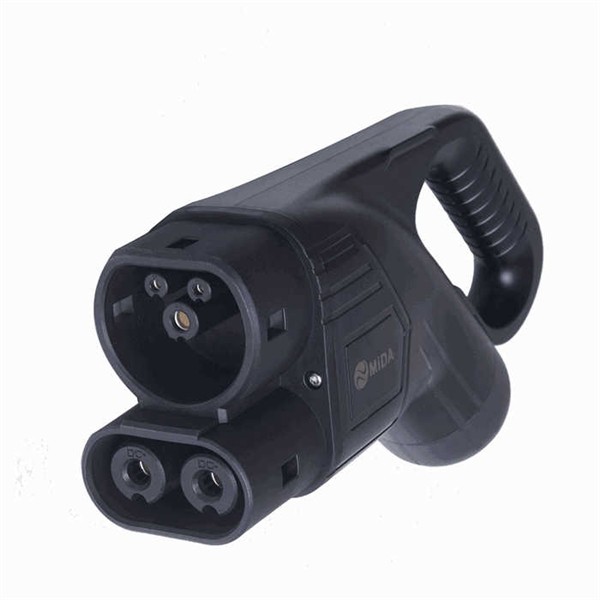

  • CCS Combo 2 Connector 200A 150A DC Charging Plug 1000V DC
  • CCS Combo 2 Connector 200A 150A DC Charging Plug 1000V DC
  • CCS Combo 2 Connector 200A 150A DC Charging Plug 1000V DC
  • CCS Combo 2 Connector 200A 150A DC Charging Plug 1000V DC
CCS Combo 2 Connector 200A 150A DC Charging Plug 1000V DCCCS Combo 2 Connector 200A 150A DC Charging Plug 1000V DCCCS Combo 2 Connector 200A 150A DC Charging Plug 1000V DCCCS Combo 2 Connector 200A 150A DC Charging Plug 1000V DC

CCS Combo 2 Connector 200A 150A DC Charging Plug 1000V DC

  • Product Item：MIDA-CSS2-EV80P
  • Rated Current：80A /125A/150A/200A
  • OperationVoltage：DC 1000V
  • Insulation Resistance：＞1000MΩ（DC500V）
  • DC Max Charging Power: 127.5KW
    • DC EV chargering
    Inquiry Send Email

    Description

    Features 1. Meet 62196-3 IEC 2011 SHEET 3-Im standard
    2. Concise appearance, support back installation
    3. Back Protection class IP55
    4.Max charging power:127.5kW
    5. AC Max charging power:41.5kW
    Mechanical Properties 1. Mechanical life : no-load plug in/pull out＞10000 times
    2. Impat of external force:can afford 1m drop amd 2t vehicle run over pressure
    Electrical Performance 1. DC input: 80A ,125A ,150A ,200A 1000V DC MAX
    2. AC input: 16A 32A 63A 240/415V AC MAX
    3. Insulation resistance：＞2000MΩ（DC1000V）
    4. Terminal temperature rise：＜50K
    5. Withstand Voltage：3200V
    6. Contact resistance: 0.5mΩ Max
    Applied Materials 1. Case Material: Thermoplastic,flame retardant grade UL94 V-0
    2. Pin：Copper alloy,silver +thermoplastic on the top
    Environmental Performance 1. Operating temperature: -30°C~+50°C
    Model selection and the standard wiring
    Model Rated Current Cable Specigication Cable Color
    MIDA-CSS2-EV150P 150A 2 X 50mm²+1 X 25mm² +6 X 0.75mm² Orange or Black
