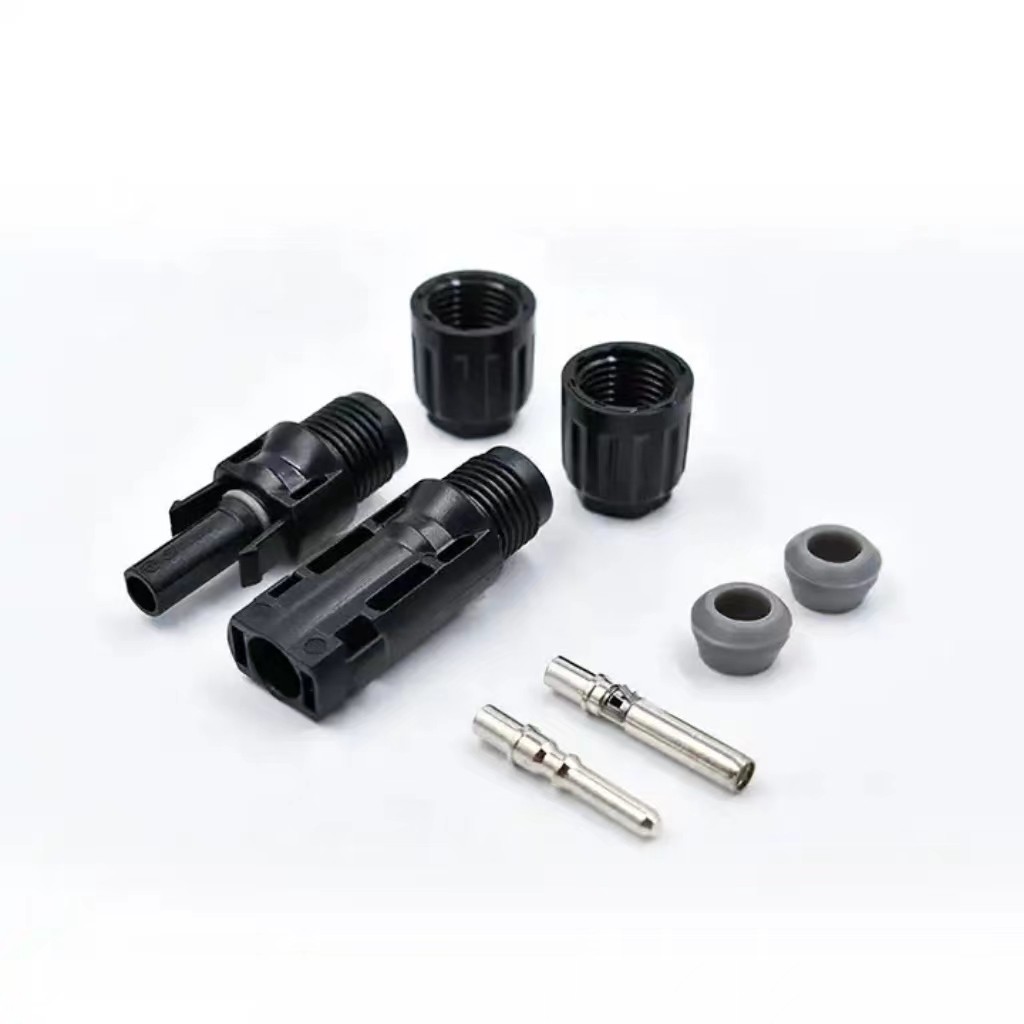

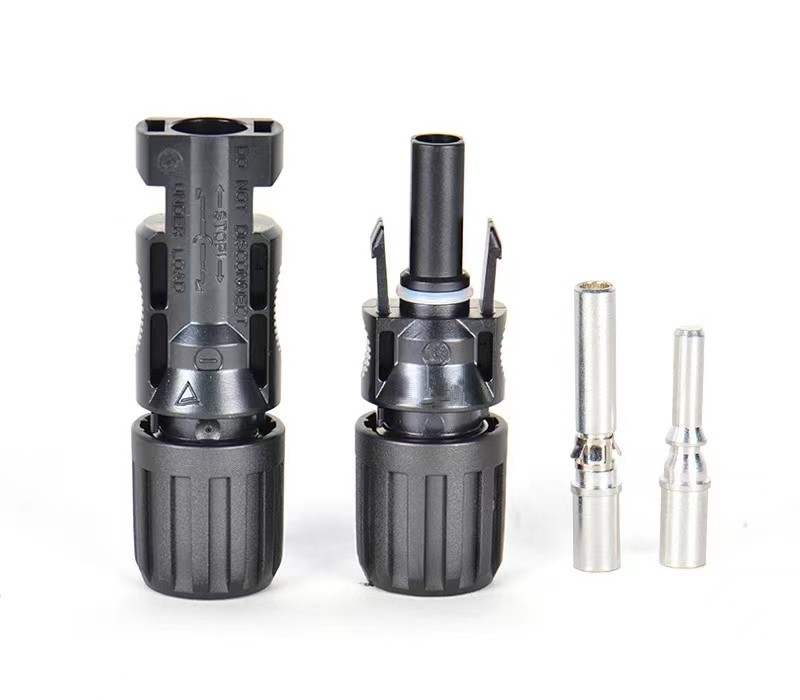

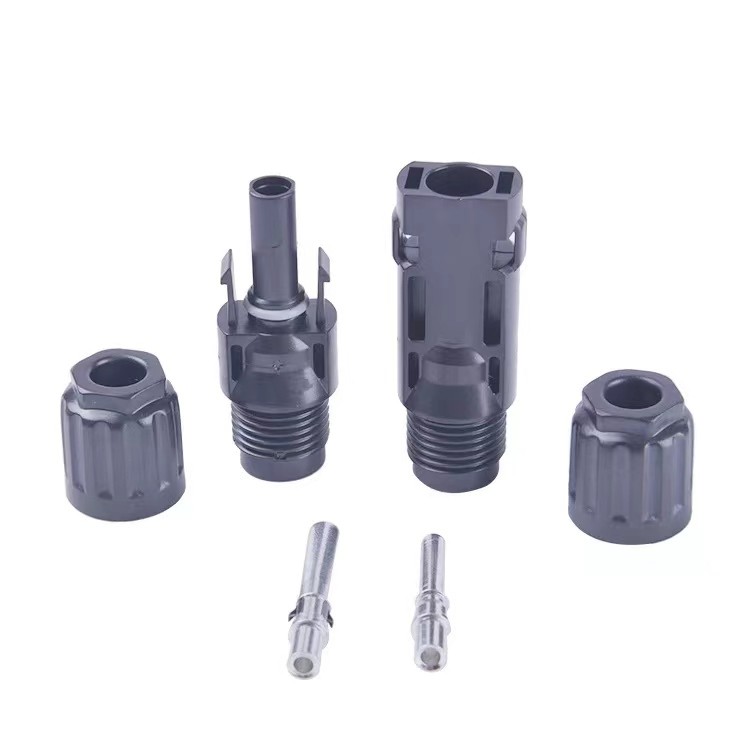

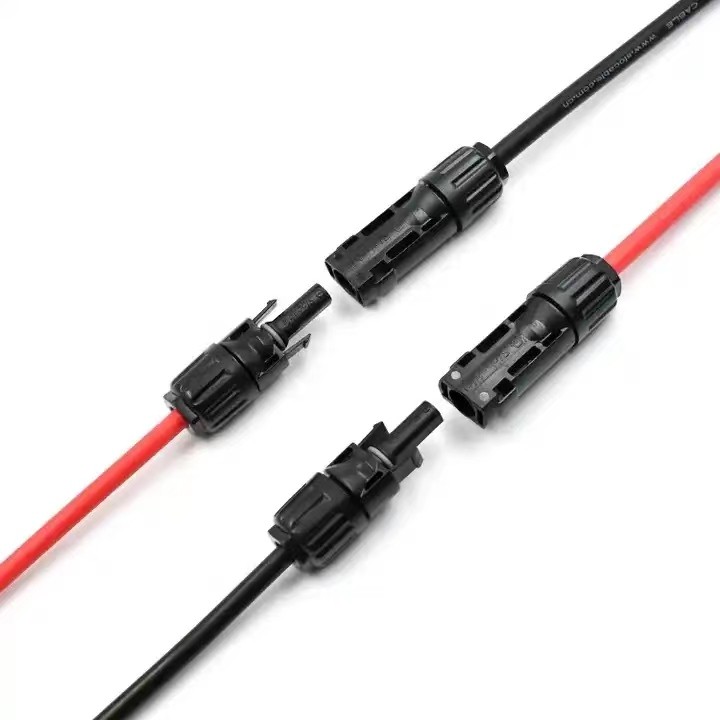

1000V MC4 connector up to 40-50A Solid pin IP 68

1000V MC4 connector up to 40-50A Solid pin IP 68

Product Item：PV-C-1000S

Solid pin

Rated current:30A-50A

Material:PPO

Description

1000V MC4 connector solid pin high current

Product No:PV-C-1000S

Insulation material	Sabic PPO/PA	Safety degree	Class II
Rated current	30A	Material RTI	110℃
Rated voltage	1000V(TüV)/600V(UL)	Withdrawal force	≥300N
Test voltage	6KV(50Hz.1min)	Insertion force	≤50N
Contact resistance	≤50mΩ	Ambient temperature range	-40℃～+85℃
Contact material	Copper.Tin plated	Suitable wire size range	2.5mm²～6mm²(14～10AWG)
Water proof Degree	IP68(1m,1H)	Pin Dimension	ø4.0mm
Flame class	UL94-V0	Standard	TUV IEC 62852

Description:

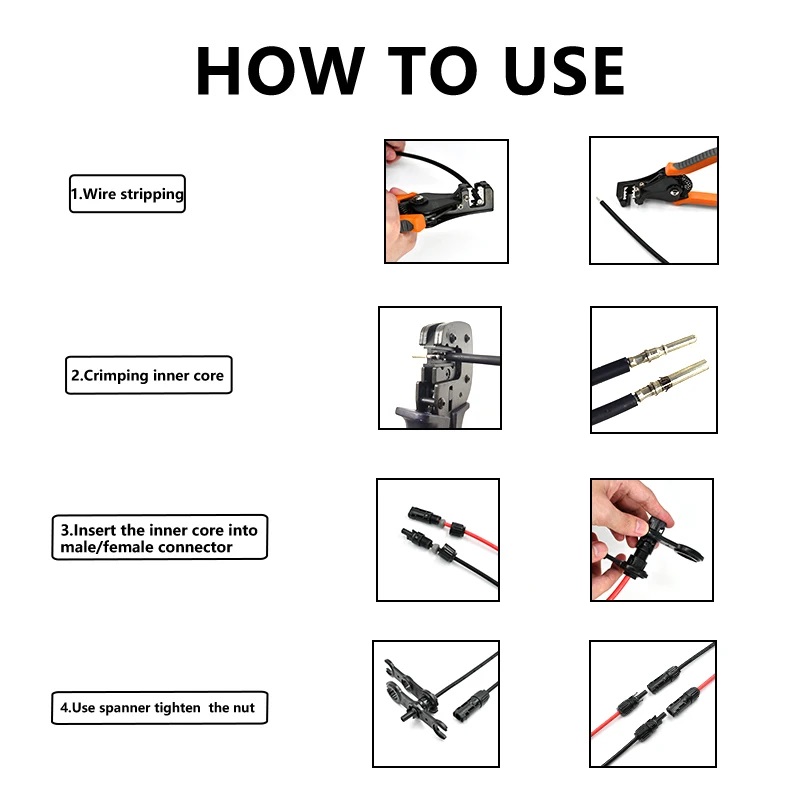

Simple on-site processing
Mating safety provided by keyed housings
Mutiple plugging and unplugging cycles
Accomodates PV cable with different insulation diameters
High Voltage and High Current carrying capacity
TUV and CE approved
Competitive price
IP68 waterproof protection

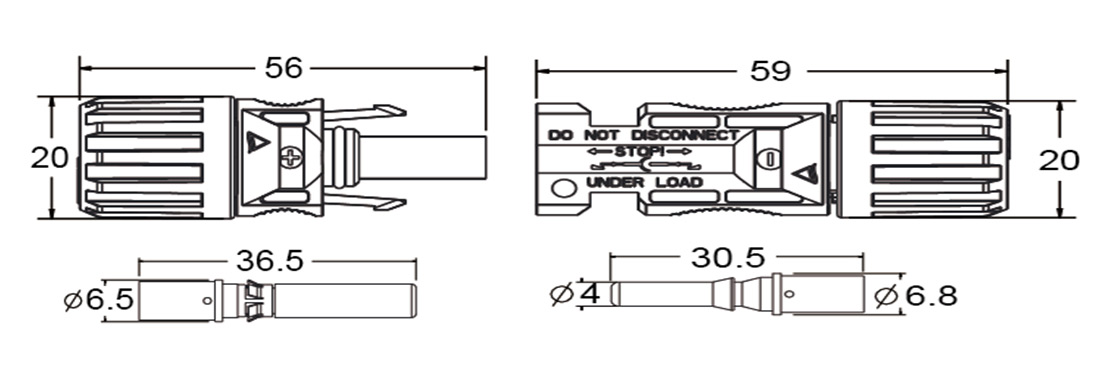

Size

1. High voltage & current endurance capability; use for 1000V system;

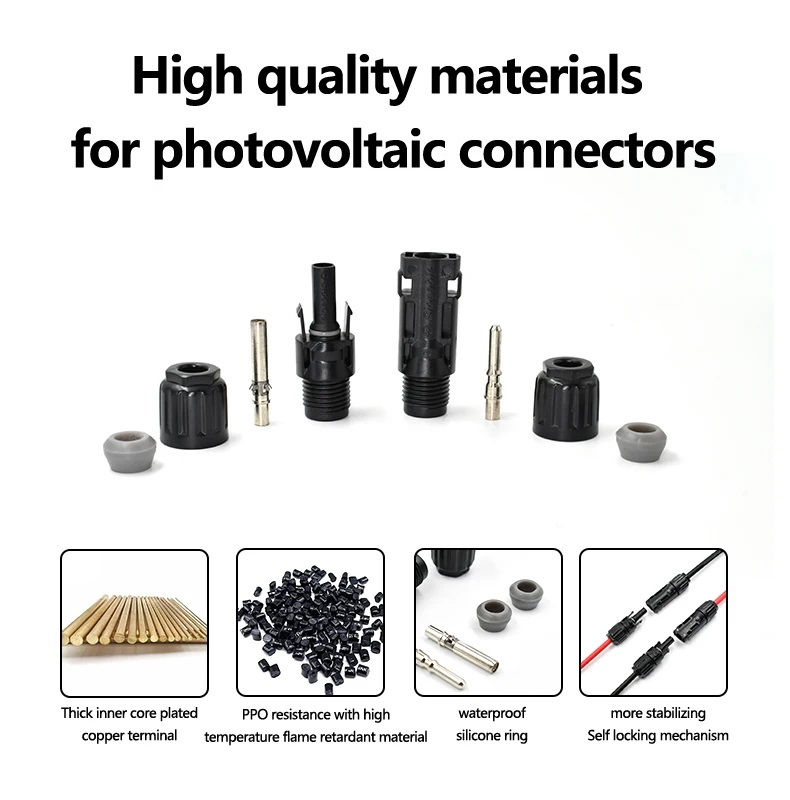

2. Good impact resistance & ageing resistance capability; use imported PPO raw material;
3. Lower contact resistance to 0.30 mΩ, contact material: Brass with Tin plated;
4. Innovative seal & waterproof design,
5. High performance for ambient temperature range from -40℃ ～ +85℃, UV resistance, insulation, suitable for long time outdoor use.
6. Good safety performance, TUV test & approved, sell well in Euro & US.
7. Easy & quick for installation, high pull-out force, stable self-locking structure, long working life above to 20 years.
8. Compatible with MC4, EVO2, QC4 etc. PV connectors.
