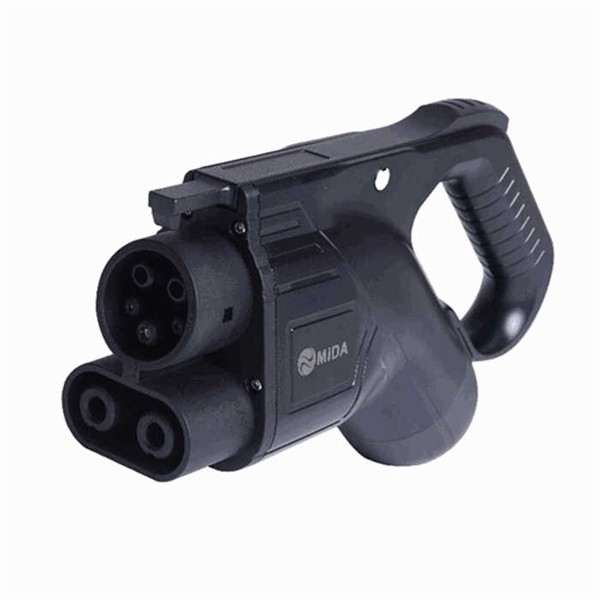

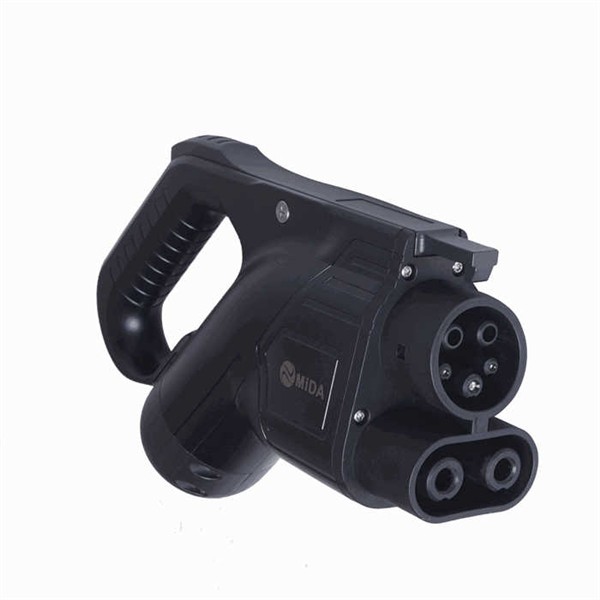

Description
| Features | 1. Meet 62196-3 IEC 2014 SHEET 3-IIIB standard | ||||||||
| 2. Concise appearance, support back installation | |||||||||
| 3. Back Protection class IP65 | |||||||||
| 4. DC Max charging power: 90kW | |||||||||
| 5. AC Max charging power:41.5kW | |||||||||
| Mechanical properties | 1. Mechanical life : no-load plug in/pull out＞10000 times | ||||||||
| 2. Impat of external force:can afford 1m drop amd 2t vehicle run over pressure | |||||||||
| Electrical Performance | 1. DC input: 80A,150A , 200A1000V DC MAX | ||||||||
| 2. AC input: 63A 240/415V AC MAX | |||||||||
| 3. Insulation resistance：＞2000MΩ（DC1000V） | |||||||||
| 4. Terminal temperature rise：＜50K | |||||||||
| 5. Withstand Voltage：3200V | |||||||||
| 6. Contact resistance: 0.5mΩ Max | |||||||||
| Applied Materials | 1. Case Material: Thermoplastic,flame retardant grade UL94 V-0 | ||||||||
| 2. Pin：Copper alloy,silver + thermoplastic on the top | |||||||||
| Environmental performance | 1. Operating temperature: -30°C~+50°C | ||||||||
| Model selection and the standard wiring | |||||||||
| Model | Rated current | Cable specigication | Cable Color | ||||||
| MIDA-CSS1-EV150P | 150Amp | 2 X 50mm²+1 X 6mm² +6 X 0.75mm² | Orange or Black | ||||||
