Description
| Features | 1. Meet GB/T 20234.2-2015 regulations and requirements | |||||||

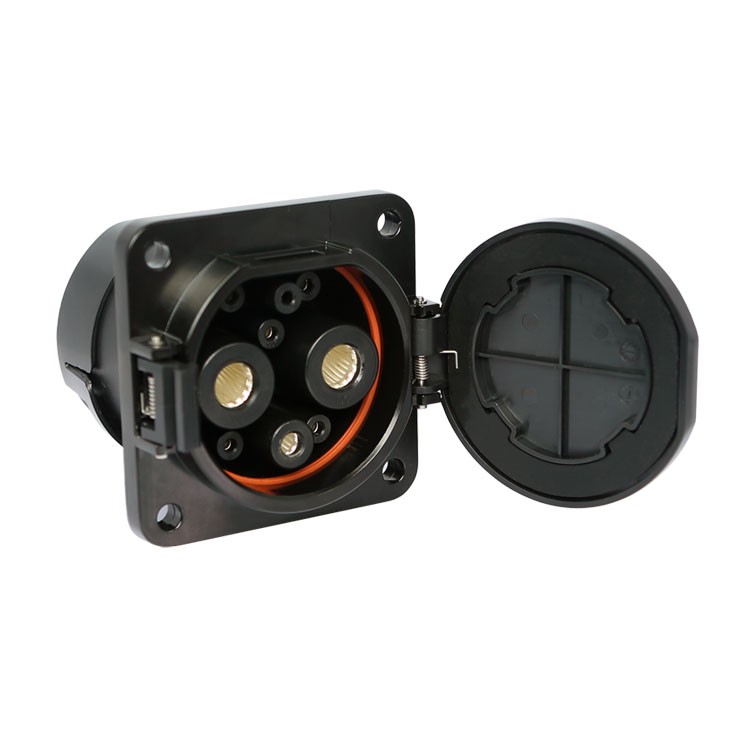

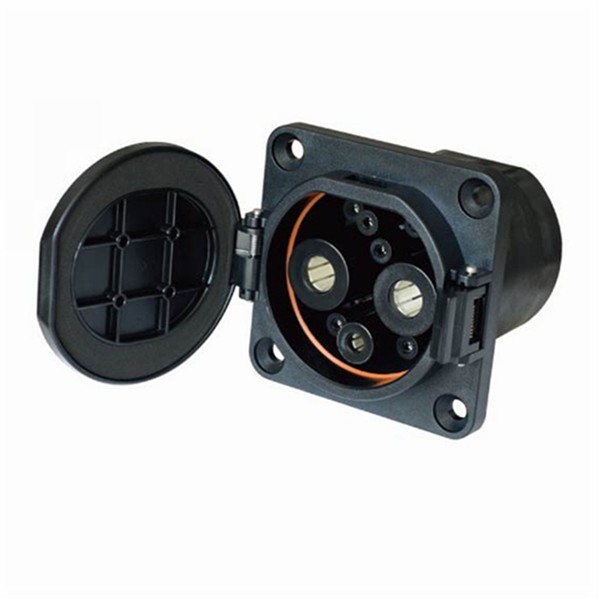

| 2. Nice appearance，left flip protection,support front installation | ||||||||
| 3. Reliability of materials, antiflaming,pressure -resistant,abrasion resistance | ||||||||
| 4. Excellent protection performance,protection grade IP55(working condition) | ||||||||
| Mechanical properties | 1. Mechanical life : no-load plug in/pull out＞10000 times | |||||||
| 2. Coupled insertion force:>45N<80N | ||||||||
| Electrical Performance | 1. Rated current：80A/125A/200A/250A | |||||||
| 2. Operation voltage： 750V /1000V | ||||||||
| 3. Insulation resistance：＞2000MΩ（DC500V） | ||||||||
| 4. Terminal temperature rise：＜50K | ||||||||
| 5. Withstand Voltage：2000V | ||||||||
| 6. Operating temperature: -30°C~+50°C | ||||||||
| Applied Materials | 1. Case Material: Thermoplastic,flame retardant grade UL94 V-0 | |||||||
| 2. Pin：Copper alloy,silver plating | ||||||||
| Model selection and the standard wiring | ||||||||
| Model | Rated Current | Cable Specigication | ||||||
| NV2-DSD-G-EV80S | 80Amp | 3 X 16mm² + 2 X 4mm² + 2P(4 X 0.75mm²)+ 2P(2 X 0.75mm²) | ||||||
| NV2-DSD-G-EV125S | 125Amp | 2 X 35mm² + 1 X 16mm² + 2 X 4mm² + 2P(4 X 0.75mm²)+ 2P(2 X 0.75mm²) | ||||||
| NV2-DSD-G-EV200S | 200Amp | 2 X 70mm² + 1 X 25mm² + 2 X 4mm² + 2P(4 X 0.75mm²)+ 2P(2 X 0.75mm²) | ||||||
| NV2-DSD-G-EV250S | 250Amp | 2 X 80mm² + 1 X 25mm² + 2 X 4mm² + 2P(4 X 0.75mm²)+ 2P(2 X 0.75mm²) | ||||||
