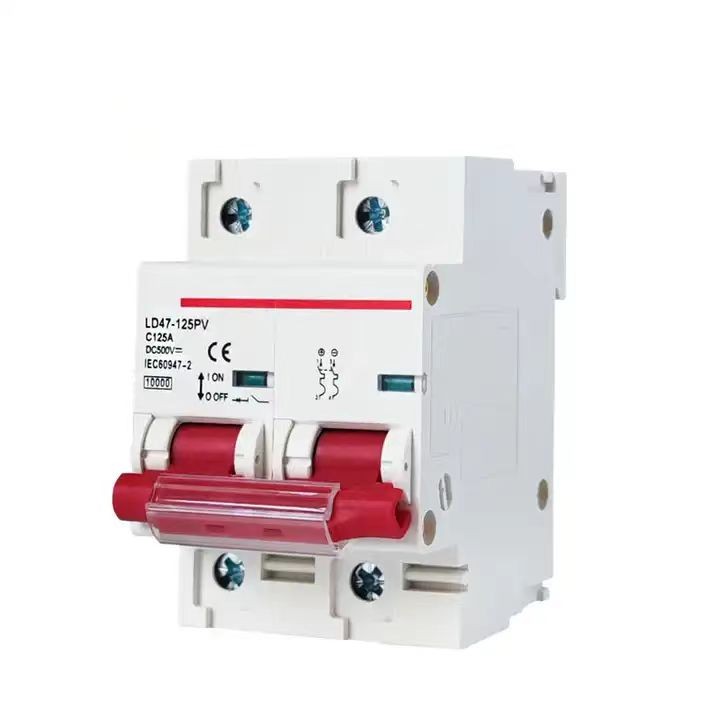

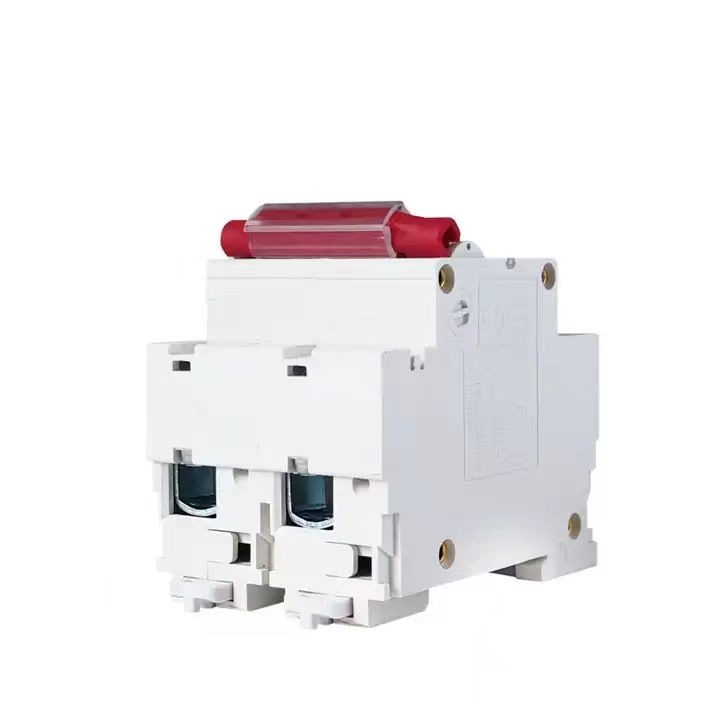

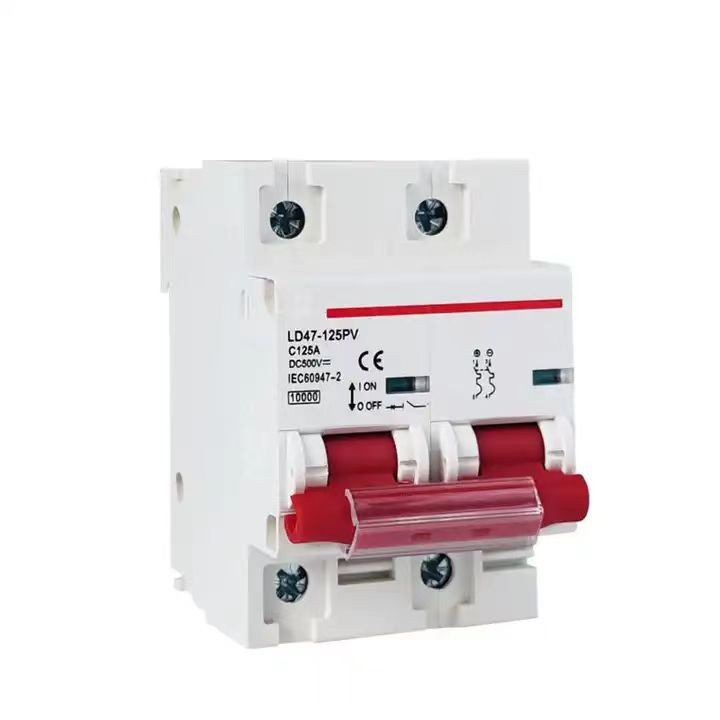

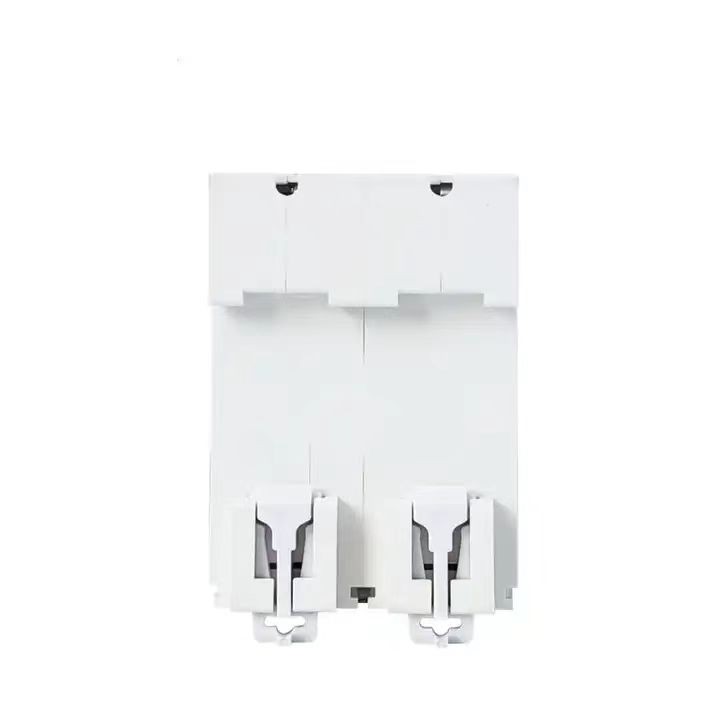

D47-100 Solar DC Mini Circuit Breaker(DC MCB)

D47-100 Solar DC Mini Circuit Breaker(DC MCB)

Product Item：LW-LVVD47-100

The current is form 63A to 125A

voltage up to 1000VDC

It is apply to rating current 125A or less

Description

D47-100 Solar DC Mini Circuit Breaker(DC MCB)

Moulded Case Circuit Breaker is designed to distribute power and protect the circuit and power equipment against overload in solar system. It is apply to rating current 125A or less, direct current rating voltage 1000V or less.Products according IEC60947-2, GB14048.2 standard.

Application
LW-LVVD47-100 high breaking capacity circuit breaker is specially for solar PV system. The current is form 63A to 125A and voltage up to 1000VDC. Standard according to IEC/EN60947-2.
