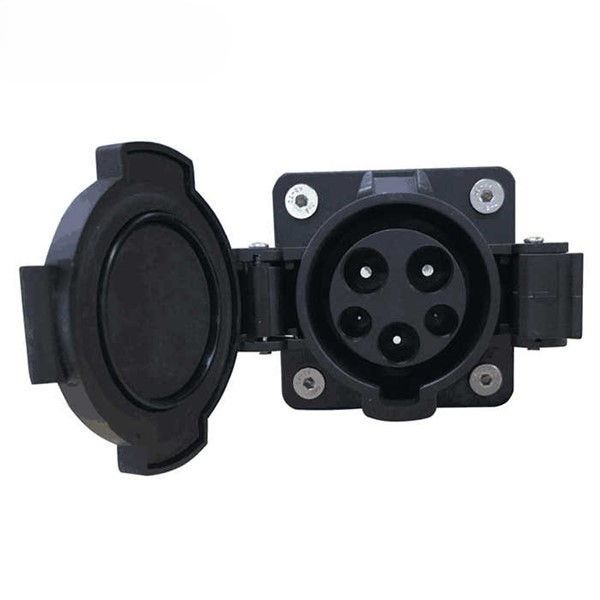

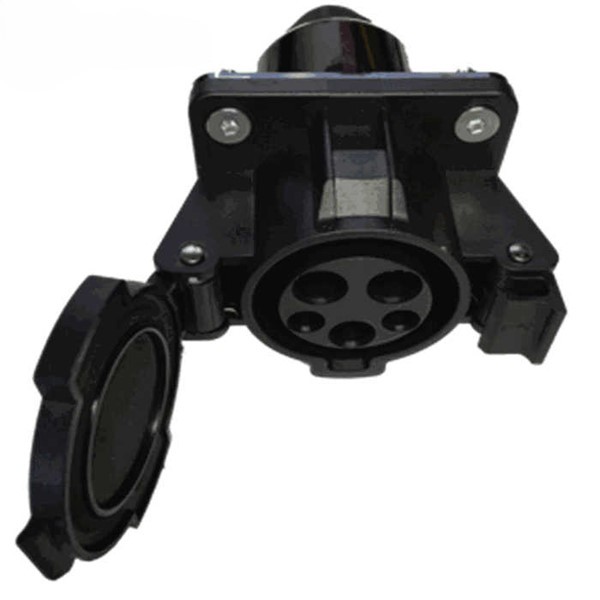

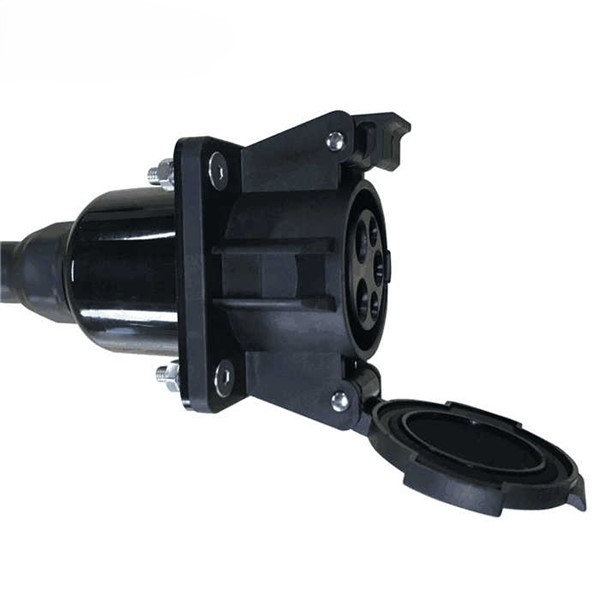

Description
| Features | 1. Meet SAE J1772-2010 standard | ||||||||
| 22. Nice appearance，left flip protection,support front installation | |||||||||
| 3. Reliability of materials, antiflaming,pressure -resistant,abrasion resistance | |||||||||
| 4. Excellent protection performance,protection grade IP44(working condition) | |||||||||
| Mechanical properties | 1. Mechanical life : no-load plug in/pull out＞10000 times | ||||||||
| 2. Coupled insertion force:>45N<80N | |||||||||
| Electrical Performance | 1. Rated current：16A/32A/40A/50A | ||||||||
| 2. Operation voltage： 240V | |||||||||
| 3. Insulation resistance：＞1000MΩ（DC500V） | |||||||||
| 4. Terminal temperature rise：＜50K | |||||||||
| 5. Withstand Voltage：2000V | |||||||||
| 6. Contact Resistance： 0.5mΩ Max | |||||||||
| Applied Materials | 1. Case Material: Thermoplastic,flame retardant grade UL94 V-0 | ||||||||
| 2. Pin：Copper alloy,silver plating | |||||||||
| Environmental performance | 1. Operating temperature: -30°C~+50°C | ||||||||
| Model selection and the standard wiring | |||||||||
| Model | Rated current | Cable specigication | Cable Color | ||||||
| V3-DSS-EV16P | 16Amp | 3 X 2.5mm² + 2 X 0.5mm² |
Orange or Black |
||||||
| 16Amp | 3 X 14AWG+1 X 18AWG | ||||||||
| V3-DSS-EV32P | 32Amp | 3 X 6mm²+ 2 X 0.5mm² | |||||||
| 32Amp | 3 X 10AWG+1 X 18AWG | ||||||||
| V3-DSS-EV40P | 40Amp | 2X8AWG + 1X10AWG + 1X16AWG | |||||||
| V3-DSS-EV50P | 50Amp | 2X8AWG + 1X10AWG + 1X16AWG | |||||||
