  • 1500V Solar Cable EN50618 Standard H1Z2Z2-K TUV approval
  • 1500V Solar Cable EN50618 Standard H1Z2Z2-K TUV approval
  • 1500V Solar Cable EN50618 Standard H1Z2Z2-K TUV approval
  • 1500V Solar Cable EN50618 Standard H1Z2Z2-K TUV approval
1500V Solar Cable EN50618 Standard H1Z2Z2-K TUV approval1500V Solar Cable EN50618 Standard H1Z2Z2-K TUV approval1500V Solar Cable EN50618 Standard H1Z2Z2-K TUV approval1500V Solar Cable EN50618 Standard H1Z2Z2-K TUV approval

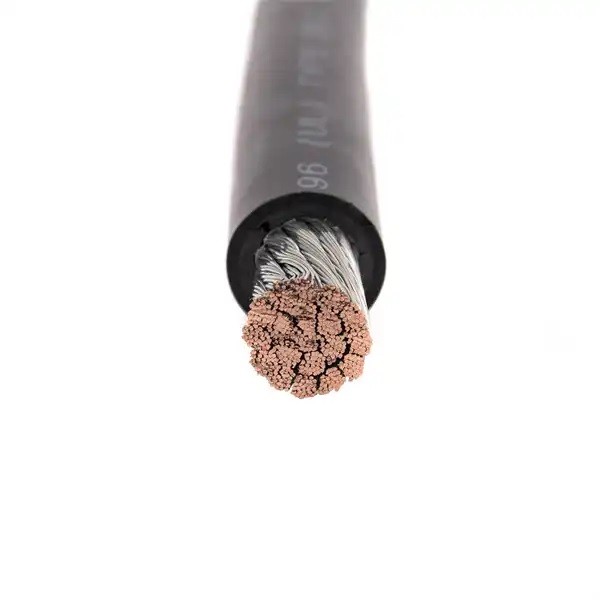

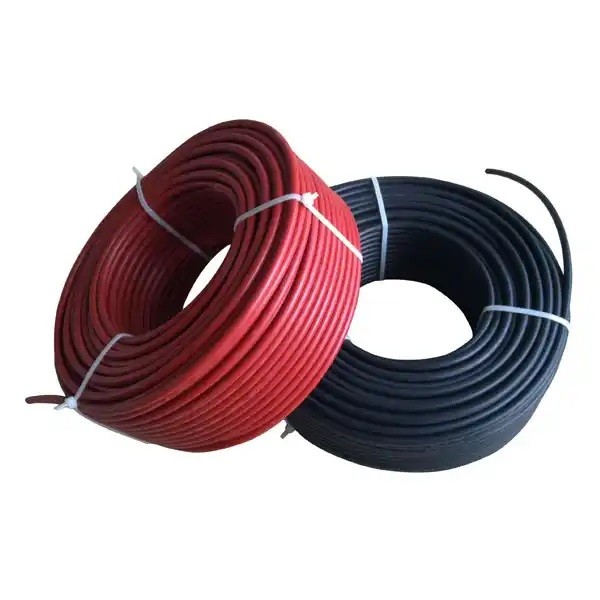

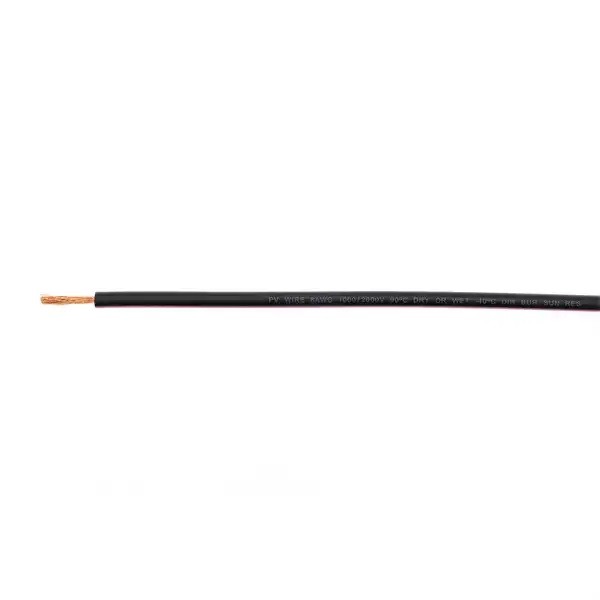

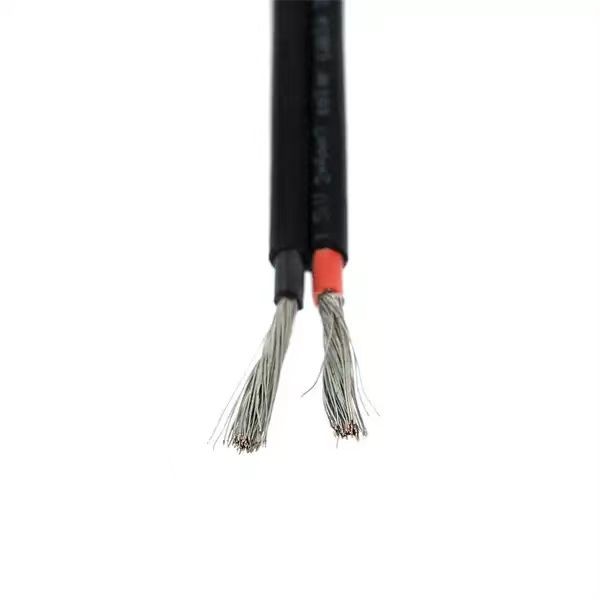

1500V Solar Cable EN50618 Standard H1Z2Z2-K TUV approval

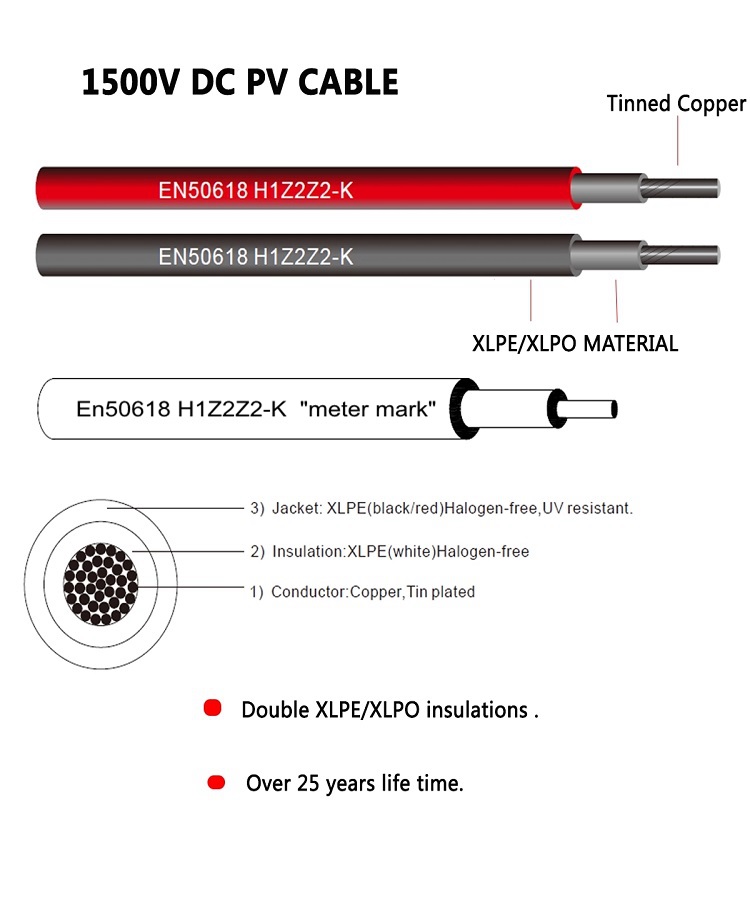

  • Product Item:H1Z2Z2-K 2.5mm2-35mm2
  • 100% Tinned copper
  • XLPE/XLPO
  • EN50618 Standard
  • Free Sample Available
  • EN50618 solar cable , TUV approval , H1Z2Z2-K PV cable
    Inquiry Send Email

    Description

    Product Description

    Beyondsoalr photovoltaic wire is applied to solar panels for power generation and related components of the wiring,

    connection, particularly suitable for outdoor. It is used in photovoltaic solar systems, wiring the solar panels with the mc4 connector in the solar power systems.



    • Environmentally friendly,
    • 25 years long life,
    • resistant to extreme weather
    • anti-oxidation, UV, oil, etc.,
    • widely used in photovoltaic powerstations
    • Free sample deliveried in 7 days





    Technical Specification:


    Voltagerate:

    DC 1800V or 1500V

    Dielectric strength:

    AC6.5kV/5min

    Low temperature resistance:

    -40 ℃

    Ambient temperature when cable is used:

    -40-90 ℃

    Max temperature at conductor:

    120 ℃



    Mechanical characteristics:


    Minimum bending radius:

    5 x cable diameter

    Tensile strength and elongation:

    EN 60811-1-1

    Cold bending: according

    EN 60811-1-4

    Thermal endurance properties:

    EN60216-2





    Certificate / Standard:


    Certificate: TUV, IEC62930, UL4703


    Standard:  2 PFG 1169:08.07 (For PV1-F model)

    EN 50618:2014 (For H1Z2Z2-K mode)
    IEC 62930(ed.1) (For 62930 IEC131-Model)

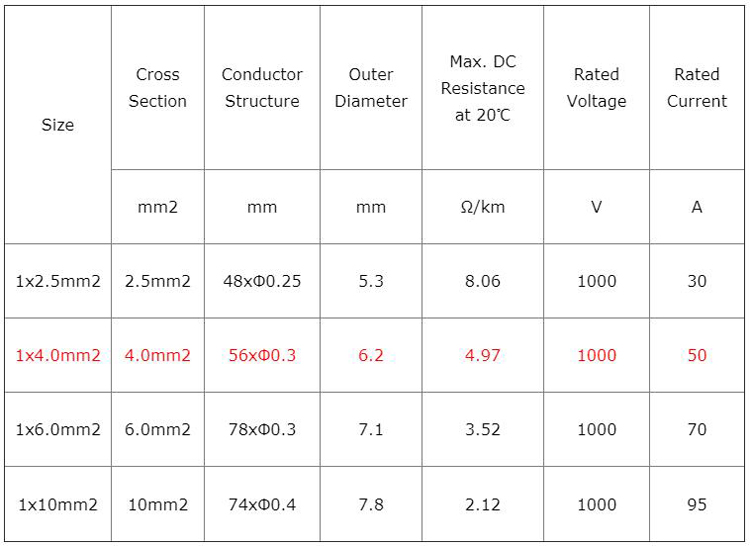

    Size Data

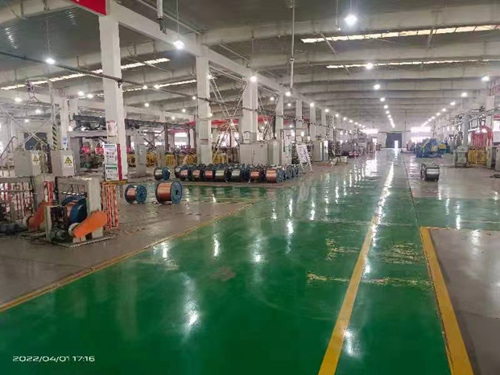

    Photovoltaic wire production viode.

    Click the picture to visit

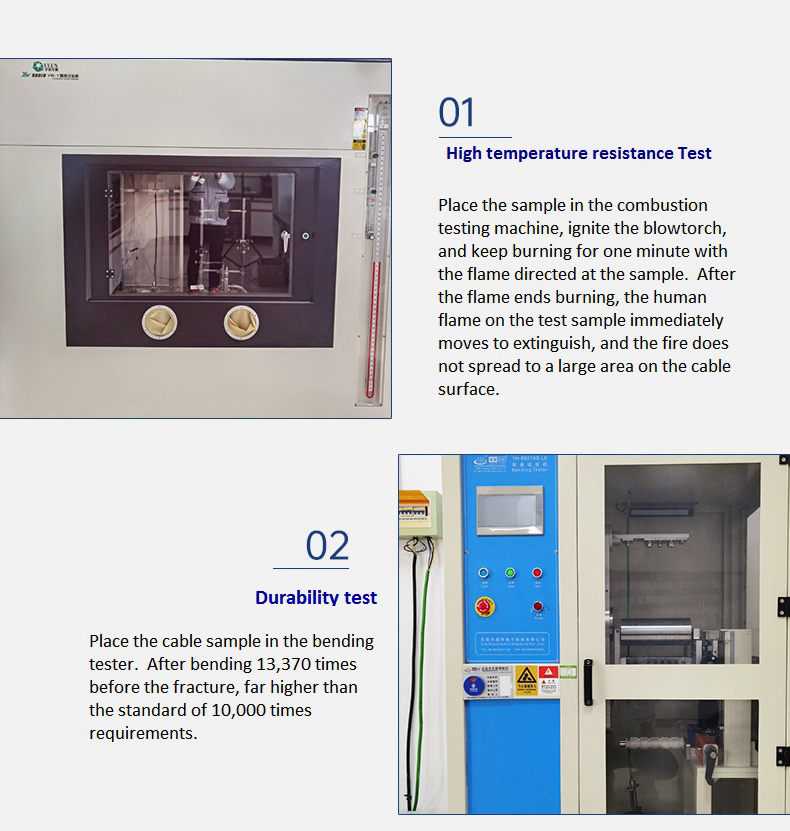

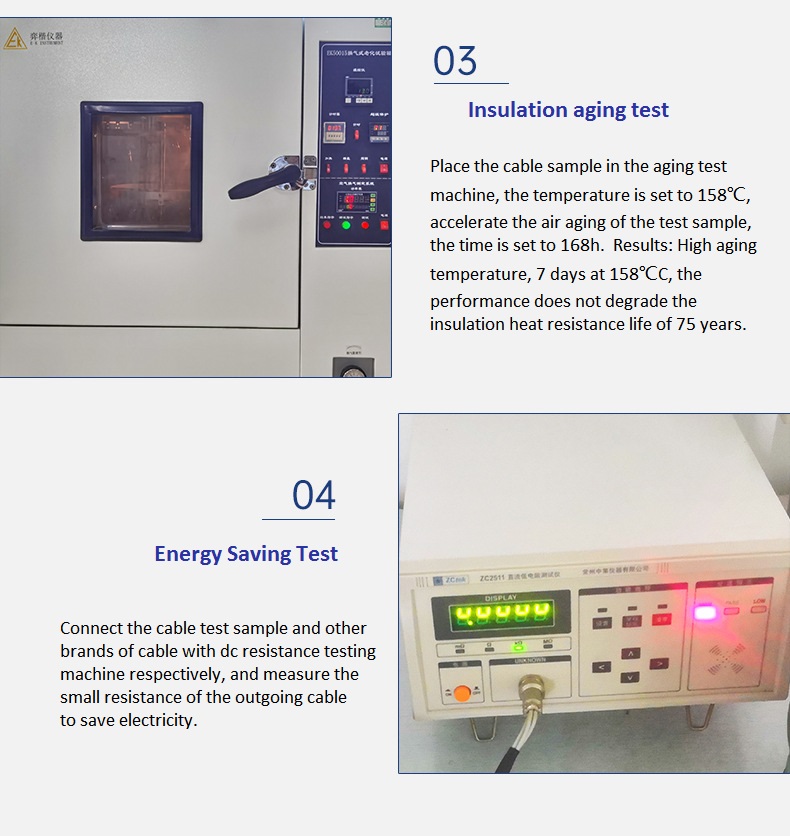

    Quality Control








    Our Team




    Contact us! Free sample can be deliveried in 7days.

    Sales:Molly liang

    Email:molly.l@beyondsolar.cn

    Mobile/whatsapp:+86-18576852516
