Description

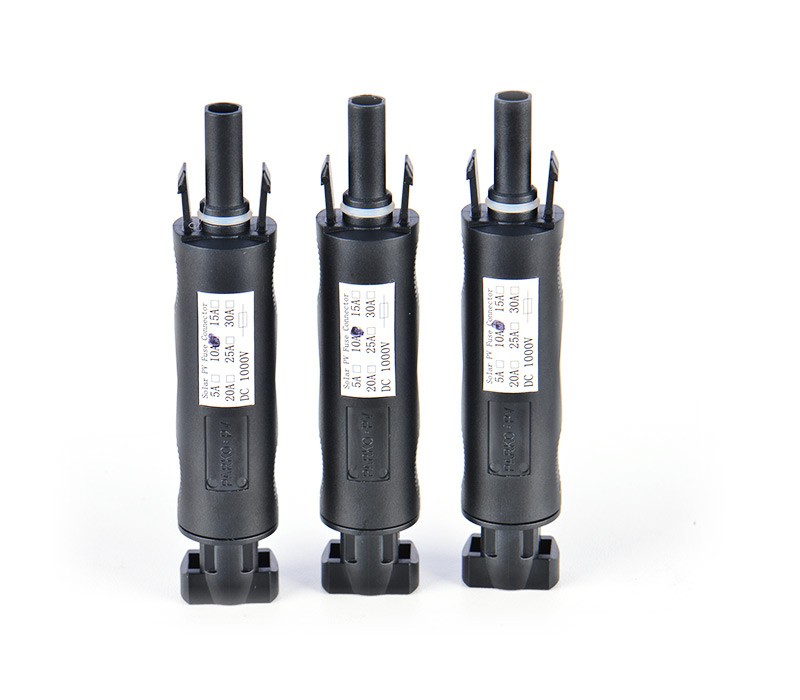

1000V-DC-Fuse-Connector
Product No:PK10-FU050B
Advantage:
1. This connector is suitable for 1000V solar photovoltaic system protection; Slim design;
2. Good impact resistance and aging resistance; Adopt imported PPO raw materials;
3. The contact resistance is reduced to 0.50 mΩ;
4. Innovative sealed waterproof design, in line with IP67 waterproof requirements;
5. Ambient temperature range -40℃~ +85℃, excellent performance, UV resistance, insulation, suitable for long-term outdoor use.
6. Safety is very good, best-selling European and American markets.
7. Easy to install, easy to pull out, self-locking structure is stable.
8. Compatible with MC4, EVO2, QC4, etc. Photovoltaic connectors.
Specificaation:
1. Insulation material sabic:PPO
2. Security level: Level 2
3. Rated current :1-30A
4. Material RTI: 110℃
5. Rated voltage :1000V DC
6. Withdrawal force :≥300 n
7. Test voltage :6 kv (50 hz.1min)
8. Insertion and removal force :≤50 n
9. Contact resistance :≤0.5Ω
10. Ambient temperature range :-40℃~+85℃
11. Contact material: copper. tinning
12. Applicable wire size range :2.5mm²~6mm²(14~10AWG)
13. Waterproof rating ip67
14. Pin dimension: ø4.0mm
15. Flame category :UL94-V0
16. Standard :IEC 62852
17. Fuse specification: 3A.5A.8A.10A.15A.20A.25A.30A
16. Standard :10 * 38 mm

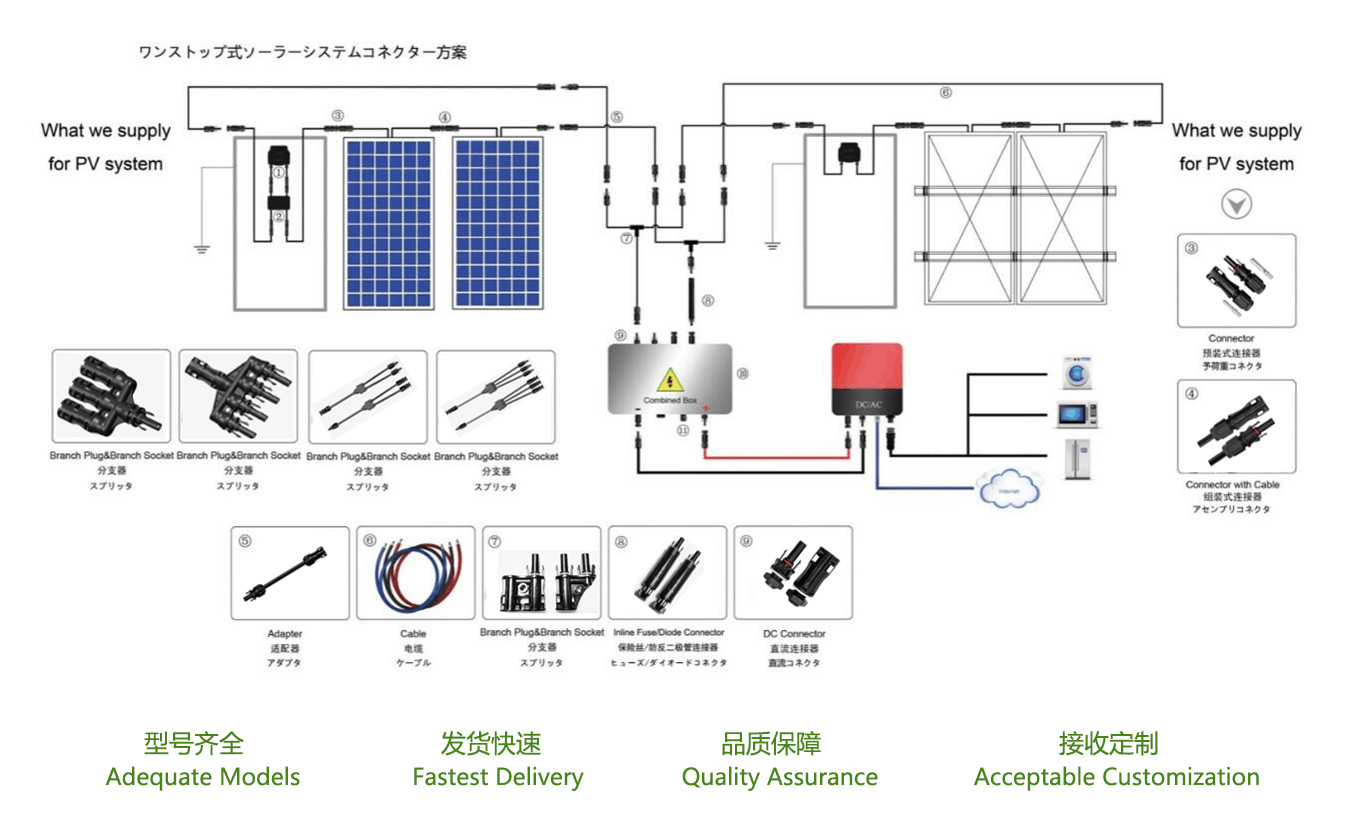

MC4 Application

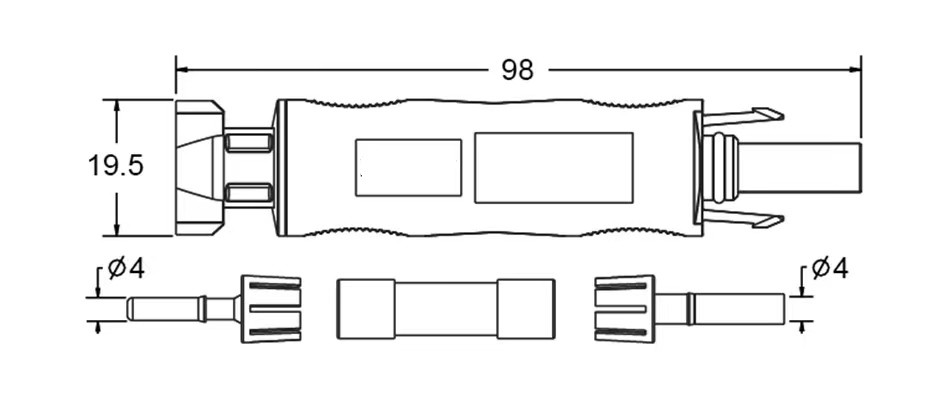

MC4 Size
