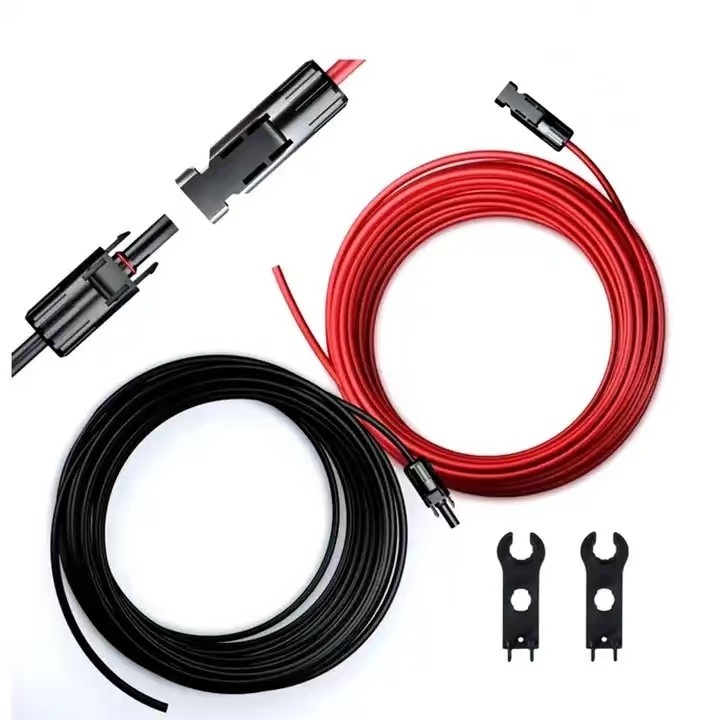

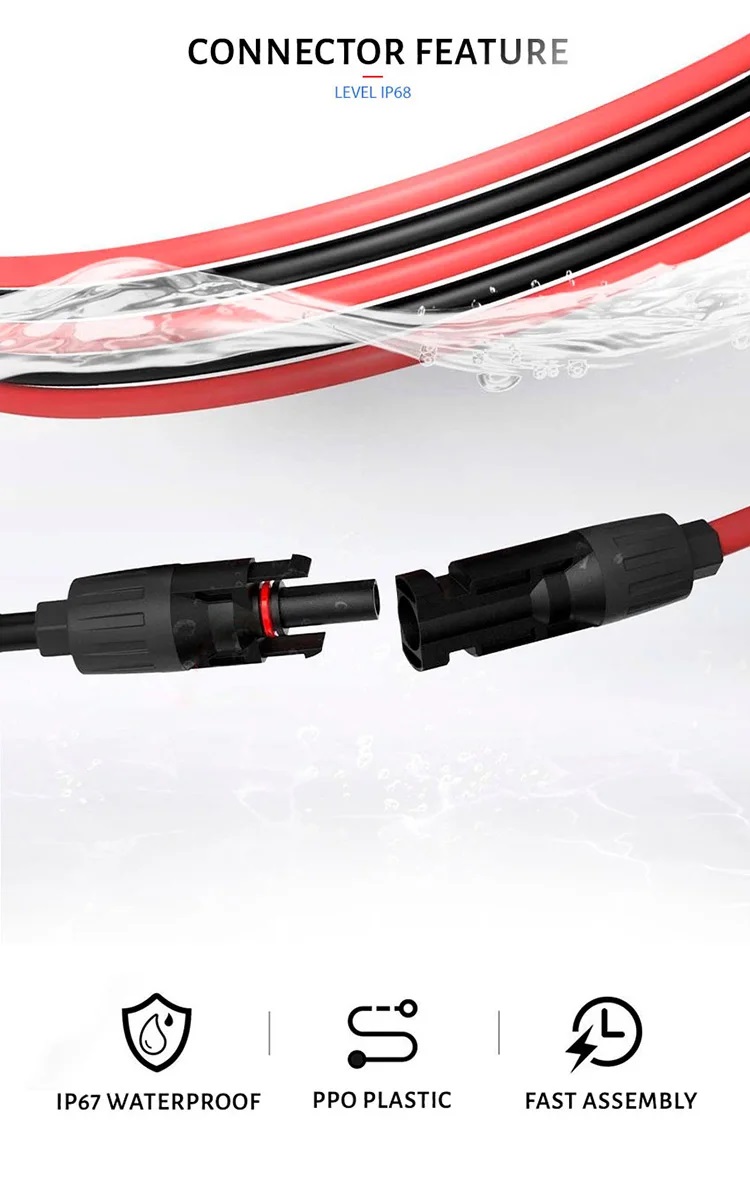

1500V DC PV Solar battery Cable

Product Item：701971910585701

The cable are soft and easy to lay

The flame retardant performance has passed IEC60332-1 test requirements

Insulation and sheath materials have small thermal shrinkage

Description

battery Cable

Battery Cables, also known as Energy Storage Cables (ES-Cable), are used in energy storage power stations. They are used between battery modules, between battery clusters, and between battery clusters and combiner boxes and energy storage inverters. The advantages of battery acid and alkali solution erosion, resistance to distortion and environmental temperature.

Advantage:

1. The cable are soft and easy to lay.Bounce angle does not exceed 40 degrees.
2. The flame retardant performance of the product has passed IEC60332-1 single flame retardant test requirements.Low smoking.
3. Insulation and sheath materials are resistant to electrochemical solvents.
4. The cable has good resistance to environmental stress cracking, heat resistance and low temperature resistance.
5. After the cable is processed by radiation, its mechanical and mechanical physical properties are significantly improved and the service life is increased.
6. Insulation and sheath materials have small thermal shrinkage, which can ensure that copper is not exposed during the work of the cable.

Standard of Battery cable for electric energy storage system
CQC 1143:2019 issued by China Quality Certification Center (CQC)
PPP 58049A:2019 issued by TUV-SUD

Cable Design

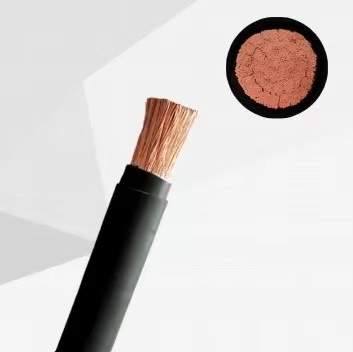

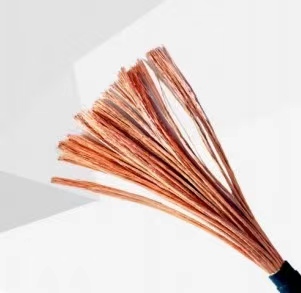

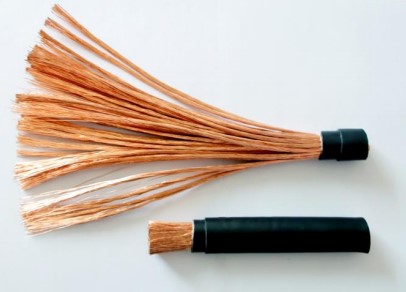

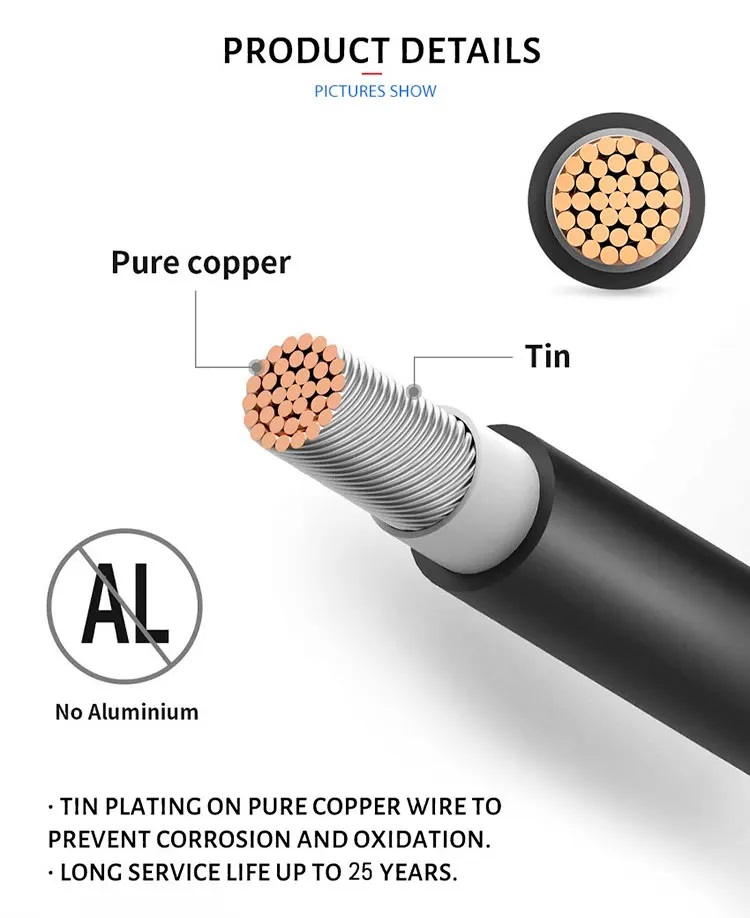

Conductor: Annealed copper conductor or Annealed tinned copper conductor
It meet class 5 or class 6, IEC60228；EN60228
Insulation: XLPE insulation
Sheath :Non sheathed or XLPE sheath

Characteristics

Voltage Rate	Working temperature
Voltage Rate	Maximum rated temperature of cable conductor	Minimum rated temperature of cbale conductor
DC900V	+125℃	-40℃
DC1500V	+125℃	-40℃

Cable model

Cable model	Description
Standard:PPP58049A:2019	Description
ES-H09Z-F/H	DC 900V， Copper or Tinned copper conductor X-125，XLPE Insulation，Non sheathed
ES-H15Z-F/H	DC 1500V， Copper or Tinned copper conductor X-125，XLPE Insulation，Non sheathed
ES-H09ZZ-F/H	DC 900V， Copper or Tinned copper conductor X-125，XLPE Insulation，XLPE sheath
ES-H15ZZ-F/H	DC 1500V， Copper or Tinned copper conductor X-125，XLPE Insulation，XLPE sheath

Application

PVC Battery Cable
Voltage level	Nominal section(mm2)	Toplimit of overall diameter(mm)	Maximum DC resistance(20℃)(Ω/ km)	Minimum insulation resistance (70℃)(MΩ. km)	Recommended value of carrying capacity (A)	Reference weight(kg/km)
300/500	0.3	2.3	69.2	0.016	10	6.2
	0.4	2.5	48.2	0.014	11.7	8.0
	0.5	2.5	39	0.013	13.3	9.0
	0.75	2.7	26	0.011	17.0	12.2
	1	2.8	19.5	0.010	20.0	14.8
450/750	1.5	3.4	13.3	0.010	25.4	21.6
	2.5	4.1	7.98	0.009	34.5	34
	4	4.8	4.95	0.007	44.5	50
	6	5.3	3.30	0.006	58.3	75
	10	6.8	1.91	0.0056	79.5	132
	16	8.1	1.21	0.0046	111	197
	25	10.2	0.780	0.0044	146	289
	35	11.7	0.554	0.0038	180	380
	50	13.9	0.386	0.0037	225	549
	70	16.0	0.272	0.0032	280	754
