Description

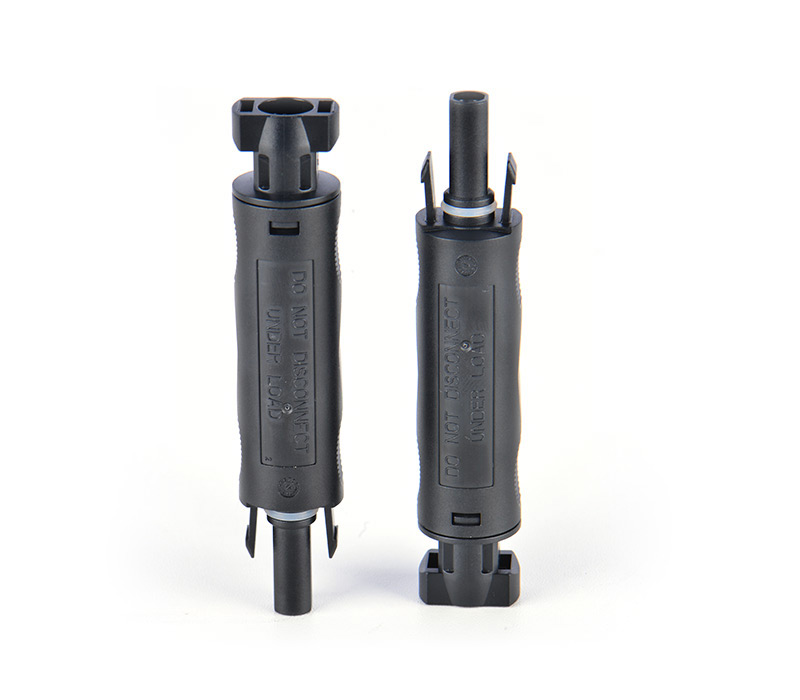

1000V-DC-Diode-Connector
Product No:PK10-DI060B
Advantage:
1. For 1000V solar photovoltaic system protection; Ultra-thin design.
2. The connector has good impact resistance and aging resistance; Adopt imported PPO raw materials;
3. The contact resistance is reduced to 0.50 mΩ;
4. Innovative sealed waterproof design, in line with IP67 waterproof requirements;
5. Ambient temperature range -40℃~ +85℃, excellent performance, UV resistance, insulation, suitable for long-term outdoor use.
6. Good safety performance, good insulation performance, best-selling European and American markets.
7. Easy to install, easy to pull out, stable self-locking structure.
8. Compatible with MC4, EVO2, QC4, etc. Photovoltaic connectors.
Specificaation:
1. Insulation material :Sabic PPO
2. Security level: Level 2
3. Rated current :30
4. Material RTI: 110℃
5. Rated voltage :1000 v
6. Withdrawal force :≥300 n
7. Test voltage :6 kv (50 hz.1min)
8. Insertion and removal force :≤50 n
9. Contact resistance :≤0.5Ω
10. Ambient temperature range :-40℃~+85℃
11. Contact material: copper. tinning
12. Applicable wire size range :2.5mm²~6mm²(14 ~ 10 awg)
13. Waterproof rating :IP67
14. Pin dimension: ø4.0mm
15. Flame category :UL94-V0
16. Standard :IEC 62852

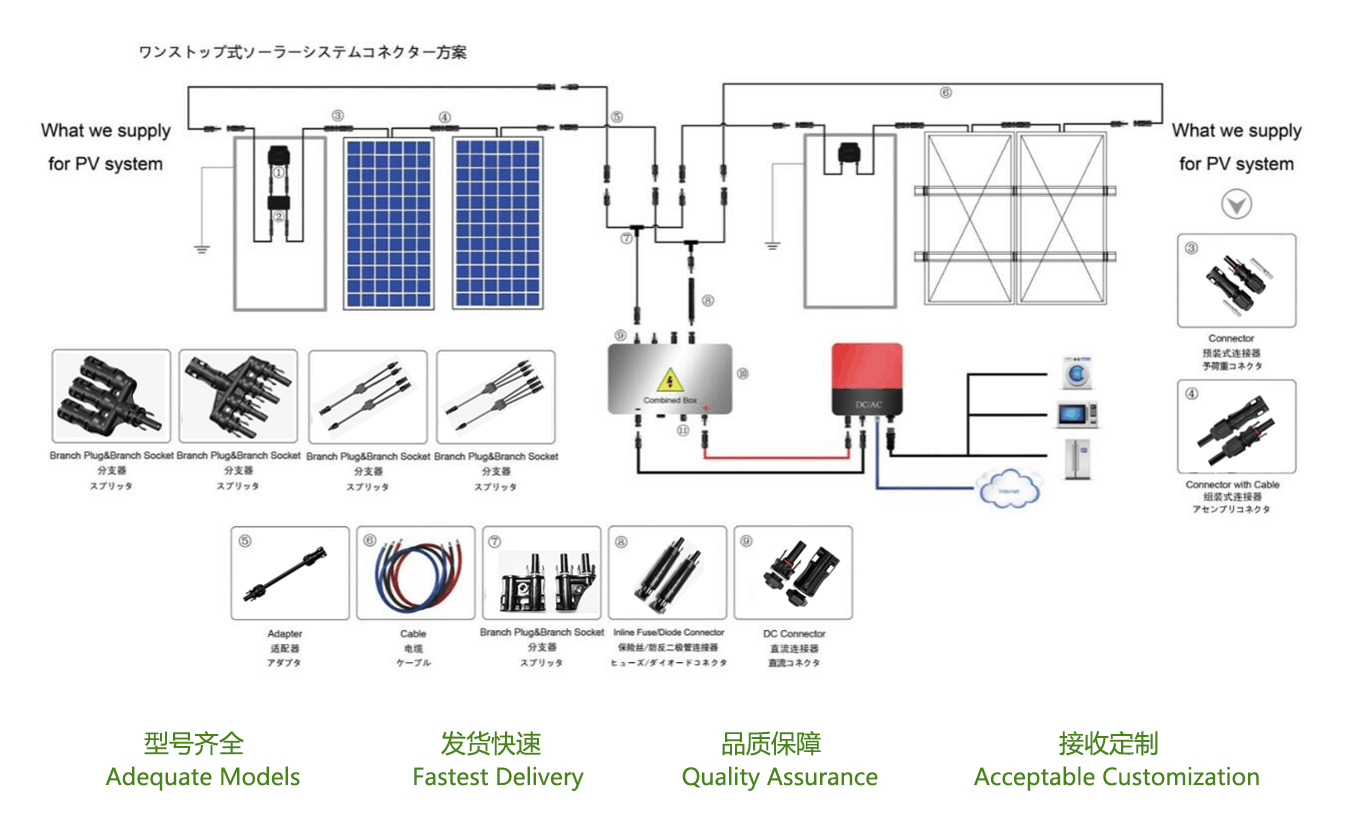

MC4 Application

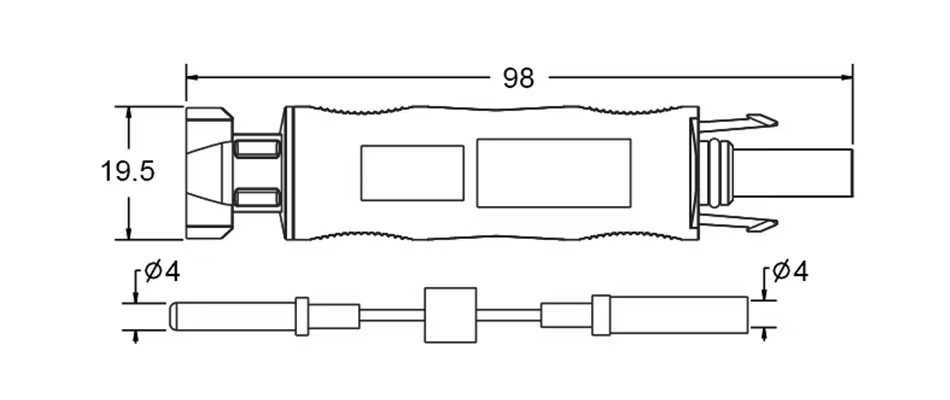

MC4 Size
