  • 3P 100A AC220V Automatic Transfer Switch (ATS) for Photovoltaic Systems
  • 3P 100A AC220V Automatic Transfer Switch (ATS) for Photovoltaic Systems
3P 100A AC220V Automatic Transfer Switch (ATS) for Photovoltaic Systems3P 100A AC220V Automatic Transfer Switch (ATS) for Photovoltaic Systems

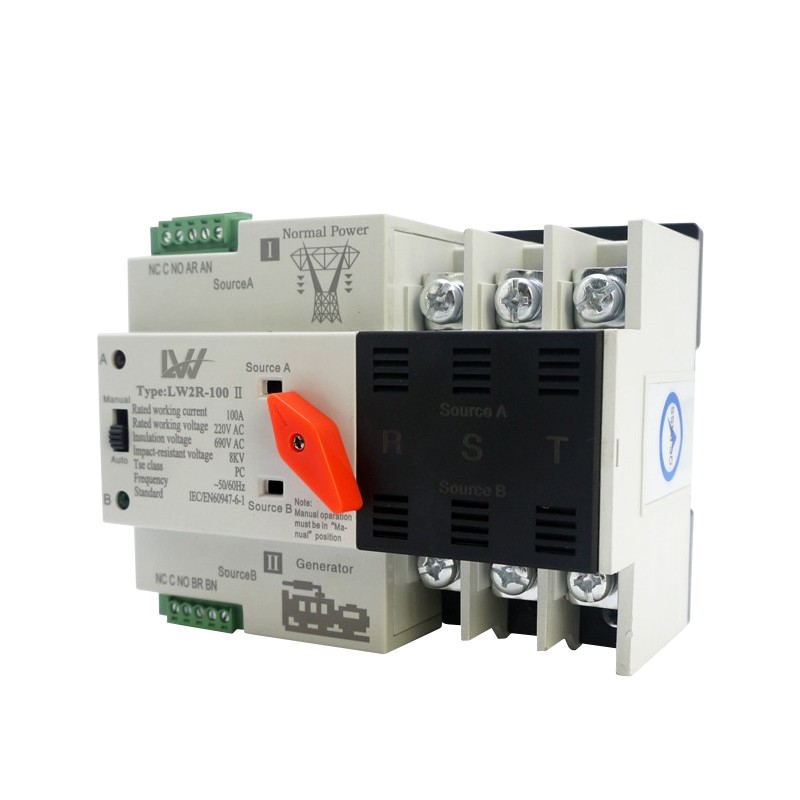

3P 100A AC220V Automatic Transfer Switch (ATS) for Photovoltaic Systems

  • Product Item:LW2R-100
  • Inquiry Send Email

    Description

    LW2R series dual power automatic transfer switch

    is new developed micro household power transfer switch..



    The switch is mainly used for testing whether normal or spare power is normal or not.

    When the normal power is abnormal, the spare power works at once, which therefore ensures the continuirty, reliability, and safety of power supply.

    The product is specially designed for household orbit-type installation and specially use in PZ30 power distribution box.


    LW2R series automatic transfer switch is suitable for the emergency power supply system with 50 or 60 Hz alternatting current rated 400V 60A. TSE is compact in structure, reliable in transfer, convenient in instabllation and maintenance, and has long lif expectancy. Widely used In various occasions where continuous power failure ls not allowed, it can be operated both electrically and manually.

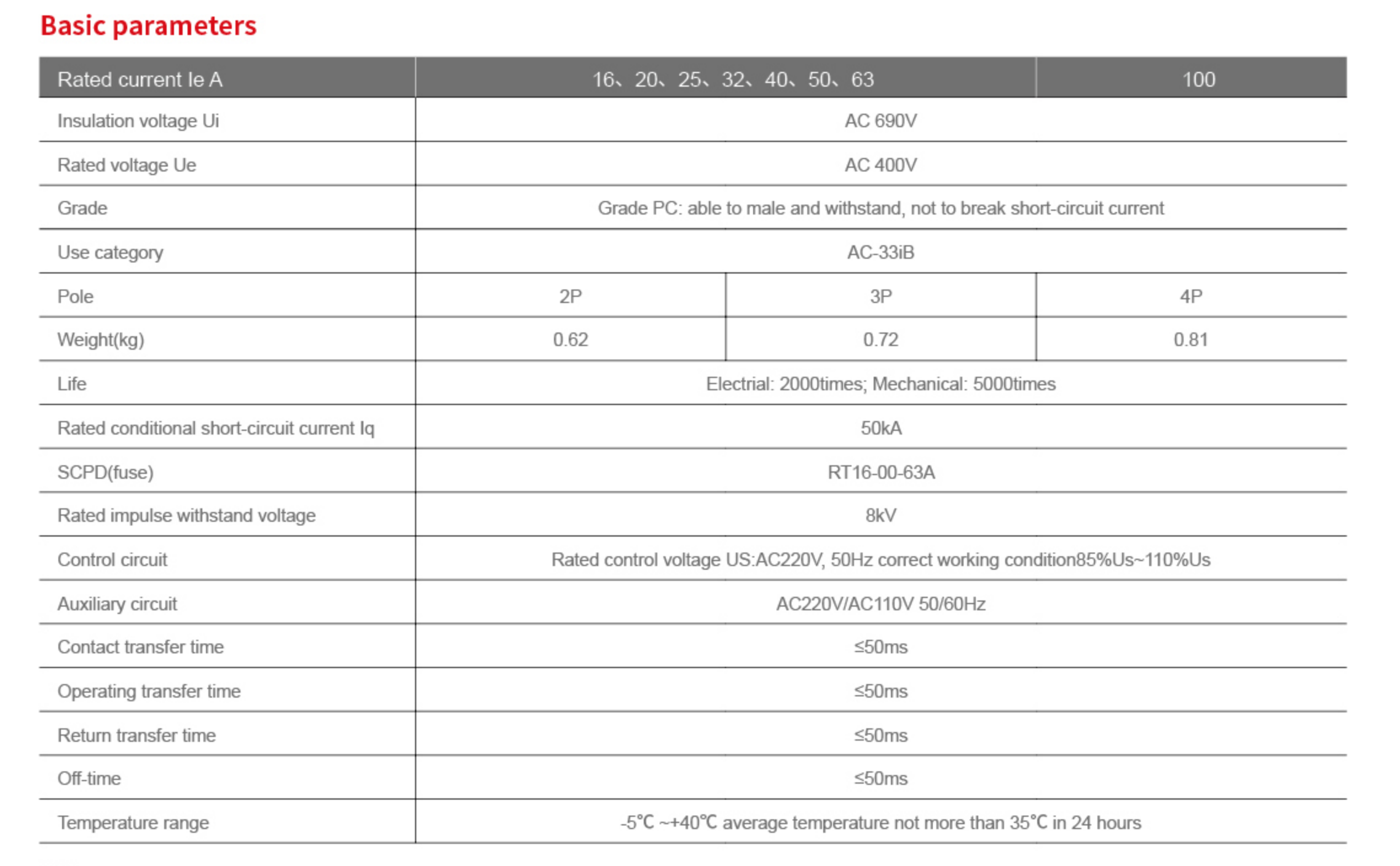

    Specification
