Description

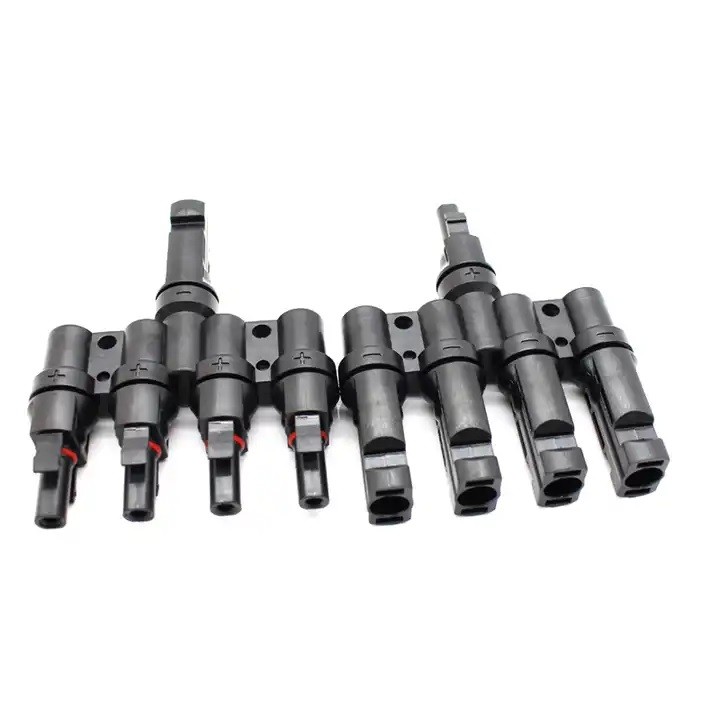

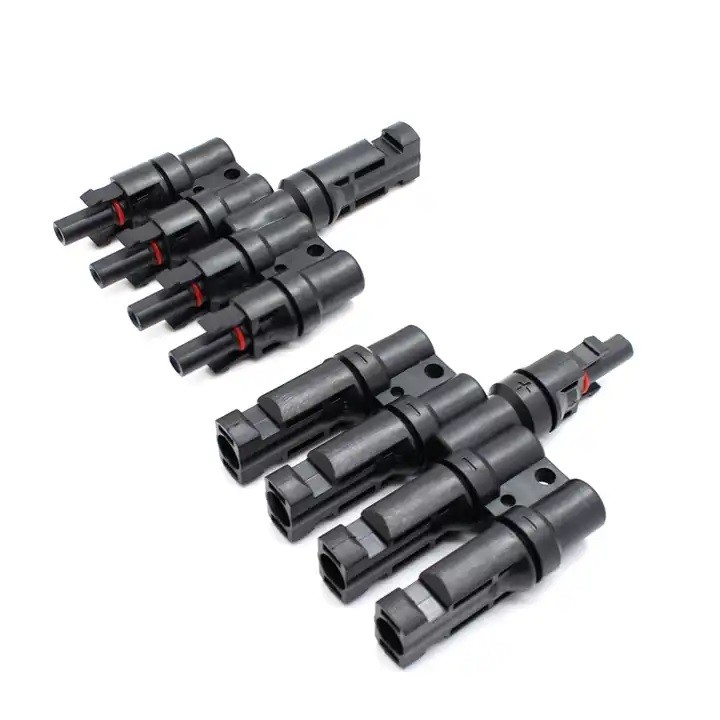

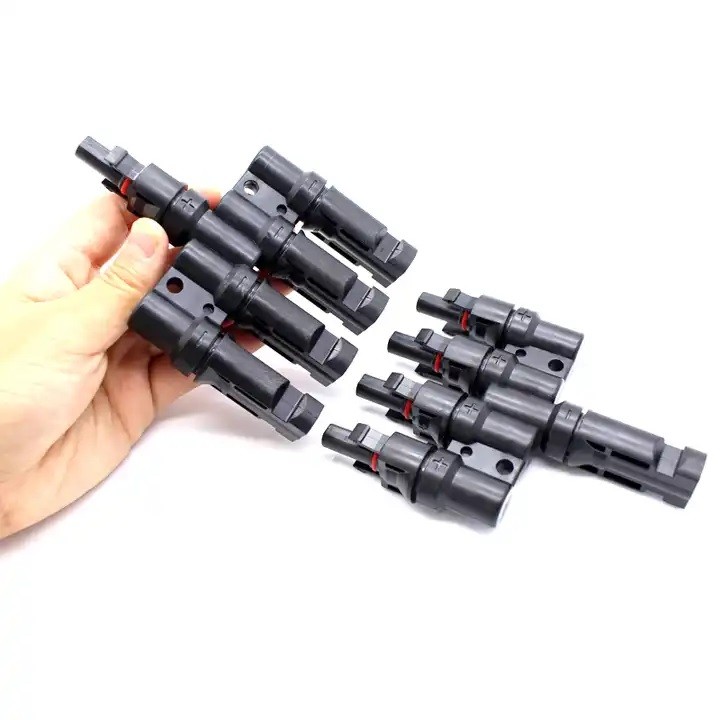

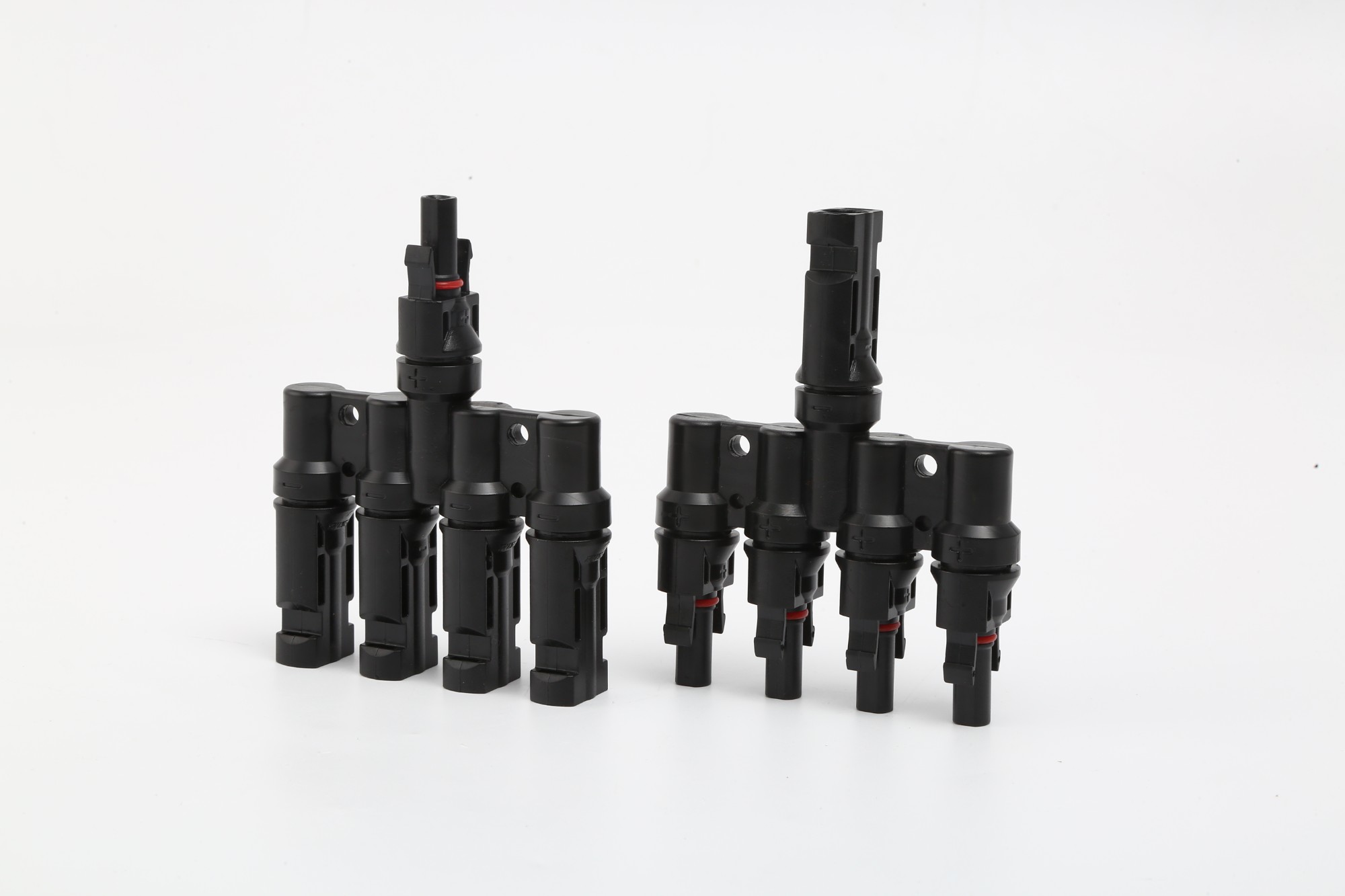

1500V MC4 T branch connectot 4 in 1
Product No.:PV-T4-1500
| Contact: | Tin-plated copper |
| Waterproof: | IP67 |
| Connector material: | 100% PPO |
| Rated Voltage: | TUV1000V DC |
| Rated Current: | 20A-30A |
| Pin Dimension: | 4.0mm |
| Proof Voltage: | 6000V AC(1 min) 2200V DC(1 min) |
| Temperature Range: |
-40˚C~+85˚C |
| Flame Class: | UL94V-0 |
| Resistance: |
≤5mΩ |
| Pollution degree: | 2 |
| Protection Class: |
Class II |

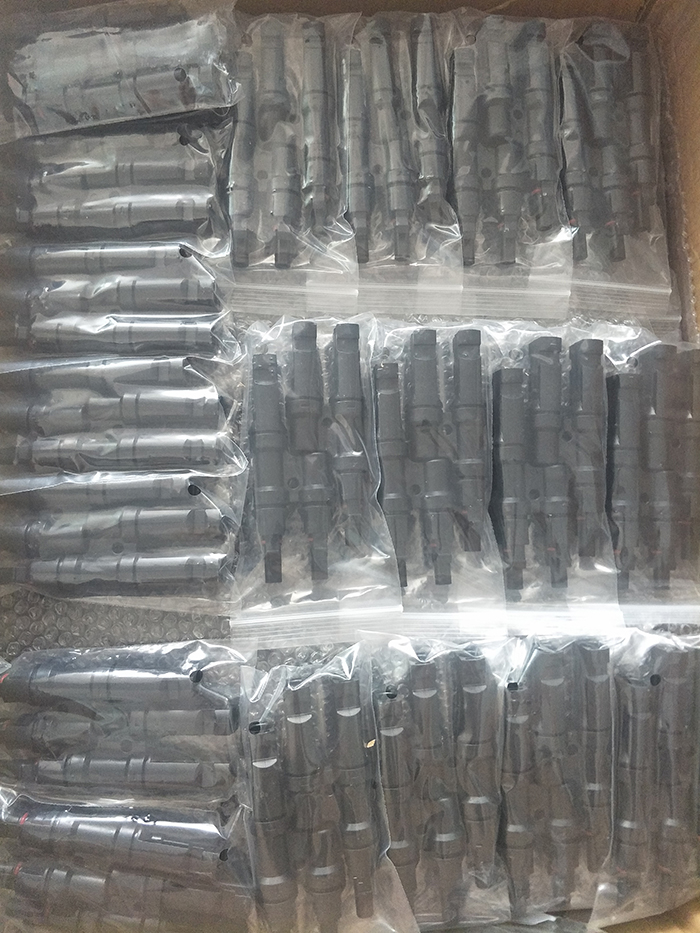

Packaging and delivery
Contact us!
You will get your Free quote in 1 hour. Free sample delivery in 7days.
Sales: Molly Liang
Email/skype:Molly.l@beyondsolar.cn
Whatsapp:+86-18576852516
