  • Solar DC Fuse base holder 1000V for Fuse 10*38mm DIN

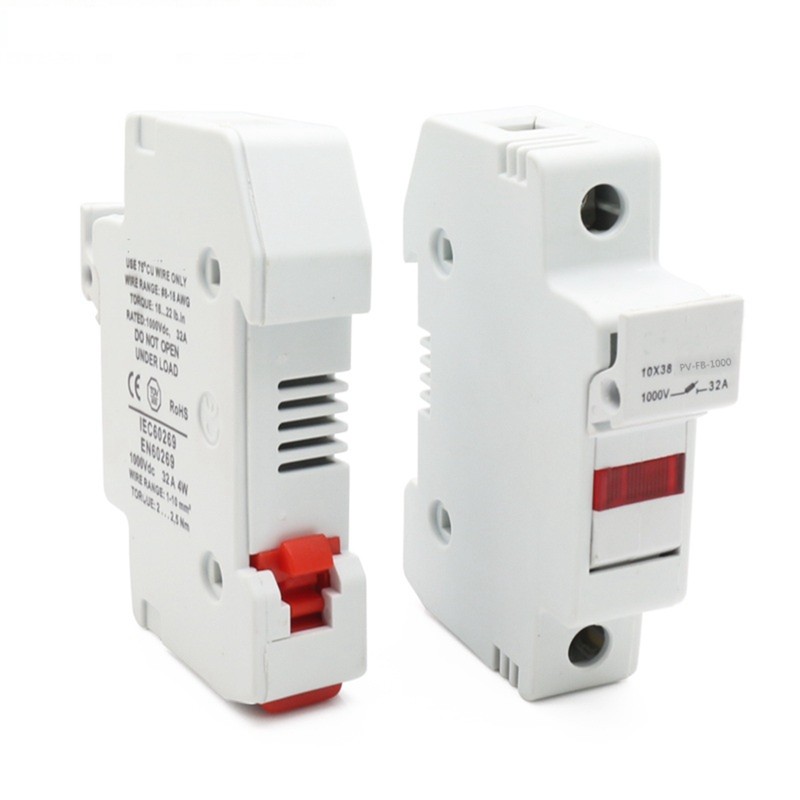

Solar DC Fuse base holder 1000V for Fuse 10*38mm DIN

  • Product Item:PV-FB-1000
  • Rated Voltage:1000V DC 32A
  • Standard:IEC 60269
  • Fuse holder , Fuse base , fuse base with fuse link DC 1000v
    Inquiry Send Email

    Description

    PV fuse holder 1000V DC

    A range of 10x38mm fuse links specifically designed for protectin photovoltaic strings.

    These fuse links are capable of interrupting low overcurrents associated with faulted photovoltaic string arrays (reverse current, multi-array fault).



    Electrical Characteristics

    Rated voltage: 1000VDC
    Amps:1-32A
    Rated braking capacity 33kA dc
    Minimum interrupting rating 1.3x In
    Time constant:<1ms

    Standard

    IEC 60269-6, EN 60947-3, DC-20B


    Technicial Parameters:

    Tpye LWPV-32
    Fuse size 10*38mm
    Pole 1P
    Rated voltage
    1000V DC
    Rated current
    1,2,3,4,5,6,8,10,12,15,20,25,32 A
    short-circuit breaking capacity
    33KA
    Max power attenuation
    3.5W
    Protection grade
    IP20
    Connection
    2.5-10MM2
    Operation ambient temperature
    -30~+70°C‘
    Resistance and damp hot
    Class 2
    Elevation
    ≤2000
    Installation way
    DIN rail
    RH(relative air humidity)
    when +20 °C,not exceed 95%;when +40 °C,not exceed 50%
    Pollution class 3
    Installation environment
    the place of no abvious vibrate & impact
    Installation class
    Ⅲ
    Size w*h*l    18*89*90mm
    Weight (inline fuse) 0.71kgs


    Free sample is available! Contact us!

    Email :info@beyondsolar.cn

    Whatsapp/tel:+86-18576852516
