Description

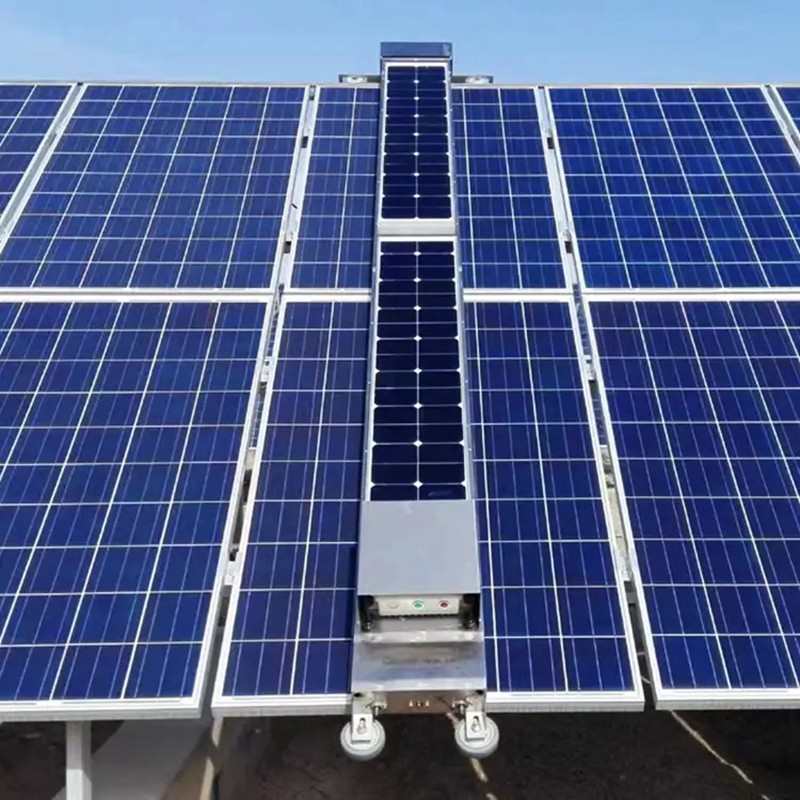

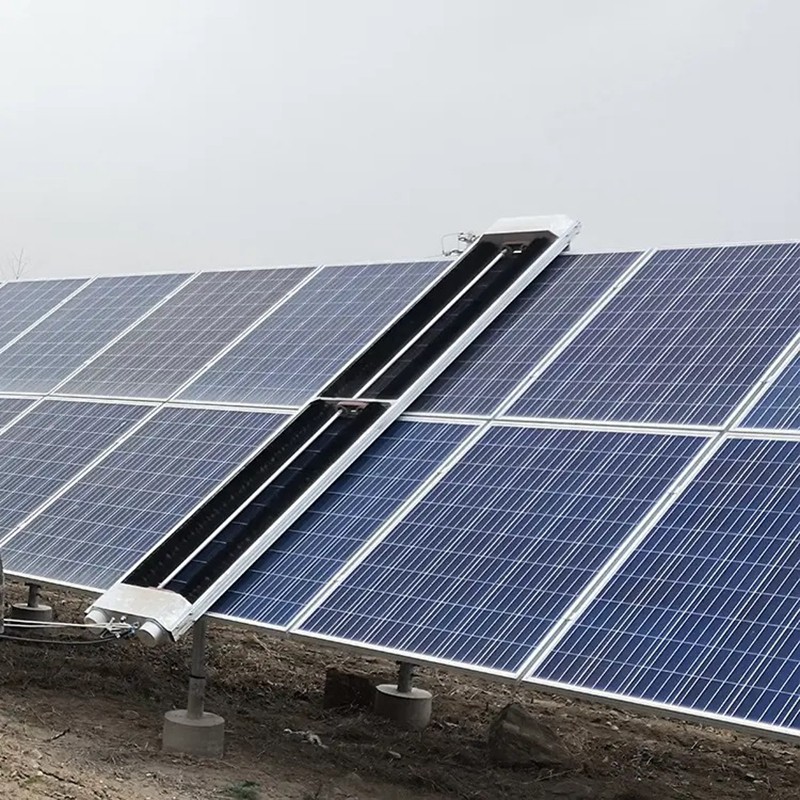

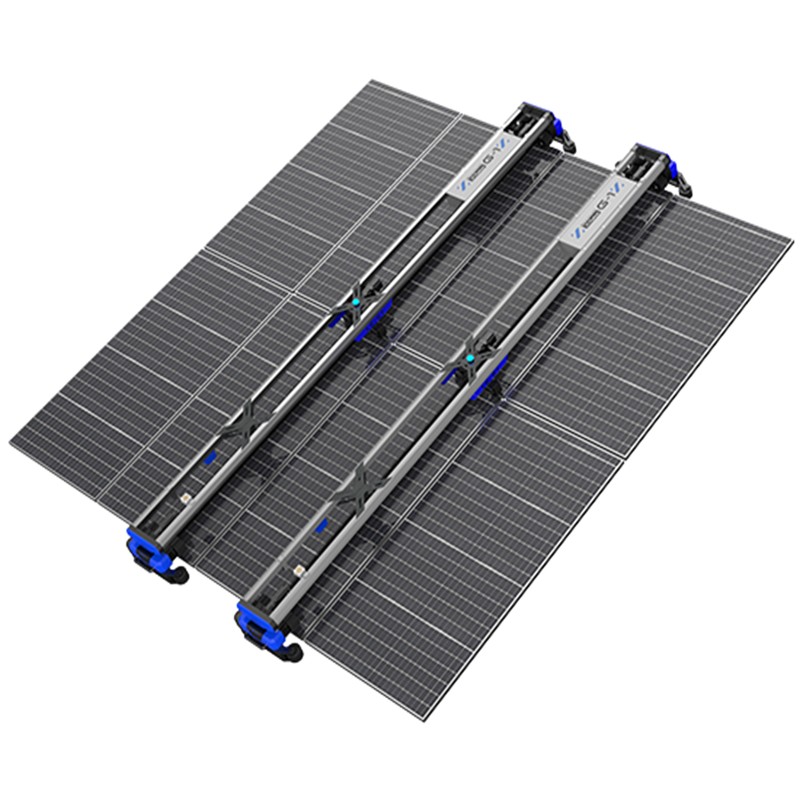

G1 Solar panel automatic cleaning robot
Intelligent visual recognition (recognition types: dust, damage,paths, obstacles, borders).
Lightweight design
The use of aluminum alloy, self-developed profiles and other lightweight materials, reasonable structural design, so that the fuselage lighter, higher strength.
Ultra-high compatibility
The machine has dual-axis adaptive rotation, detection and correction functions, which can adapt to complex scenes.
Automatic monitoring system for rainfall and snow
The automatic rainfall and snow monitoring system is a system that monitors changes in real time through sensors of rainfall and snow, sends data to the data center through collection and transmission, and processes and analyzes the data.
Operating ambient temperature:-20℃~60℃
Size:4950*430*310mm (The Length can be customized)
Power supply: Self-powered of Solar +Built-in battery
Weight: 50KG
(48V 30AH)
Working slope:0~45°
Water supply mode: Connect water pipes(matching)
Overcome obstacles: 5cm
Cleaning material: Nylon roller brush
Speed of travel: 16m/min
Control mode: Mobile phone APP /Web
Cleaning efficiency:4000 ㎡ /h
Power-off protection: Low battery reminder
Fixed mode: guide pulley
Application scenario: Centralized solar panel power station
Time of endurance:2.5H/one battery
Water consumption: Dry cleaning and water washing
Rated power:550W
Waterproofing grade: IP65
Mode of travel: Electric machine+Road wheel
Cleaning components: Yes, roller brush
Camera: Yes
PREPONDERANCES:
Visual inspection systemIntelligent visual recognition (recognition types: dust, damage,paths, obstacles, borders).
Lightweight design
The use of aluminum alloy, self-developed profiles and other lightweight materials, reasonable structural design, so that the fuselage lighter, higher strength.
Ultra-high compatibility
The machine has dual-axis adaptive rotation, detection and correction functions, which can adapt to complex scenes.
Automatic monitoring system for rainfall and snow
The automatic rainfall and snow monitoring system is a system that monitors changes in real time through sensors of rainfall and snow, sends data to the data center through collection and transmission, and processes and analyzes the data.
Operating ambient temperature:-20℃~60℃
Size:4950*430*310mm (The Length can be customized)
Power supply: Self-powered of Solar +Built-in battery
Weight: 50KG
(48V 30AH)
Working slope:0~45°
Water supply mode: Connect water pipes(matching)
Overcome obstacles: 5cm
Cleaning material: Nylon roller brush
Speed of travel: 16m/min
Control mode: Mobile phone APP /Web
Cleaning efficiency:4000 ㎡ /h
Power-off protection: Low battery reminder
Fixed mode: guide pulley
Application scenario: Centralized solar panel power station
Time of endurance:2.5H/one battery
Water consumption: Dry cleaning and water washing
Rated power:550W
Waterproofing grade: IP65
Mode of travel: Electric machine+Road wheel
Cleaning components: Yes, roller brush
Camera: Yes
