Description

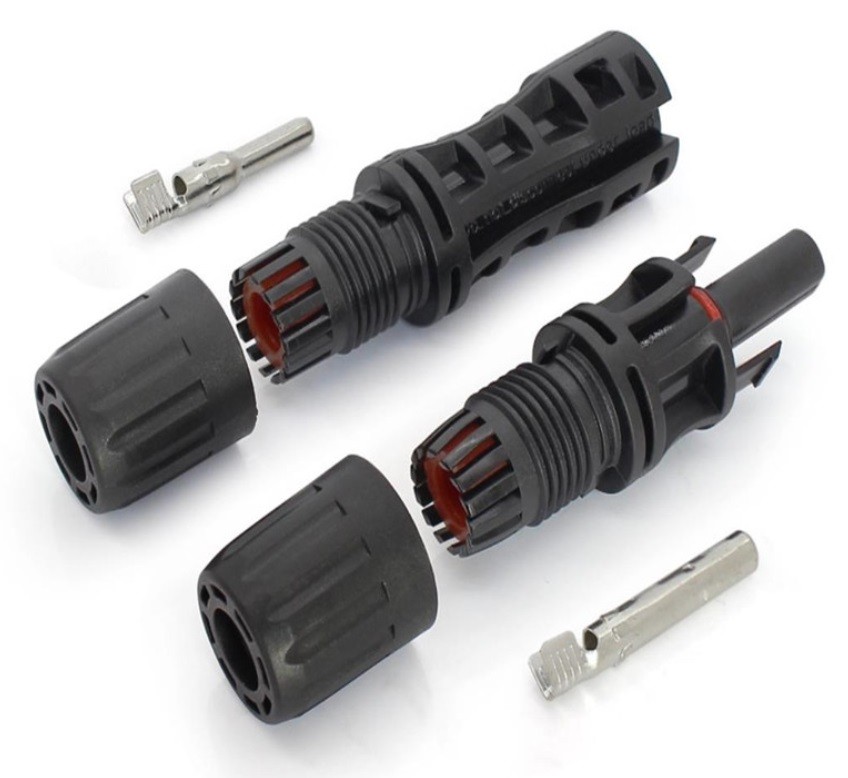

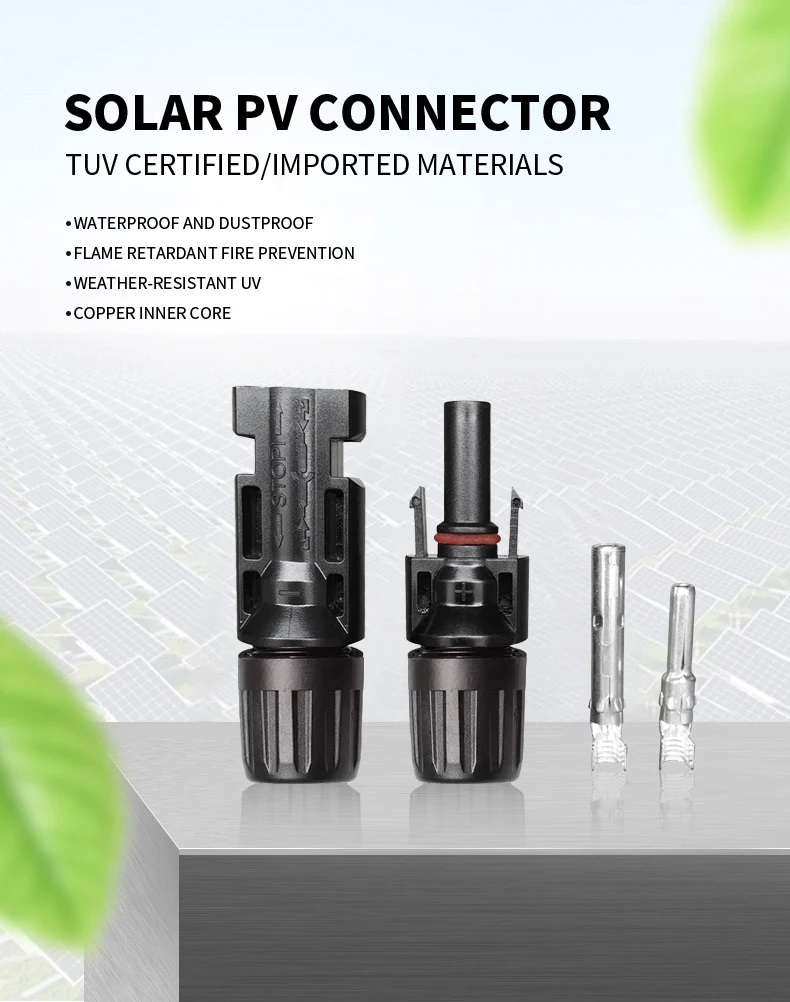

1500V MC4 connector for 2.5mm2~6mm2
Product No.:PV-C-1500
Used in solar photovoltaic power generation system, the connection between lines, such as: the output power of the battery panel is connected to the combiner box; and then connected to the inverter or controller, power distribution cabinet and other equipment.

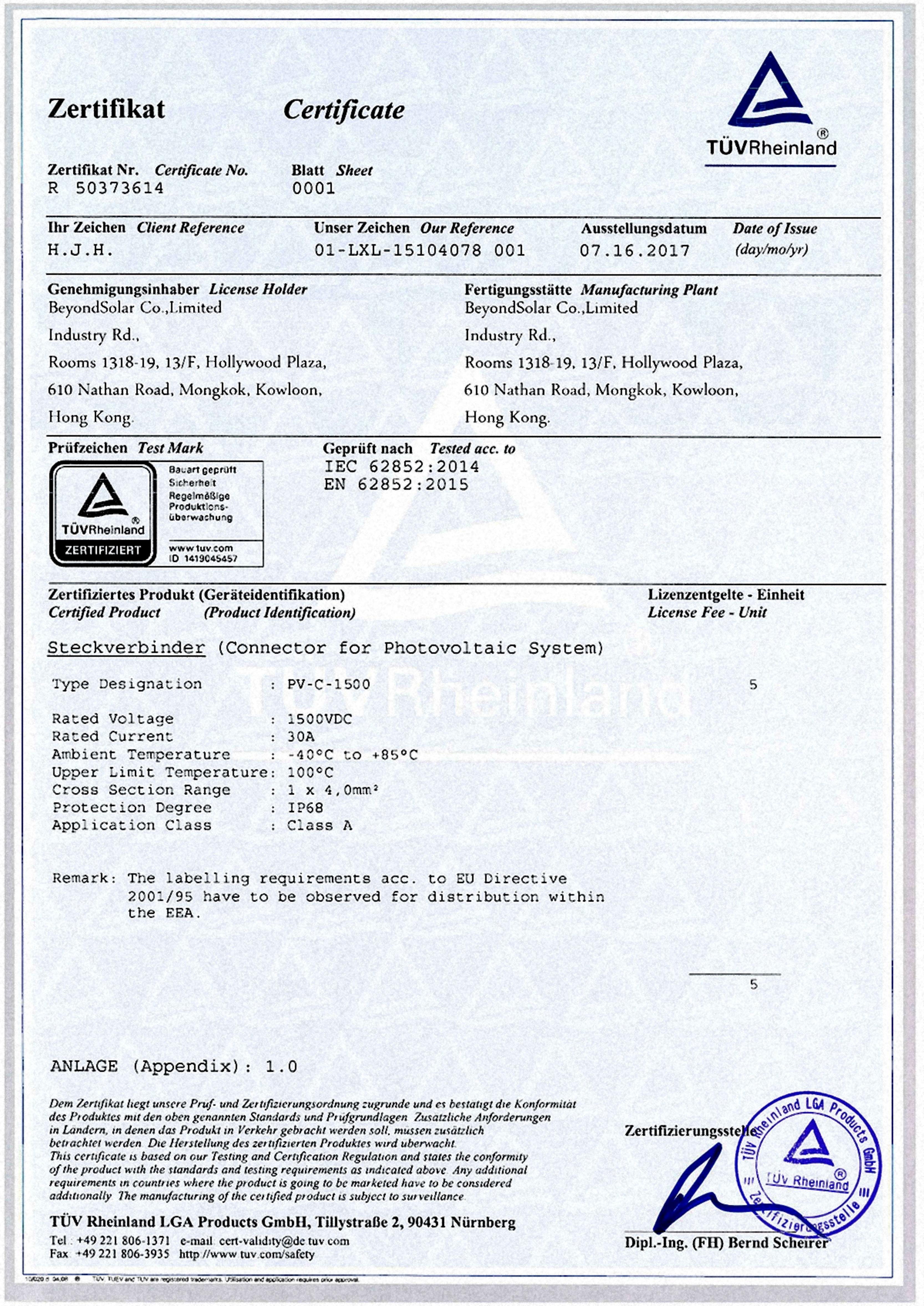

Low resistance, high temperature resistance, UV resistance, suitable for long-term outdoor work. Simple and convenient to use, detachable, certified by TUV authority.
| Housing Material: | PPO/PC(nut) |
| Contact material: | Copper with Tin-plated |
| Waterproof: | IP67 |
| Rated Voltage: | 1500V DC(TUV) |
| Current: | 30A |
| Temperature Range: | -40˚C~+90˚C |
| Flame Class: | UL94V-0 |
| Resistance: | ≤0.5mΩ |
| Pin Dimension: | 4.0mm |
| Pollution Degree: | 2 |
| Protection Class: | Class II |
| Withdrawal Force: | >50N |
| For cable size: | 2.5mm2 ~ 6mm2 |
