Description

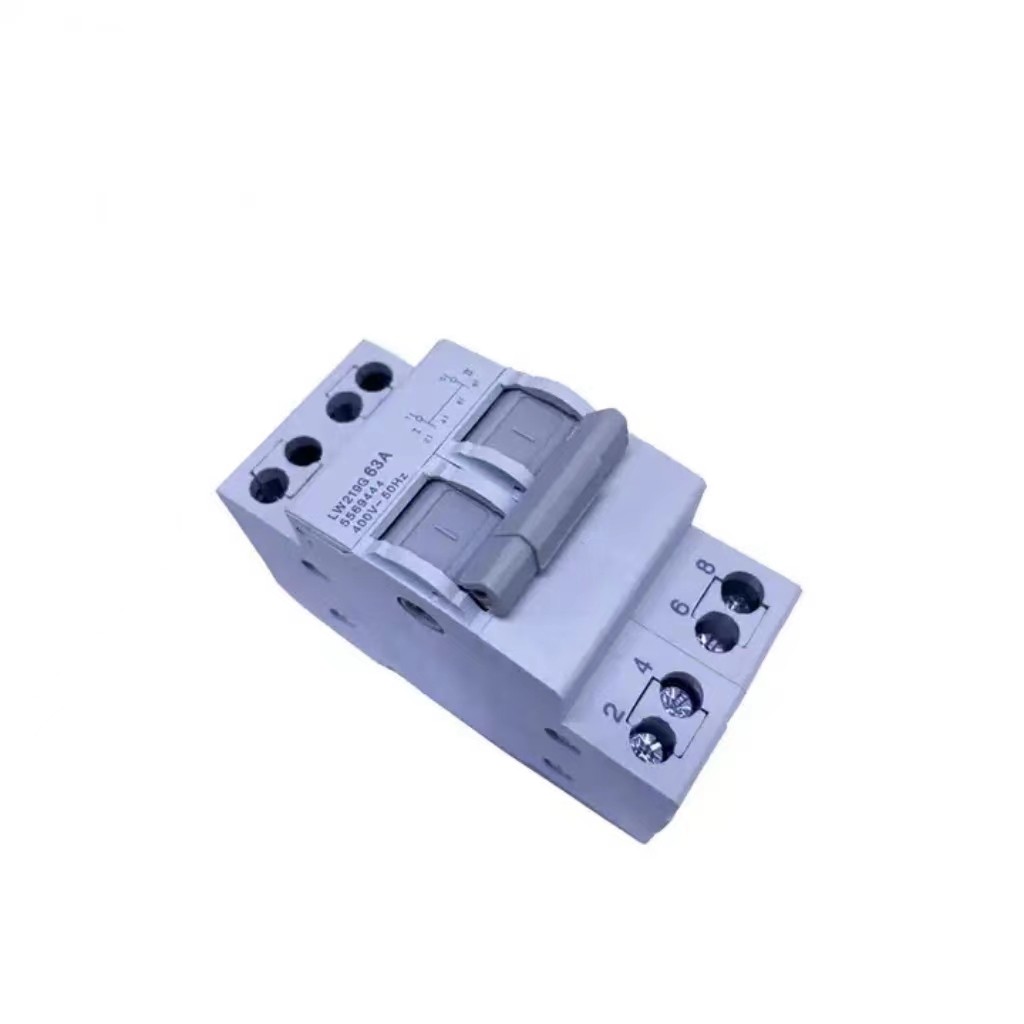

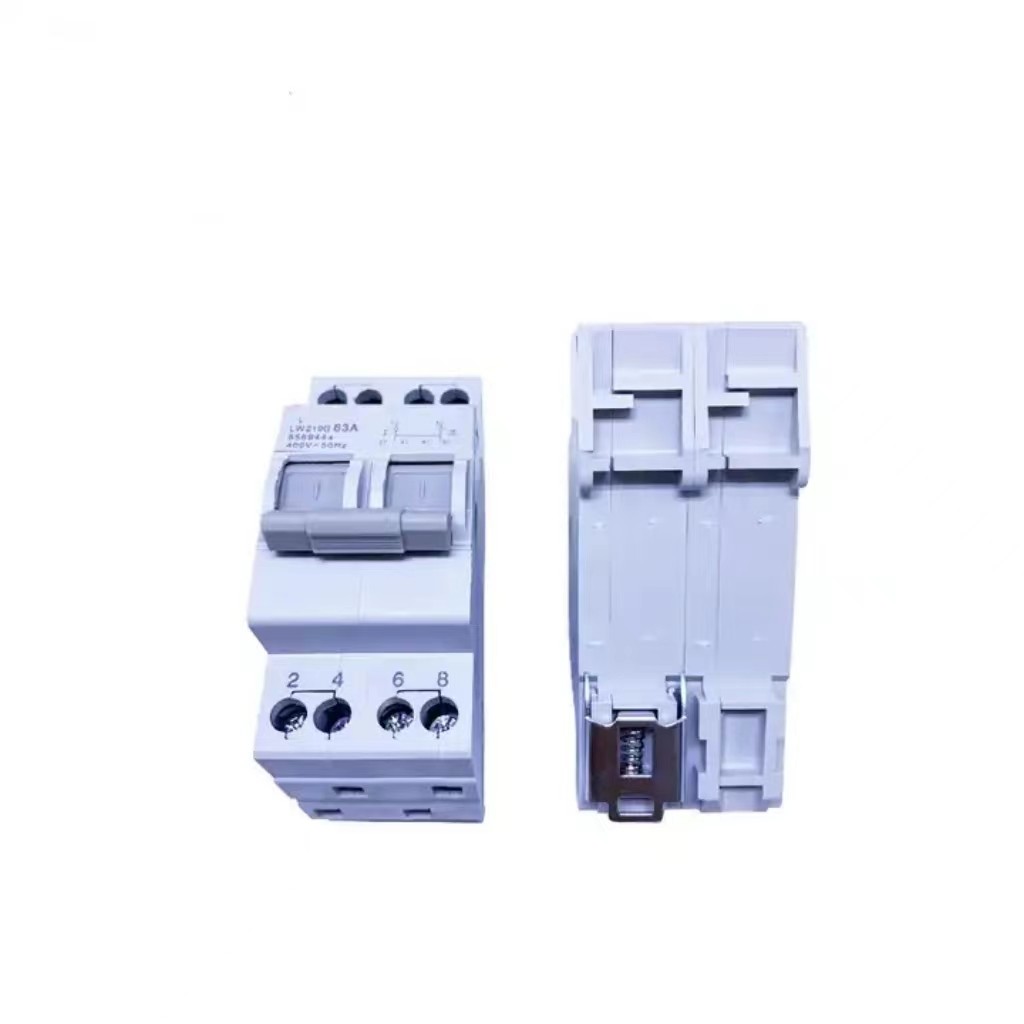

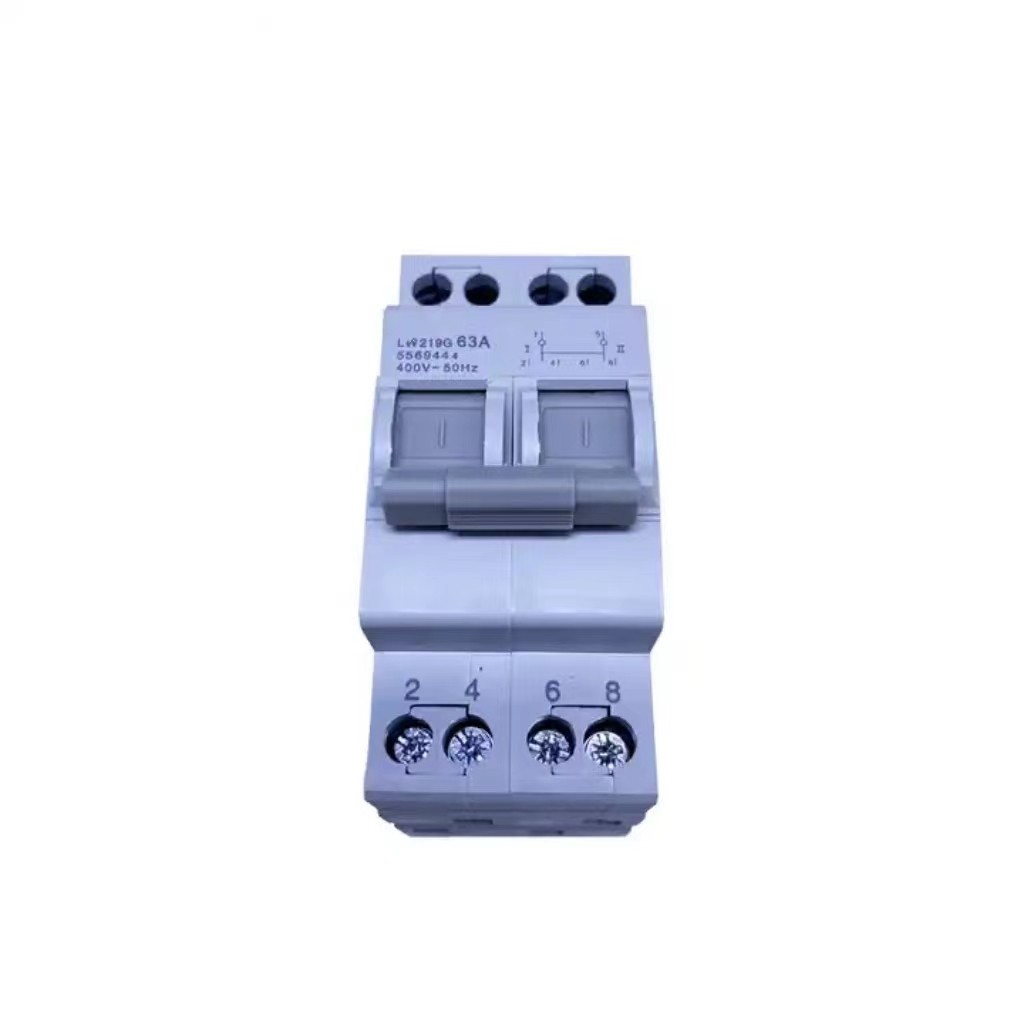

dual power Automatic Transfer Switch 2Poles 63Amp Modular manual Changeover Switch
Modular switch is a three-block switch, control circuit current supply switch, the middle is neutral, up and down for conversion circuit operation . Its can switch on, load and break the circuit under normal conditions, using as switch disconnectors.
Overall and Mounting dimension
Modular switch is a three-block switch, control circuit current supply switch, the middle is neutral, up and down for conversion circuit operation . Its can switch on, load and break the circuit under normal conditions, using as switch disconnectors.
Specification
Standard
IEC/EN60947-3
Rated voltage
240/415V
Rated current
16A 20A 25A 32A 40A 63A
Rated frequency
50/60Hz
Number of poles
1，2，3，4P
Contact form
1-0-2
Electrical Life
1500
Mechanical Life
8500
Protection degree
IP20
Ambient Temperature
-5℃...40℃
Terminal/Cable size
16

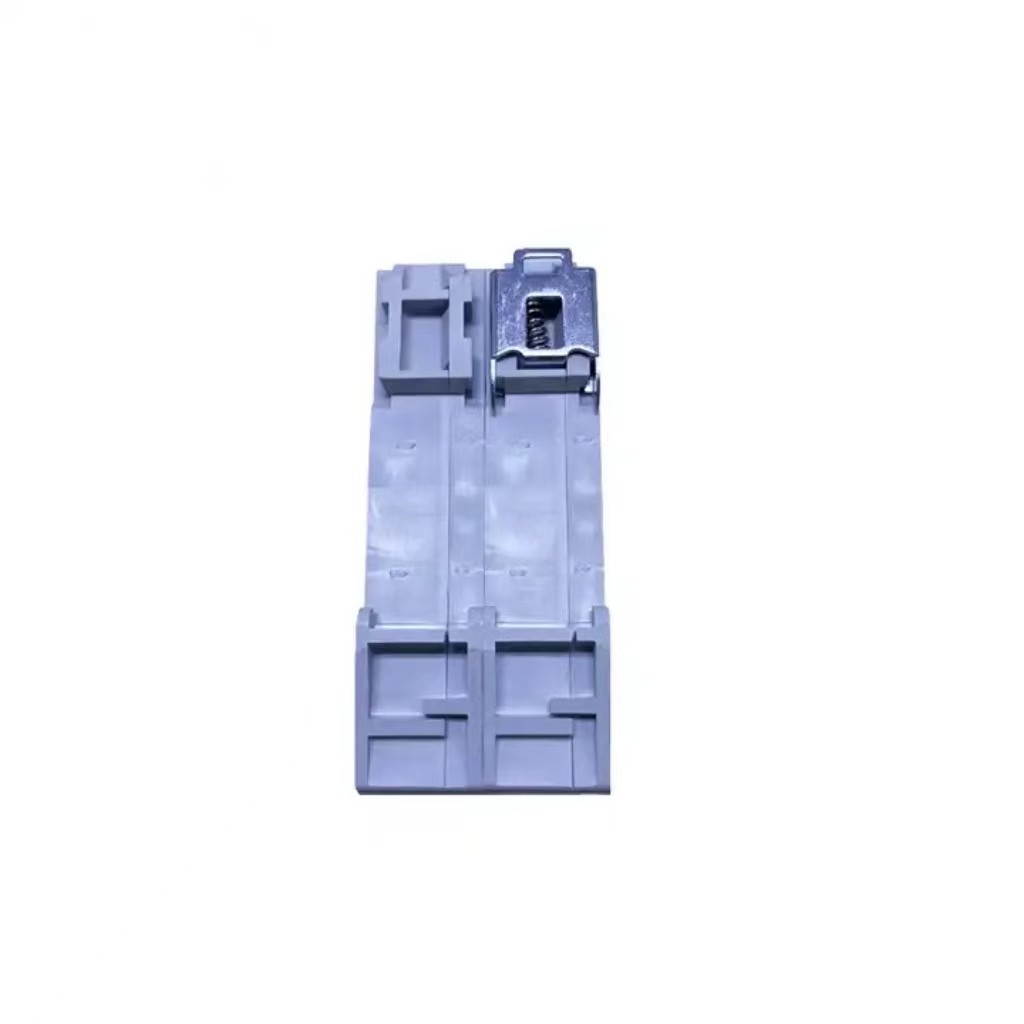

Mounting
On DIN rail EN60715(35mm) by means of fast clip devicefast
Overall and Mounting dimension

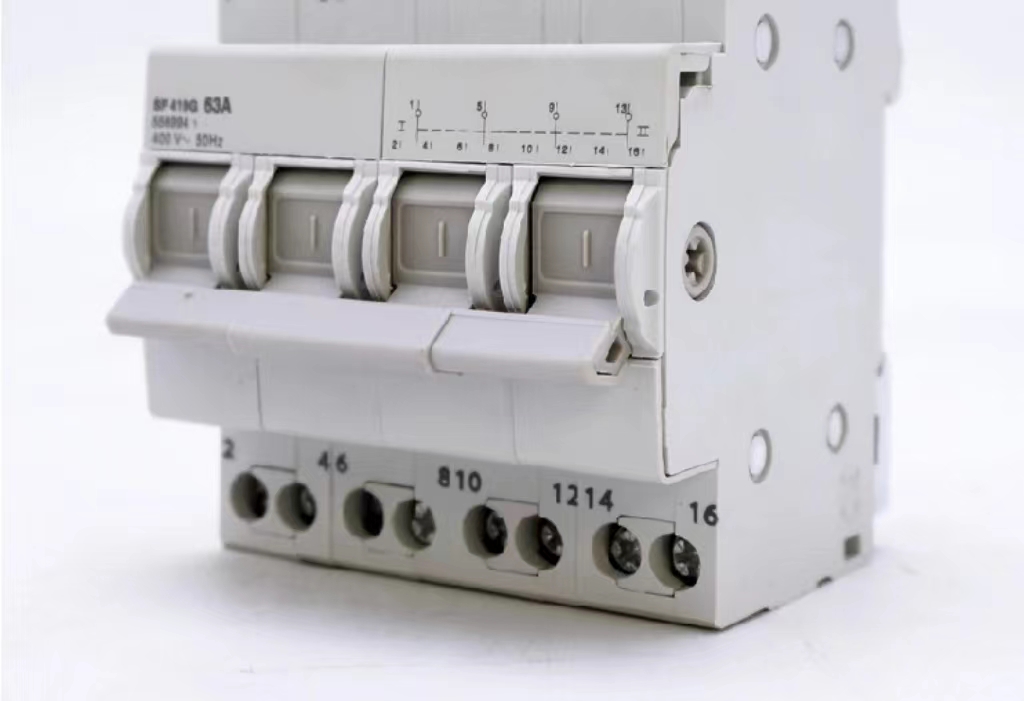

Product Overviews
