  • 5pcs/set ABS Solar Panel Mounting bracket
  • 5pcs/set ABS Solar Panel Mounting bracket
5pcs/set ABS Solar Panel Mounting bracket5pcs/set ABS Solar Panel Mounting bracket

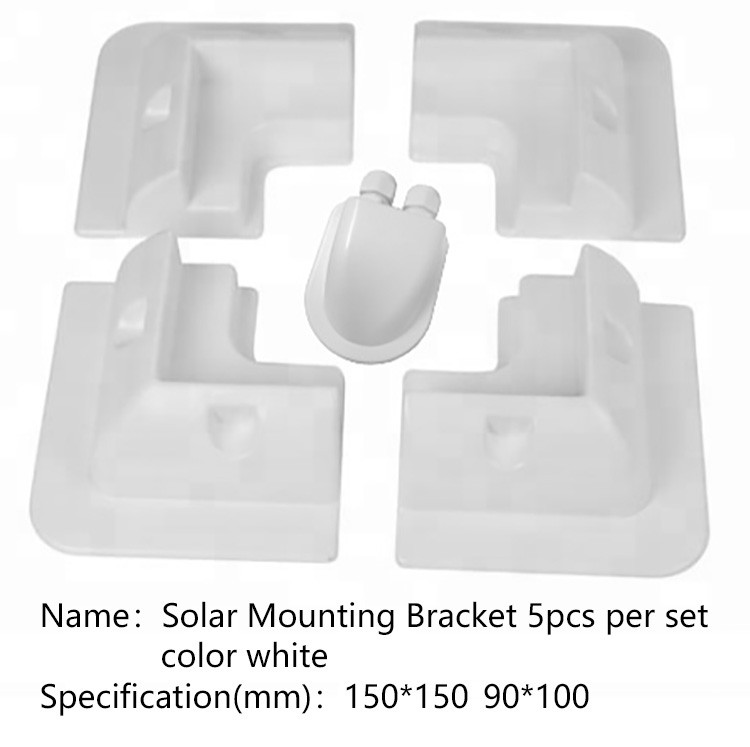

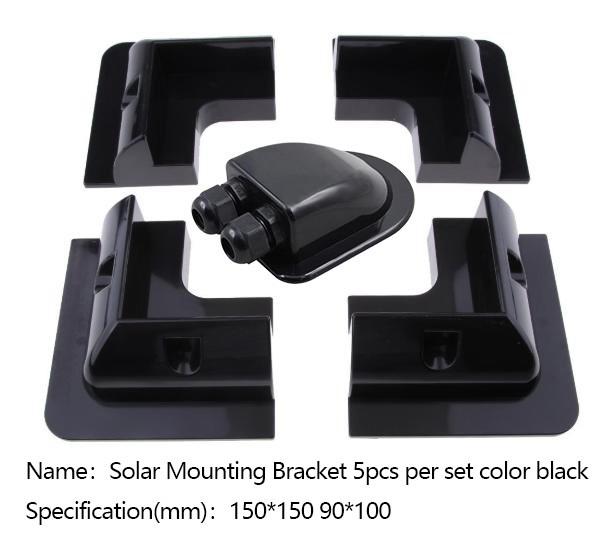

5pcs/set ABS Solar Panel Mounting bracket

  • Product Item:PV-SB-5W/B
  • Material:ABS
  • Application:Car&house roof
  • ABS bracket solar panel mounting , solar mounting bracket for RV boat
    Inquiry Send Email

    Description

    ABS bracket solar panel mounting for RV boat



    Description


    High Quality ABS White Solar Panel Mounting Brackets Manufacturer

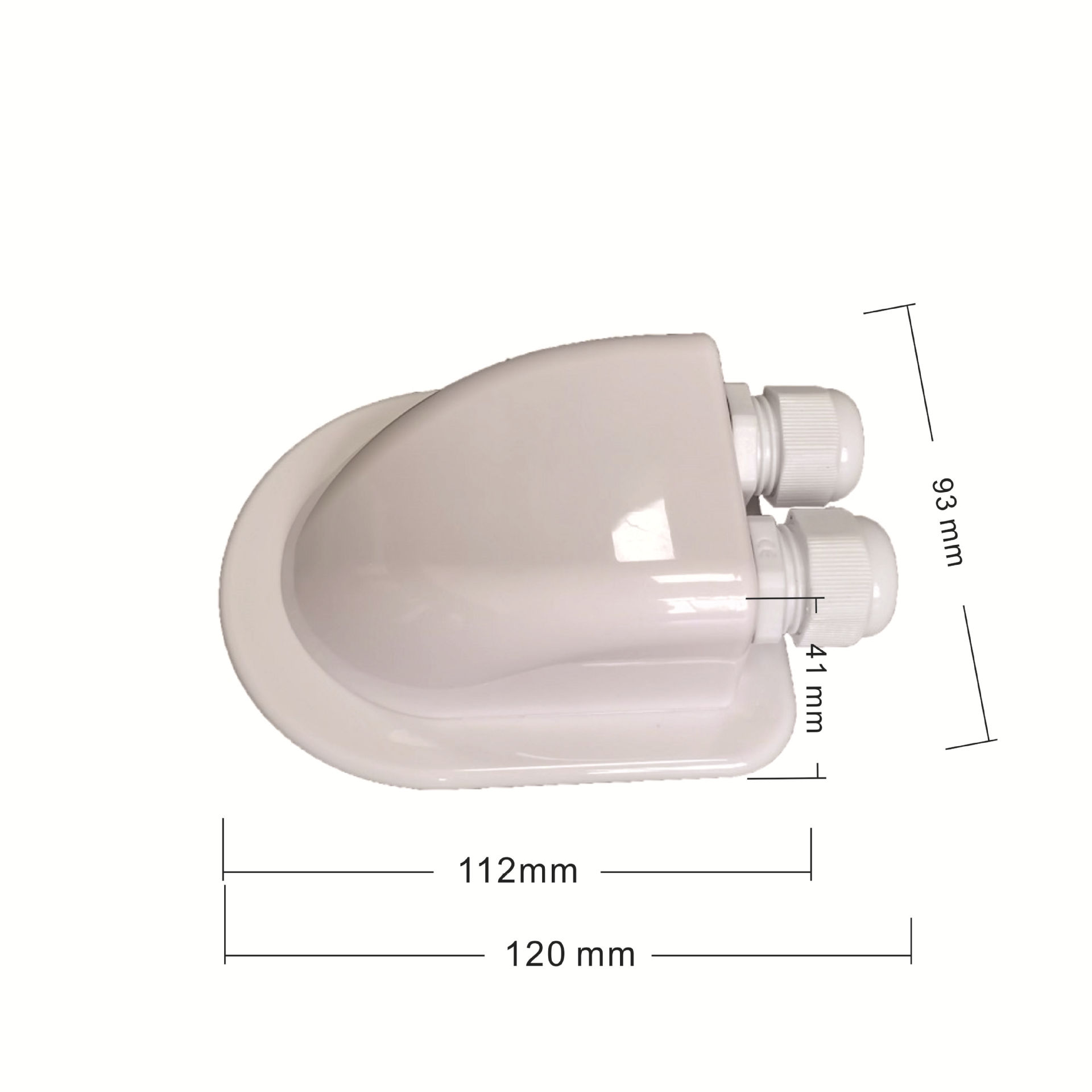

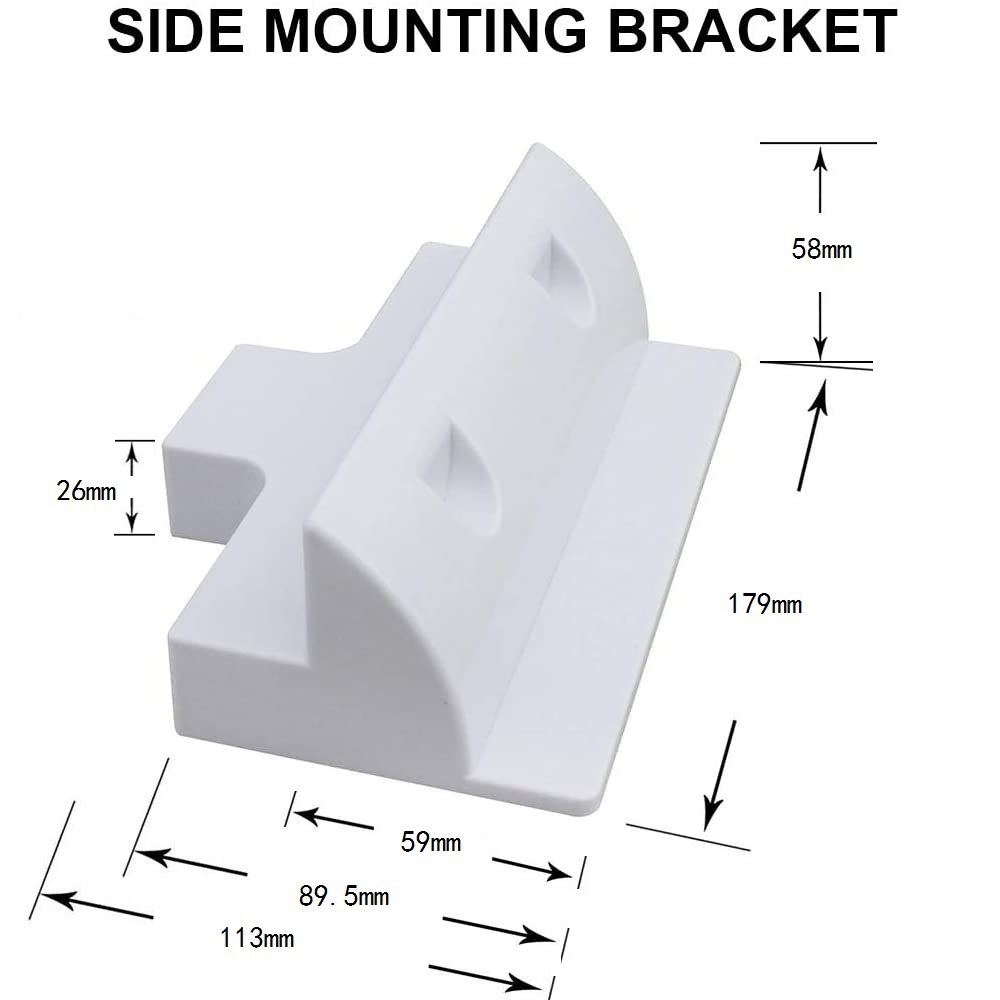

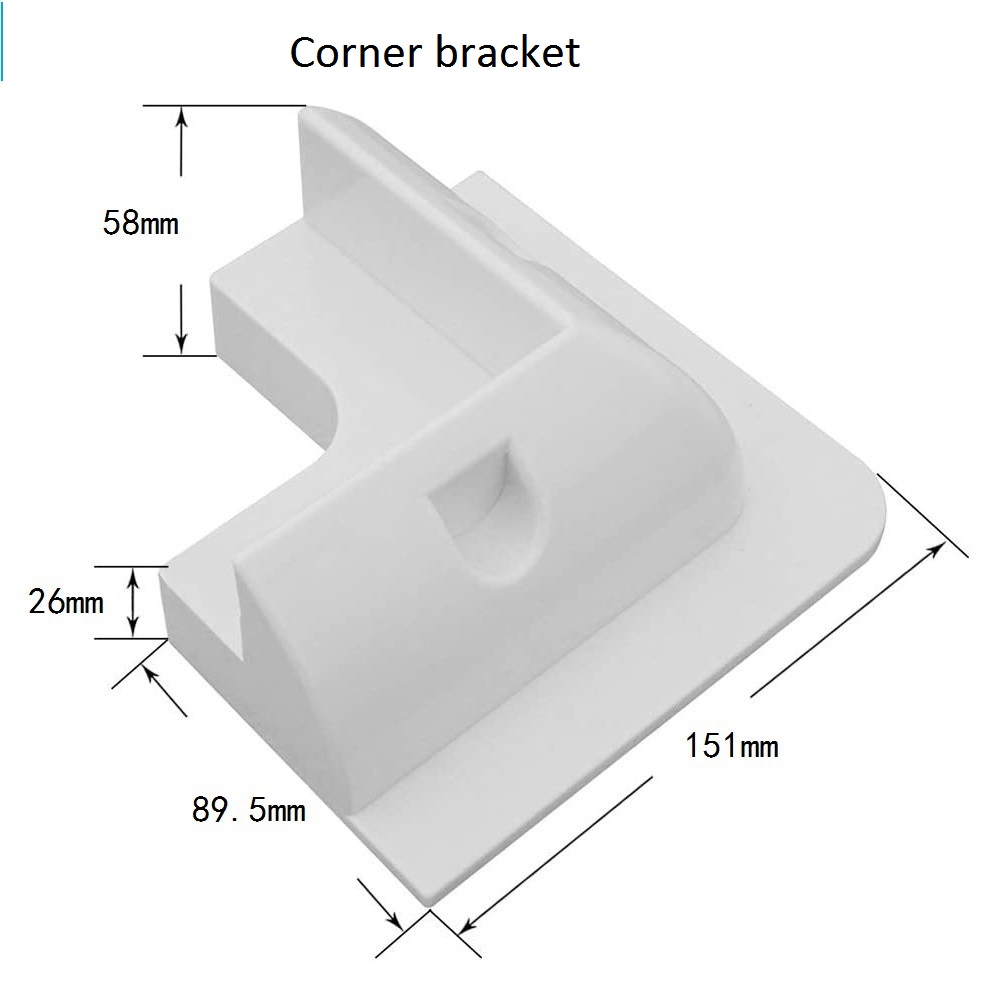

    plastic corner mounting brackets includes side mounts and a double entry Cable

    Gland for a range fixing rigid-frames solar panels to rv,vehicles, boats, flat roofs and a

    range of other applications. Support panels up to 360w.


    Material: Plastic ABS / UV resistance.
    Colour: White/Black.

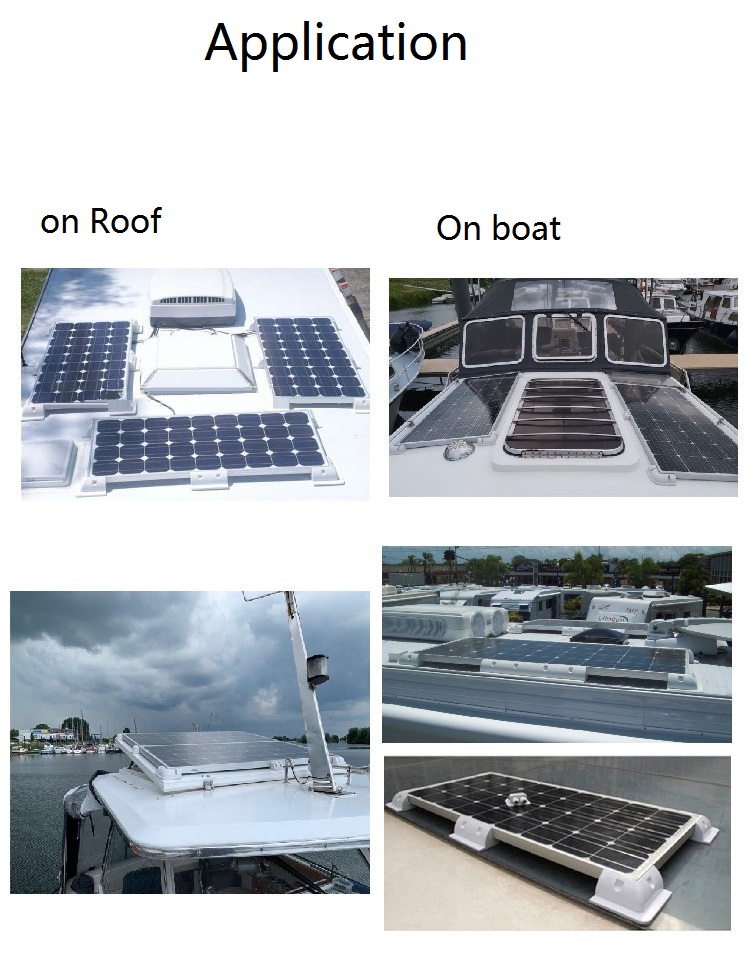

    Application:

    Flat Roof, RV, Caravan, Ship, Yacht & Motorhome.


    Feature:
    1.No need for drilling-Ideal for bonding to the roof.
    2.Strong and secure fitting for small and larger solar panels
    3.Great for motorhomes, campervans, caravans, lorries, buses or other flat surfaces
    4.Can also be used on flat roofs of buildings, sheds, garages etc.
    5.Suitable for a range of rigid-framed solar panels

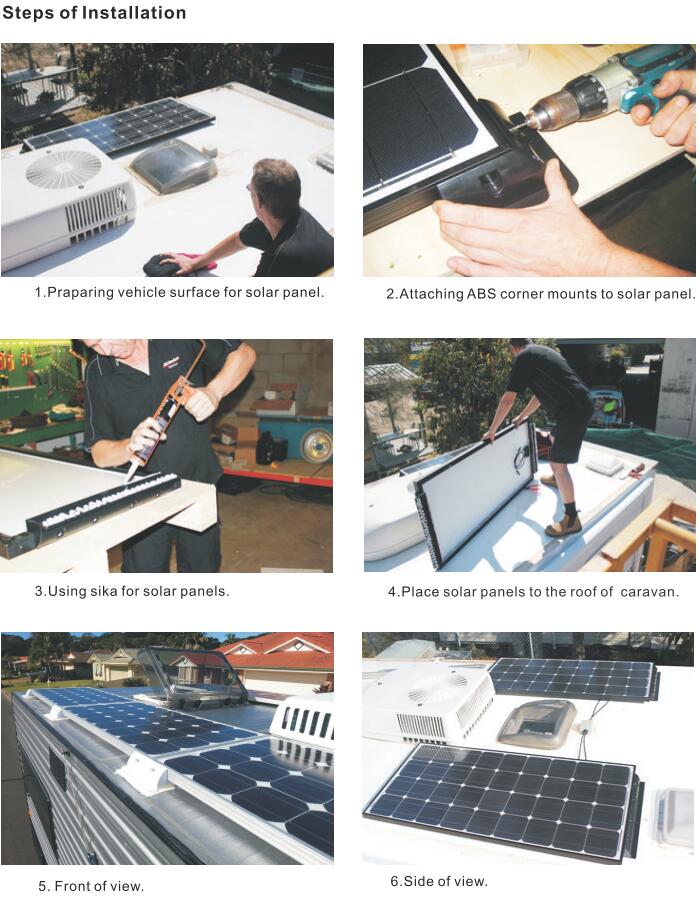

    Installation:


    The brackets are first be screwed or bolted to the solar module using suitable stainless steel self-tapping screws.

    You will need to drill a clearance hole in the ABS brackets at the appropriate recessed ports.

    Once the brackets are attached to the panel the whole can be bonded to the roof surface




    Packing




    Contact US! Free sample can be deliveried in 7days!

    Sales

    Emial:molly.l@beyondsolar.cn

    whatsapp/wechat/mob:+86-18576852516

    Skype:molly.l@beyondsolar.cn

    We will Reply in 1 hour



    Inquiry Us
