Photovoltaic optimizer 600W

  • Product Item:SUNWIN-600W
  • Max Input Power:600W
  • Max Operating volt:7-60V
  • Max input currernt:16A
  • CE/EMC/FCC APPROAL
  • Solar energy power optimizer , Europe standard 600w optimizer
    Inquiry Send Email

    Description

    Solar optimizer 600W


    Description:

    More power starts on the roof with Solar Power Optimizers. By mitigating shading, preventing clipping, and decreasing mismatch loss, power optimizers help get more energy from each panel while allowing panel level monitoring for more control and flexibility.

    Function:


    • Increase the efficiency of solar panel power generation by 10% ~ 30%.
    • Highly compatible with inverters
    • Improve the power generation efficiency of photovoltaic modules when they are affected by shadow problems.

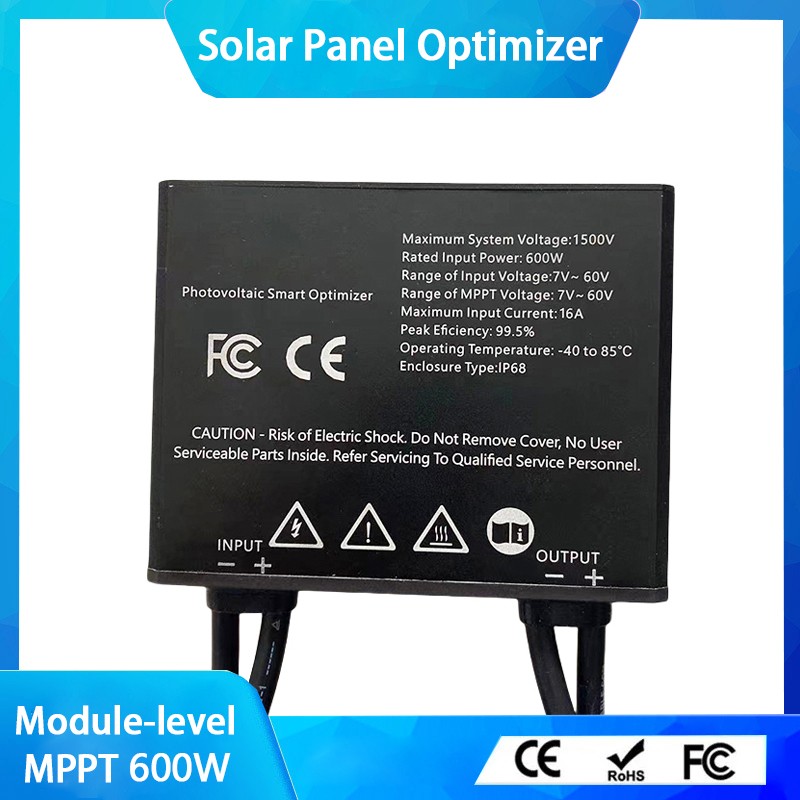

    Specification

    Brand NONE Place of Origin China Product name Solar Power Optimizer
    Color Black Maximum System Voltage 1500Vdc Rated Input Power 600W
    Range of Input Voltage 7V~60V Range of MPPT Voltage 7V~60V Maximum Input Current 16A
    Peak Eficiency 99.50% Operating Temperature -40 to 85C Enclosure Type IP68





    Packing detail:

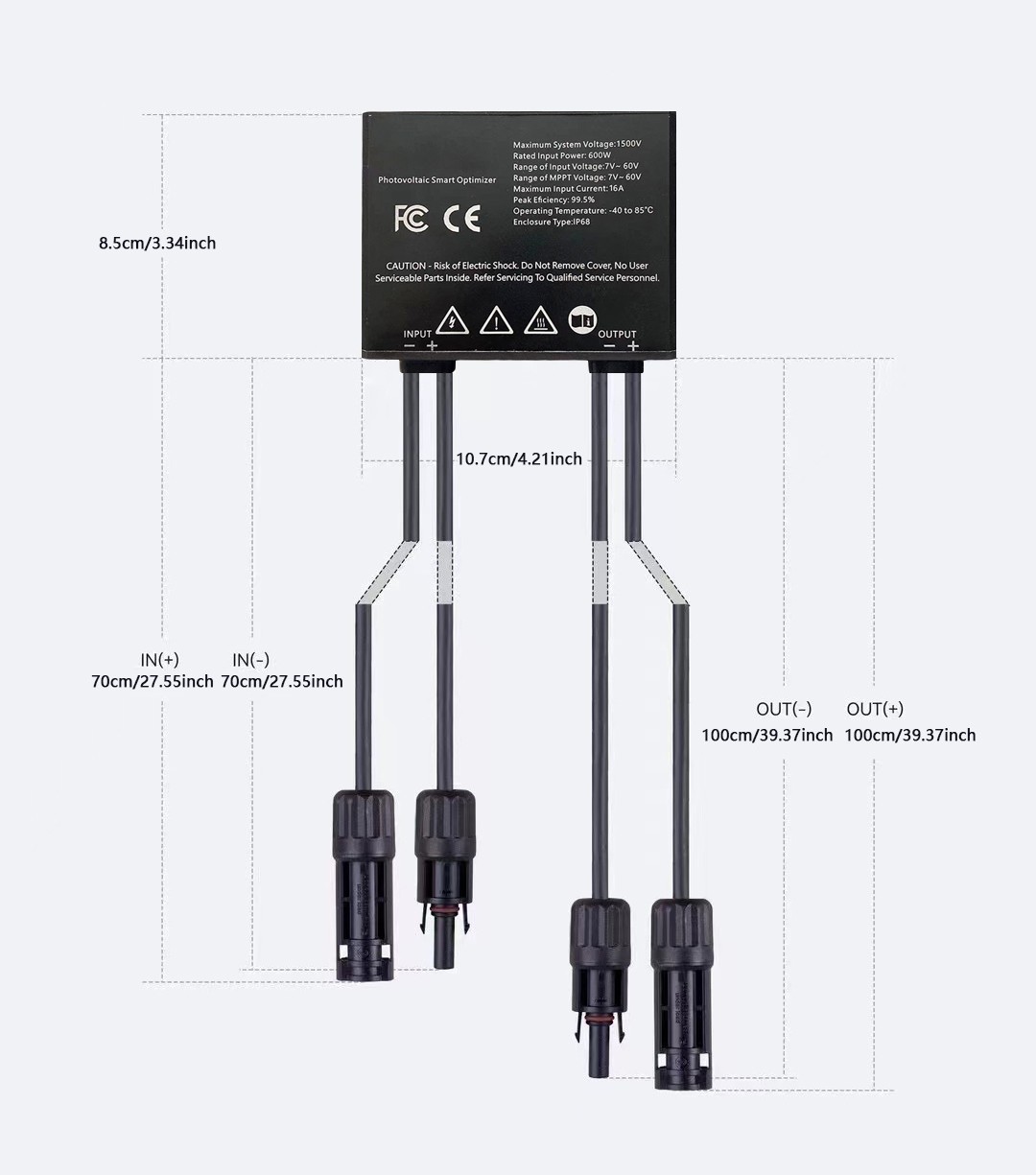

    Each unit size:360*130*40mm    weight:0.7kg
    Package size:390*390*290mm

    20unit/carton/15kg
