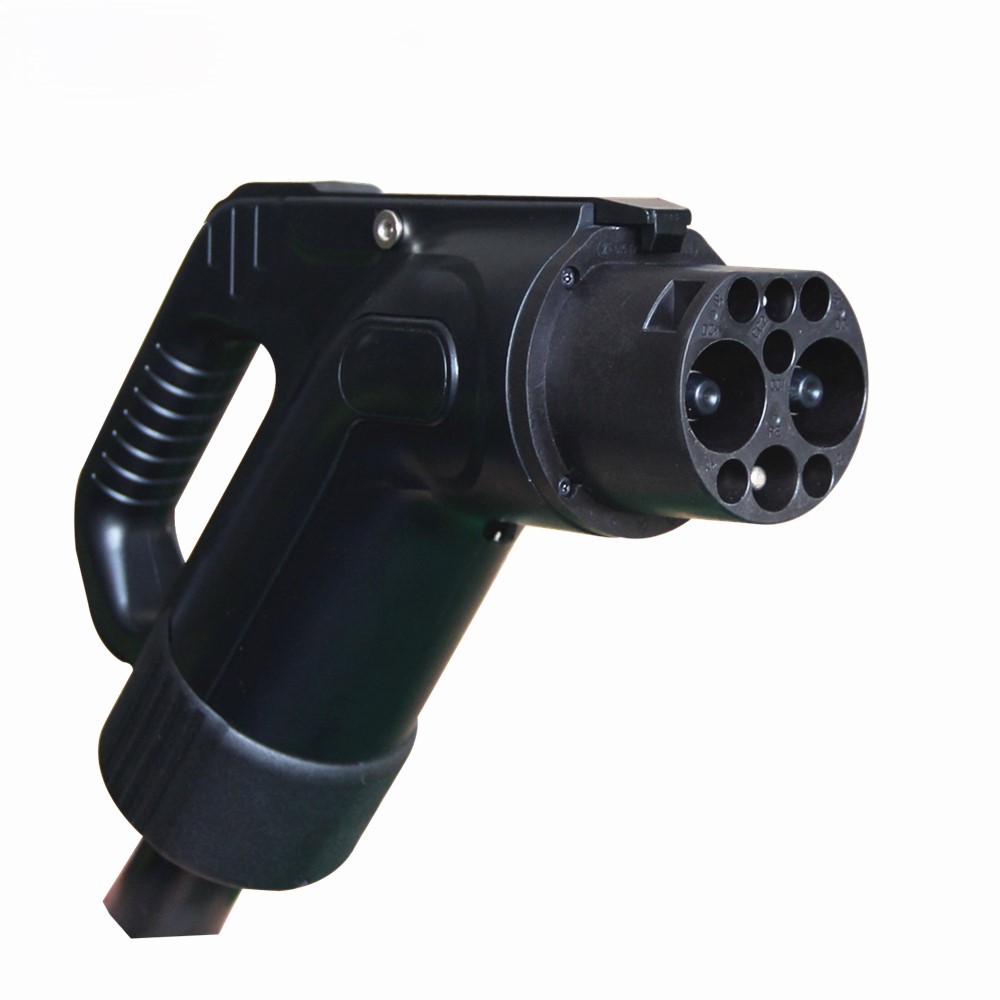

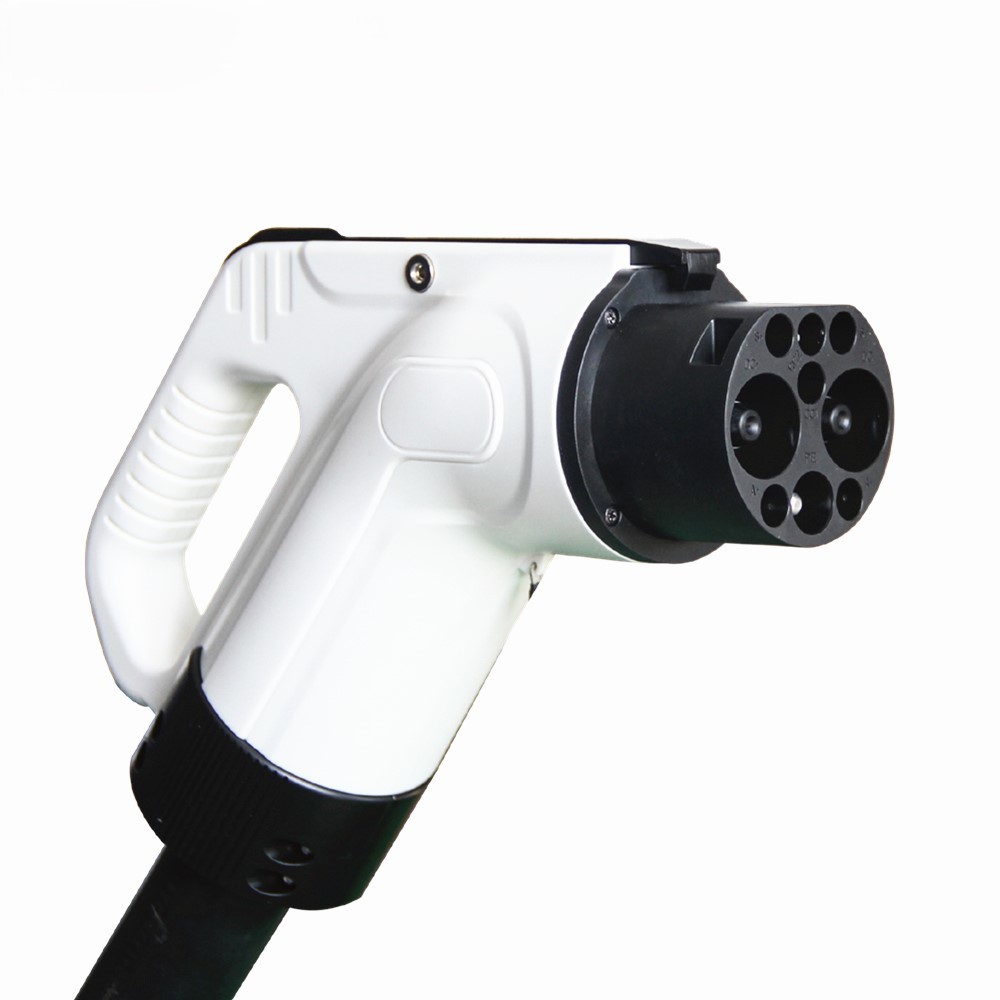

GBT GUN EV Plug DC Fast Charging Connector 250A

Product Item：MIDA-GBT-EV80P MIDA-GBT-EV150P MIDA-GBT-EV200P MID

Rated current : 80A 125A 200A 250A

Operating voltage : 750V/1000V DC

Insulation resistance : >2000MΩ (DC1000V)

Terminal temperature rise :<50K

Features

1. Meet GB/T 20234.2-2015 regulations and requirements

2. Nice appearance，hand-held ergonomic design，easy plug

3. Safety pins insulated head design to prevent accidental diirecrt contact with staff

4. Excellent protection performance,protection grade IP55(working condition)

Mechanical properties

1. Mechanical life : no-load plug in/pull out＞10000 times

2. Impat of external force: can afford 1m drop and 2t vehicle run over pressure

Electrical Performance

1. Rated current：80A/125A/200A/250A

2. Operation voltage： 750V

3. Insulation resistance：＞2000MΩ（DC500V）

4. Terminal temperature rise：＜50K

5. Withstand Voltage ：5000V

6. Contact Resistance： 0.5mΩ Max

Applied Materials

1. Case Material: Thermoplastic,flame retardant grade UL94 V-0

2. Pin：Copper alloy,silver + thermoplastic on the top

Environmental performance

1. Operating temperature：-30℃～+50℃
