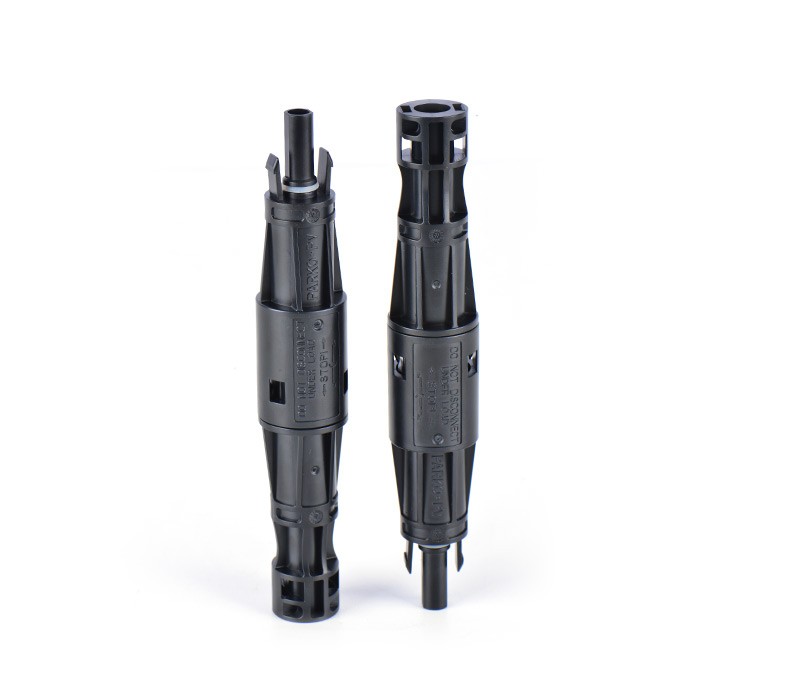

1500V DC Fuse Connector

Description

1500V DC Fuse Connector

Product No:PK15-FU070B

Advantage:

1. The connector has high voltage current resistance; For 1500V photovoltaic system protection;
2. Good impact resistance and aging resistance; Adopt imported PPO raw materials;
3. The contact resistance is reduced to 0.50 mΩ;
4. Innovative sealed waterproof design, in line with IP67 waterproof requirements;
5. Ambient temperature range -40℃~ +85℃, excellent performance, UV resistance, insulation, suitable for long-term outdoor use;

6. Good safety performance, best-selling European and American markets;

7. Easy to install, easy to pull out, stable self-locking structure;
8. Compatible with MC4, EVO2, QC4, etc. Photovoltaic connectors.

Specificaation:

1. Insulation material :Sabic PPO
2. Security level: Level 2
3. Rated current :30A(no fuse)
4. Material RTI: 110℃
5. Rated voltage :1500V DC
6. Withdrawal force :≥300 n
7. Test voltage :6 kv (50 hz.1min)
8. Insertion force :≤50 n
9. Contact resistance :≤0.5Ω
10. Ambient temperature range :-40℃~+85℃
11. Contact material: copper. tinning
12. Applicable wire size range :2.5mm²~6mm²(14 ~ 10 awg)
13. Waterproof rating :IP67
14. Pin dimension: ø4.0mm
15. Flame category :UL94-V0
16. Standard :IEC 62852
17. Fuse specifications: 3A.5A.8A.10A, 12A.15A.20A.25A.30A
18. Standard :10 * 85 mm

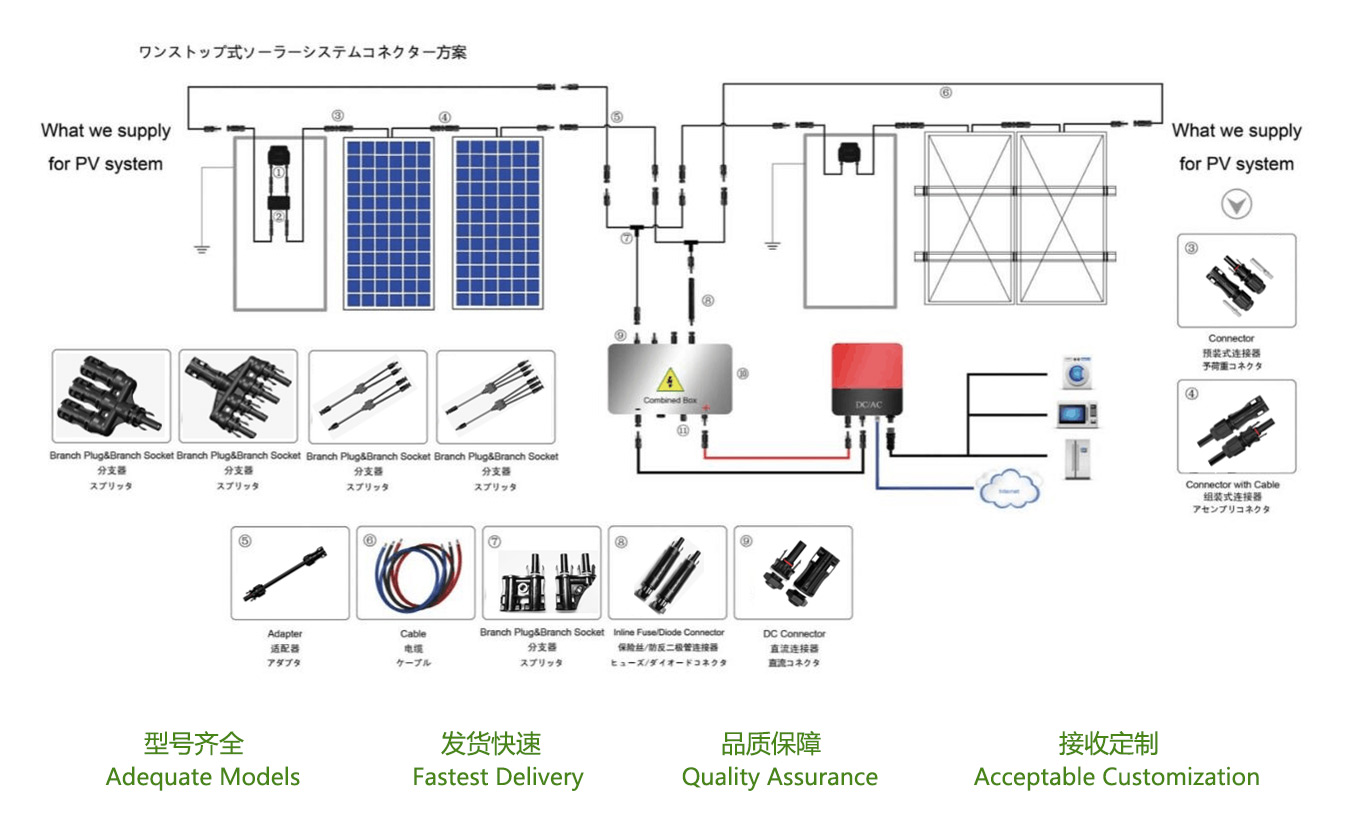

MC4 Application

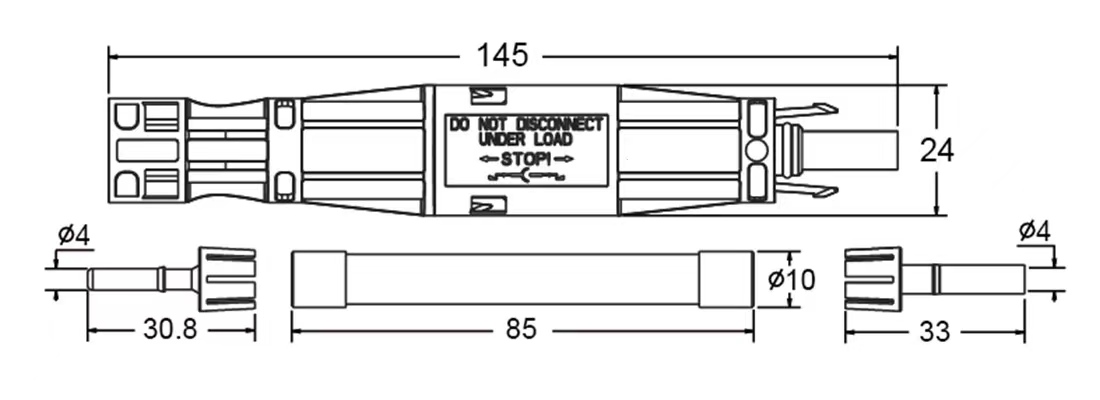

MC4 Size
