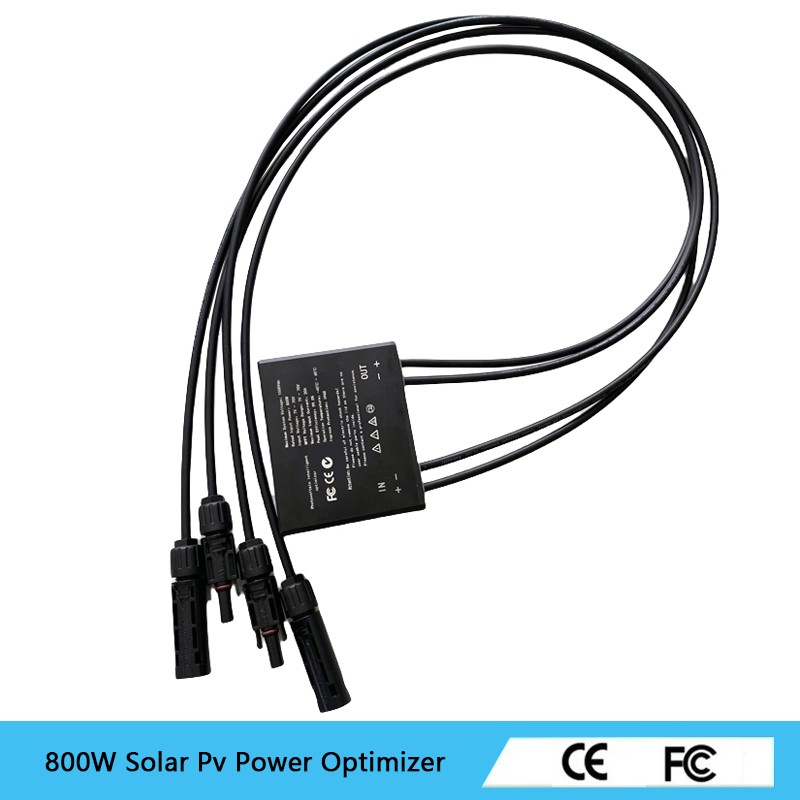

Solar optimizer 800W
Description:

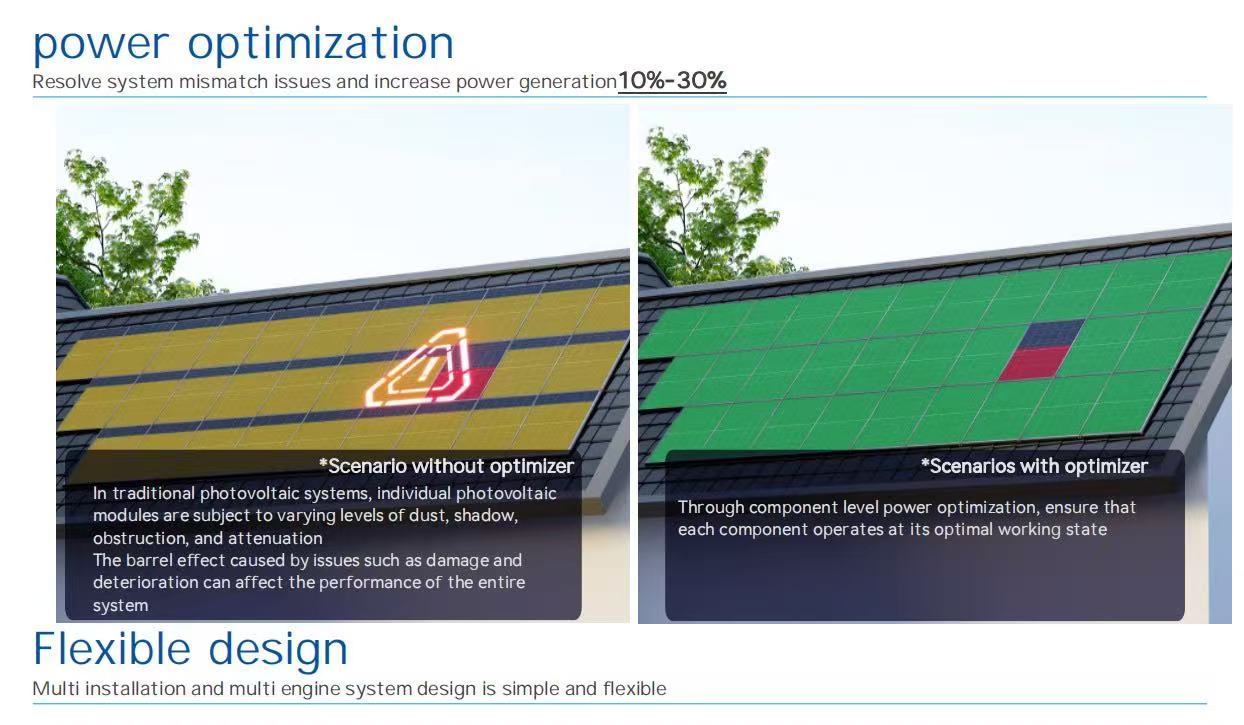

More power starts on the roof with Solar Power Optimizers. By mitigating shading, preventing clipping, and decreasing mismatch loss, power optimizers help get more energy from each panel while allowing panel level monitoring for more control and flexibility.
Function:
- Increase the efficiency of solar panel power generation by 10% ~ 30%.
- Highly compatible with inverters

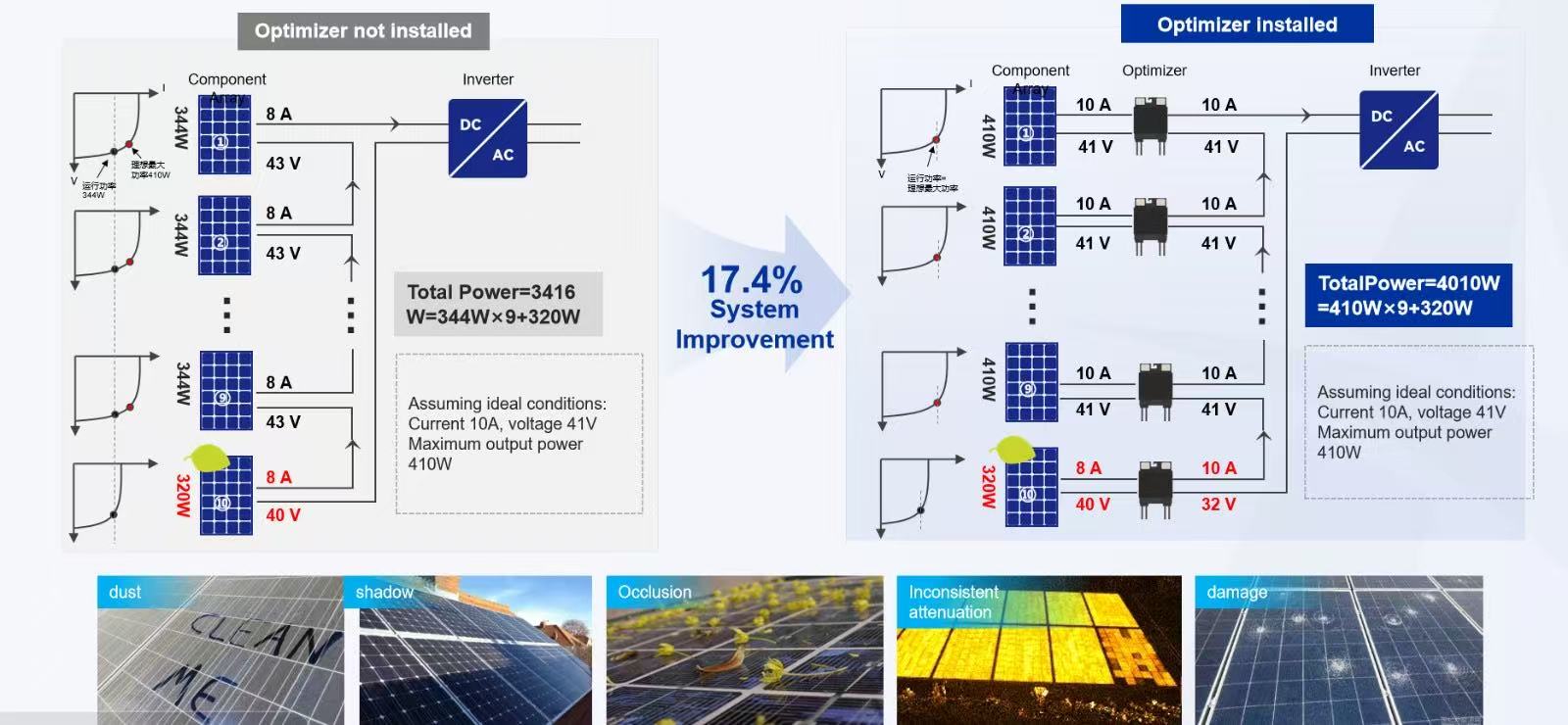

- Improve the power generation efficiency of photovoltaic modules when they are affected by shadow problems.

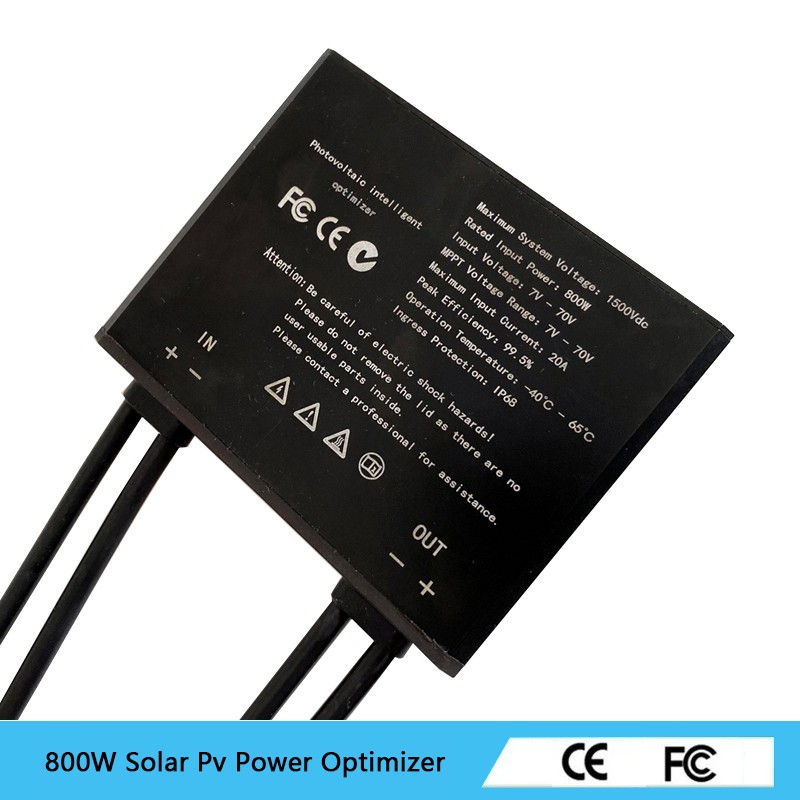

Specification
Brand NONE
Place of Origin China
Product name Solar Power Optimizer
Color Black
Maximum System Voltage 1500Vdc
Rated Input Power 800W
Range of Input Voltage 7V~60V
Range of MPPT Voltage 7V~70V
Maximum Input Current 20A
Peak Eficiency 99.50%
Operating Temperature -40 to 85C
Enclosure Type IP68
Packing detail:
Each unit size:360*130*40mm weight:0.7kg
Package size:390*390*290mm
20unit/carton/15kg
